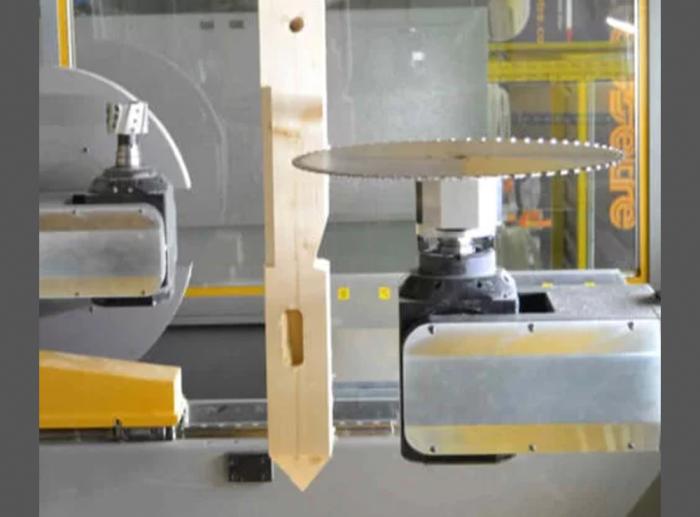

Working Area

The working area inside the cabin consists of 2 independent opposing operating units, one upper and one lower, complete with 5-axis milling heads in continuous interpolation and 12 kW electrospindles at 7000 rpm. The tool holder is HSK63F.

Loading Area

Large pre-loading area, designed to load one or more pieces with a maximum width of 1300 mm, which will then be managed by the infeed clamps.

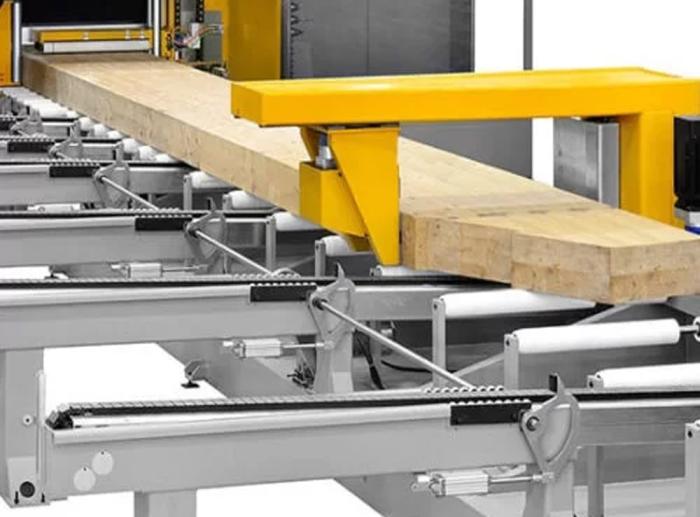

Outfeed Handling System

It consists of an automatic clamp managed by the NC, which allows the workpiece to be moved from the cabin to the exit zone for successive evacuation and storage in the unloading area. A second clamp is also installed in the unloading area to handle the part during processing.

Console

A control console complete with NC is installed on the machine structure using a hinge system, allowing it to be oriented in multiple positions.

A remote control panel is available complete with manual controls of the axis movement, START, STOP and RESET of the program.

An automatic printer interfacing with the NC generates the labels during unloading.

E-Live Software

The machine is controlled by the new Essetre E-Live Software, with three-dimensional display of the workpiece and relative processing. Its versatility allows it to interface with the most well-known Cad Cam programs specific for wooden structures.

The software is also equipped with a simulation and anti-collision system.
