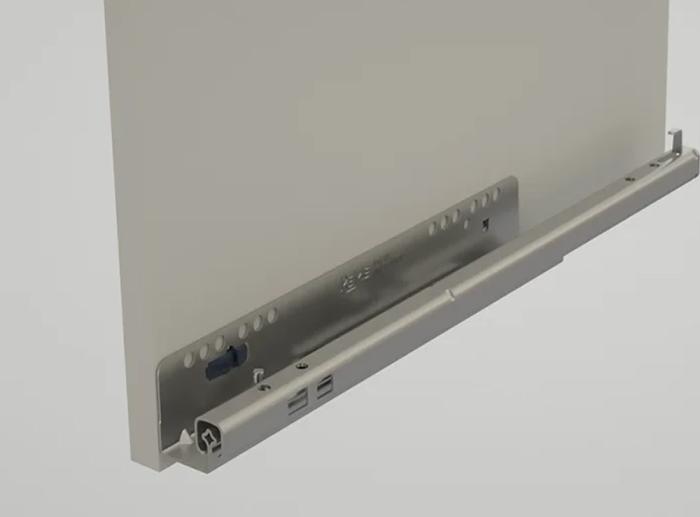

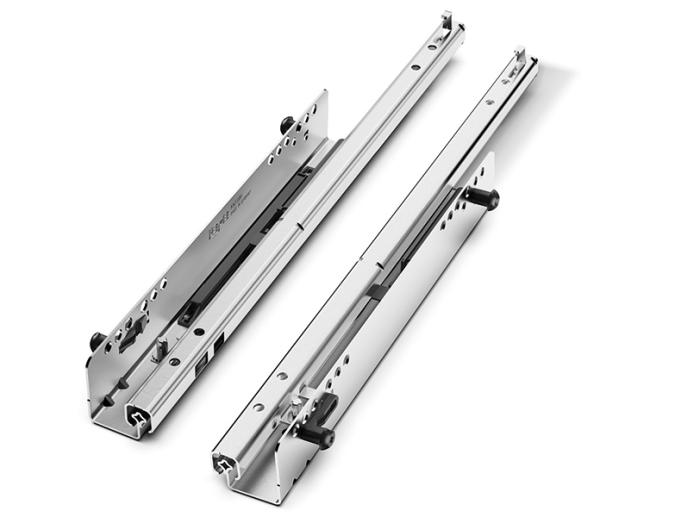

The Perfect Peanut is an invisible connector which allows the REME Drawer slide to be mounted quickly and easily without tools.
Made from reinforced plastic, which ensures a high clamping force when inserted into the cabinet wall, the Peanut head is specifically designed to maximise ease of assembly and joint strength.
The new type of couplings make both the mounting and dismounting of drawers quick and simple. All in one: safety catch, coupling and alignment. Available either as a 1D (height adjustment), or 2D (height and side adjustment). Fast, simple and toolless achieving of a perfect front panel alignment.
Key Benefits:
- Quick and easy installation with Peanut® technology
- Individual loading capacity up to 25kg
- Available with 1D or 2D coupling options
- Lengths from 250 - 550mm
- Star-shaped profile
- Stepless heigh adjustment with integrated damping system
Make an enquiry about the IF REME Perfect Peanut Drawer slide

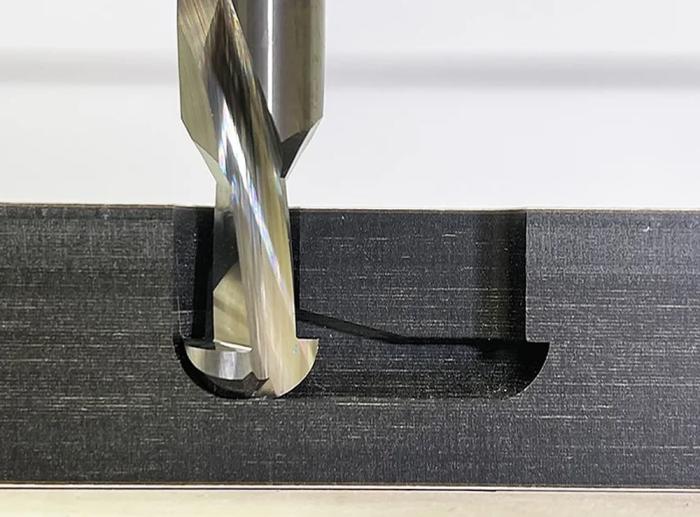

Machining
Route the Peanut Slots with the Peanut Cutter

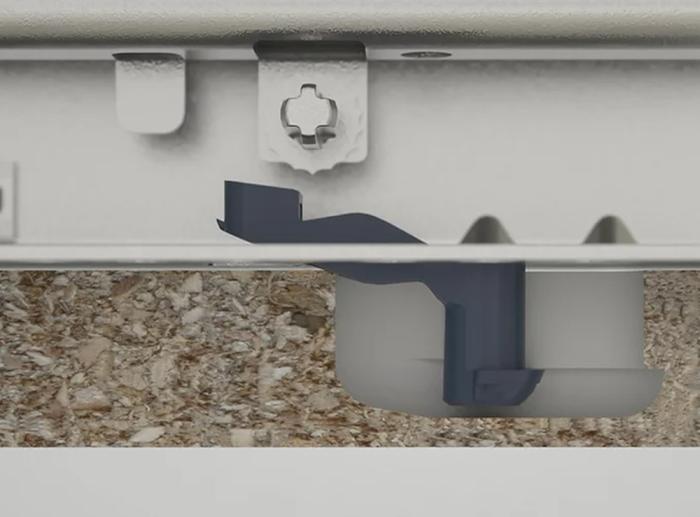

Insert the Perfect Peanut
Begin inserting the Perfect Peanut into the machined Peanut slot

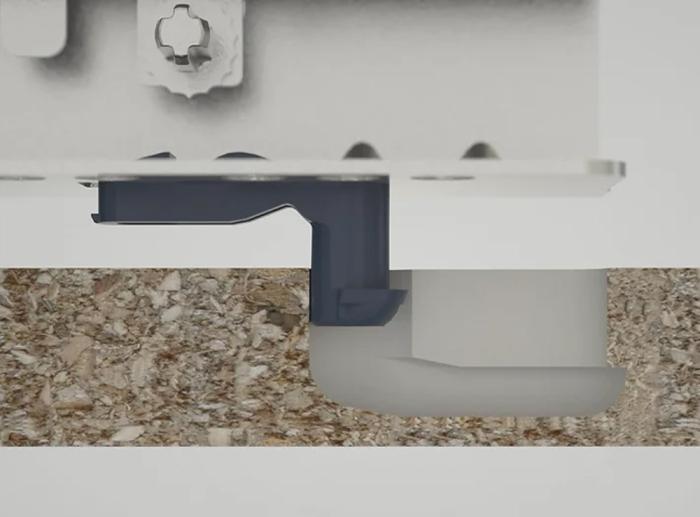

Self-clamping
As the Perfect Peanut slides in, the Peanut slot self-clamps the drawer runner in place

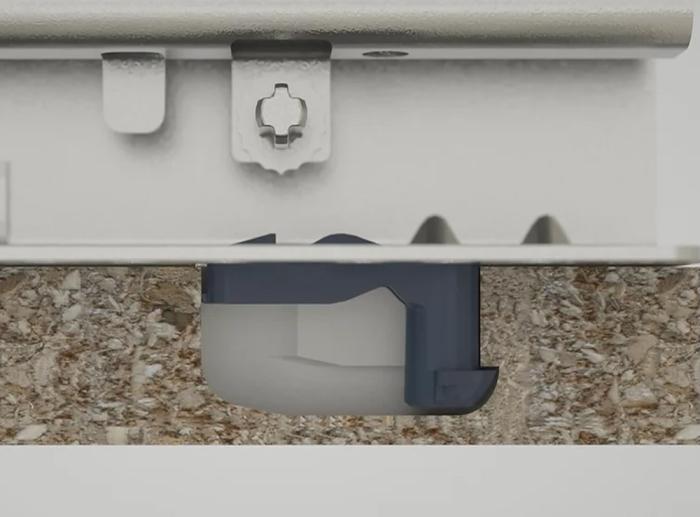

Self-locking
Once the Perfect Peanut reaches the end of the slot, it's tail drops into the Peanut slot locking it in place
Ready for use
No tools or screws required, and so the Perfect Peanut is ready for use

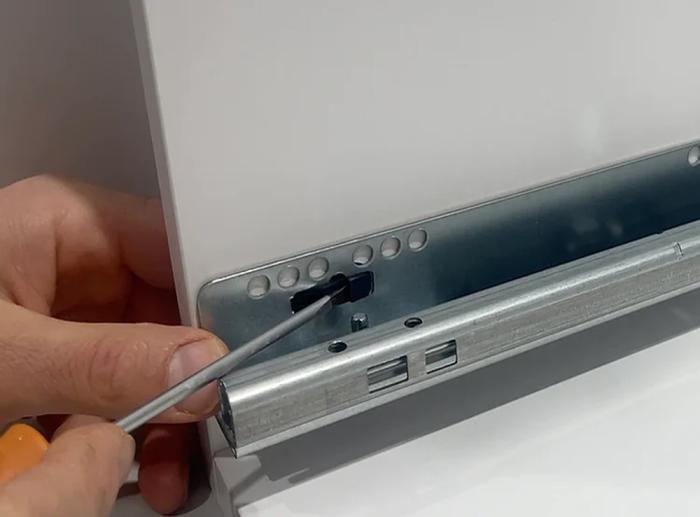

Simple disassembly
If you need to remove the Perfect Peanut for any reason, using a screw driver lift the locking latch and then slide the drawer runner out of the Peanut slot
