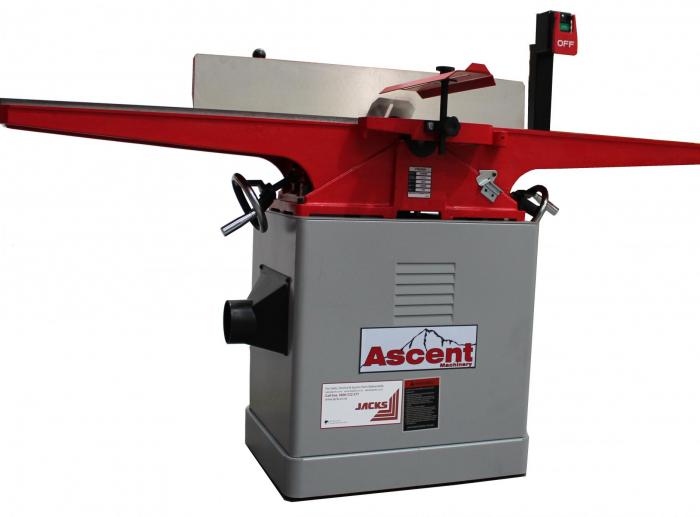

The BU200F surface planer, a.k.a. buzzer: a strong, powerful machine with a 200mm (8") wide table at an unbeatable price.
- Heavy cast iron construction - absorbs vibration for cleanest finish
- Massive cast iron fence
- Table height adjustment by large handwheel (essential for shooting hollow joints)
- Generous support for rebating - very useful for joinery work
- Long tables for efficient straightening
- Pedestal switch - no fumbling around at knee level
- Full cabinet stand incorporating shavings chute gives excellent stability
- Unbeatable value for money
A wheelkit is available separately. Some assembly required.
Make an enquiry about the Ascent Machinery Ascent Machinery BU200F Buzzer

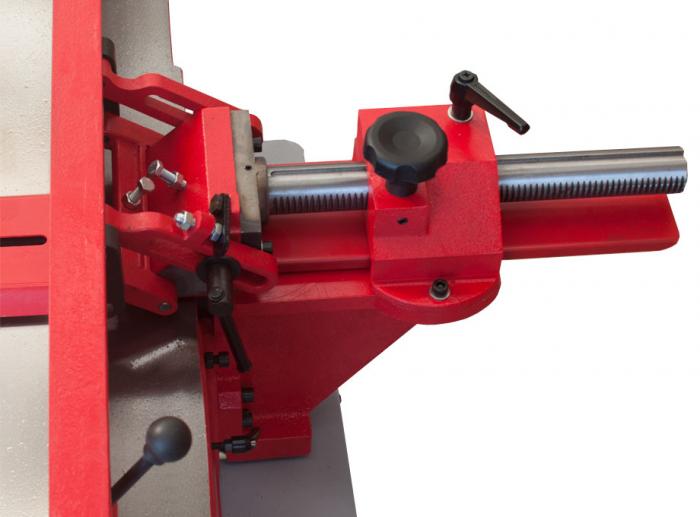

Solid accurate fence
Fence adjustment is quick via cam locking.
The heavy-duty cast iron fence can tilt +/-45° for chamfer planing.
Bridge guard meets NZ Safety regulations. Precision rip fence setting by rack & pinion.

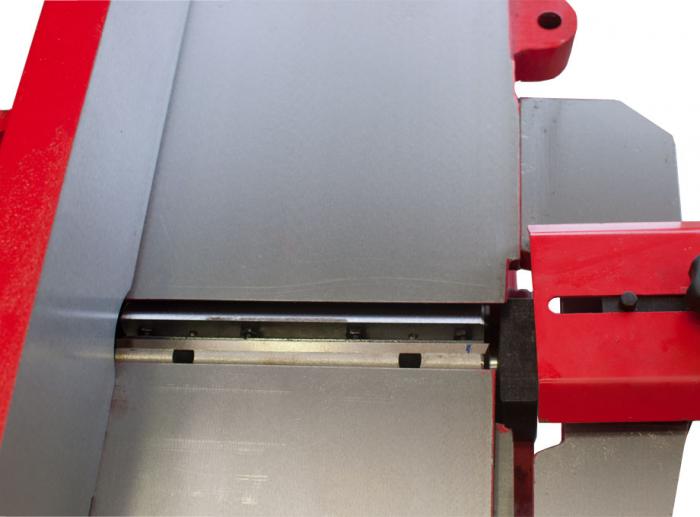

Four knife cutterblock
A jackscrew means easy replacement and adjustment of individual knives.

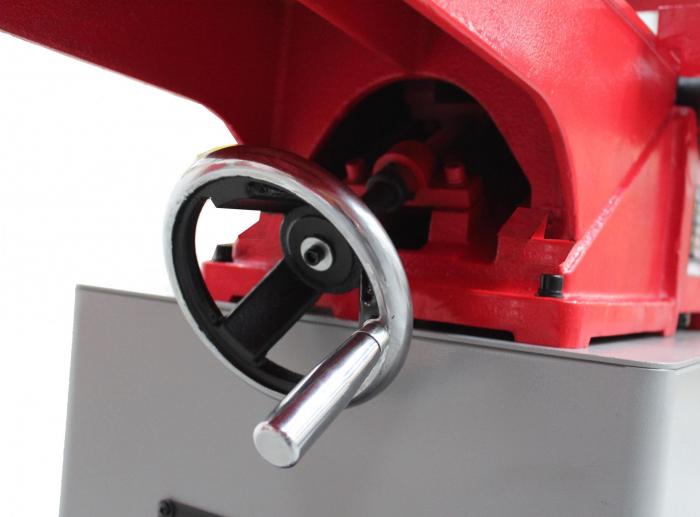

Simple, accurate adjustment
Indexed pin at 3mm - a regularly used stock removal amount.
Large handwheels for controlled table adjustment.

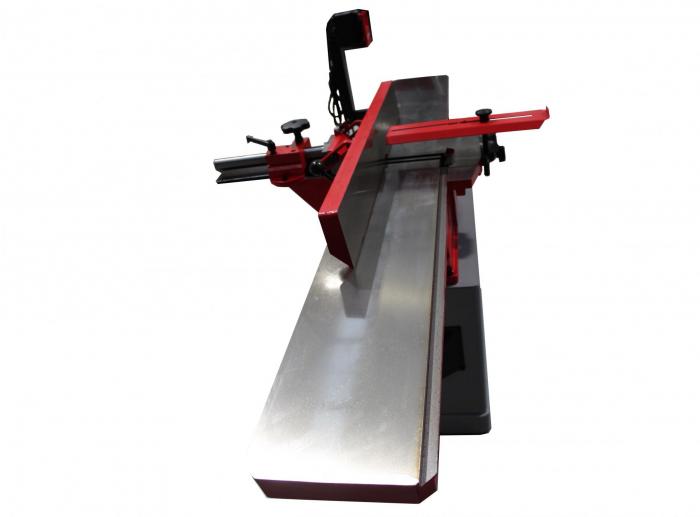

Long tables for straightening and plenty of power
Long tables mean efficient straightening and good workpiece support.
Grunty 1.5kW (2hp) motor means plenty of power when you need it, particularly for recycled NZ native timbers or other difficult timbers.
Wheel kit available separately - move your buzzer around with ease.
| Working width | 200mm |
|---|---|
| Motor | 1.5kW (2hp) with 15amp plug |
| Length of tables | 1790mm |
| Cutterblock Ø | 71mm |
| Cutterblock speed | 4800rpm |
| Maximum rebating depth | 12mm |
| Fence tilt | -45 to +45° |
| Knives | 4 spring-loaded knives |
| Weight | 210kg |
Specifications are subject to change without notice.
Ascent Machinery BU200F Buzzer
|
BU150F Surface Planer
|
A3 41A Surface Planer
|
|
|---|---|---|---|
| Motor | 1.5kW (2hp) with 15amp plug | 0.75kW (1hp) | 3kW (4hp) single phase (3 phase available) |
| Working width | 200mm | 150mm | 410mm |
| Knives | 4 spring-loaded knives | 3 spring-loaded | Silent-POWER spiral cutterblock |
| Fence tilt | -45 to +45° | -45 to +45° | -45 to +45° |
| Length of tables | 1790mm | 1535mm | 1800mm |
