We're pleased to offer the BS range of bandsaws. The BS350 is the smallest in the range and an excellent starting point for a home workshop.

With many of the features of its bigger brothers, the BS350 is no toy. When compared to other 14" bandsaws on the market in NZ, the BS350 is easily the most robust and reliable machine you'll find for the money.

  • Two speeds for cutting a variety of materials
  • 1.5kW motor - plenty of grunt for a machine of this size
  • Precision alloy fence with magnification for accurate positioning
  • Tilting table and mitre gauge
  • Quick release mechanism for blade change
  • Very smooth and quiet running

Assembly required.



$1,608.69 ex GST $1,850.00 inc GST $1,398.86 ex GST $1,608.69 inc GST Make an enquiry

Make an enquiry about the Ascent Machinery BS350 Bandsaw

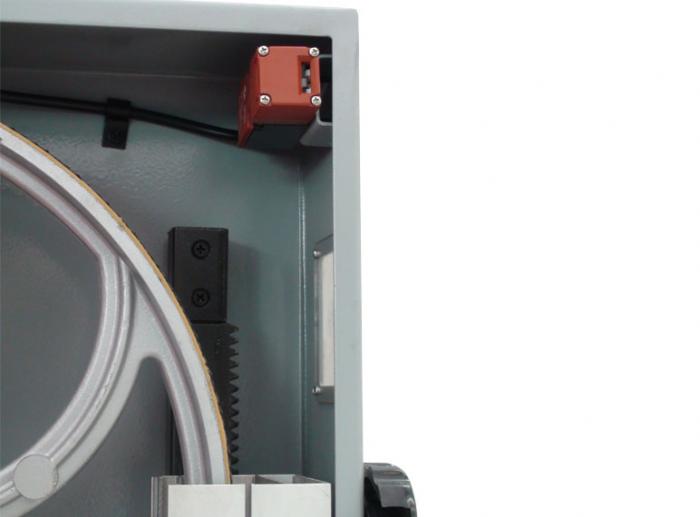

Safety first

Micro-switches in the top and bottom doors ensure the bandsaw can't run while the doors are open.

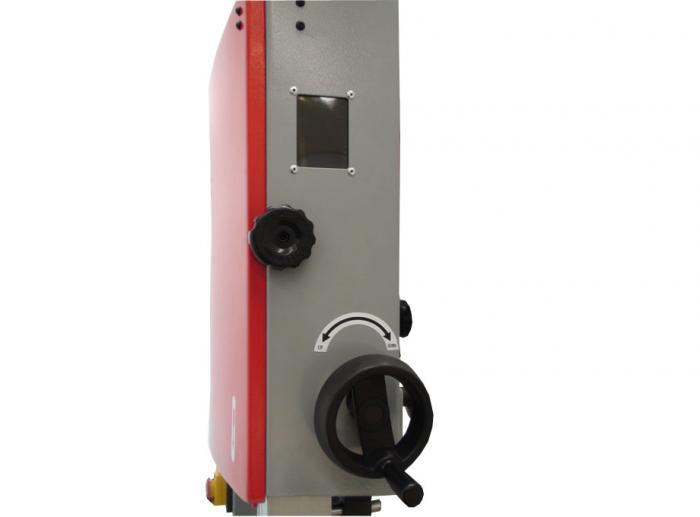

Blade tension tracking window

A small window allows you to check the blade tension.

Cutting height adjustment is via a large handwheel.

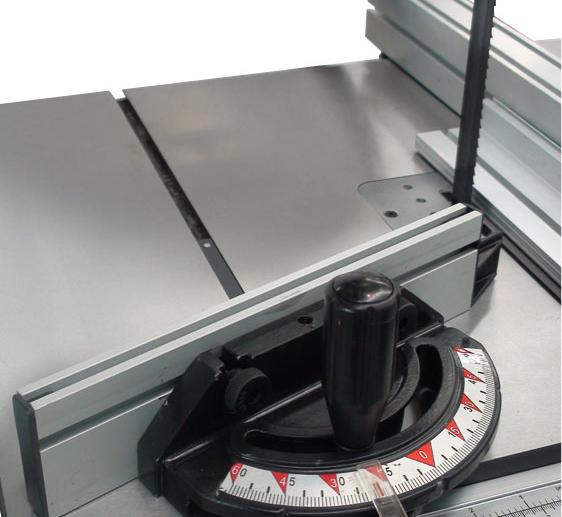

Mitre gauge

A mitre gauge gives you complete angle adjustment.

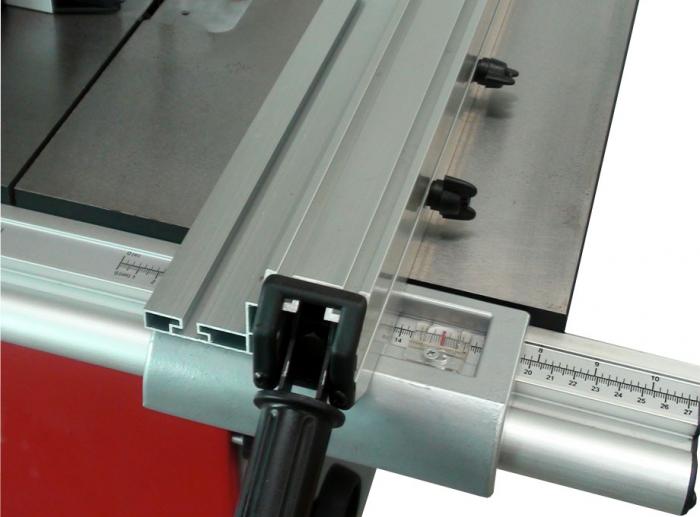

Keep it straight with a rip fence

A smooth running alloy extruded rip fence with magnified read-out.

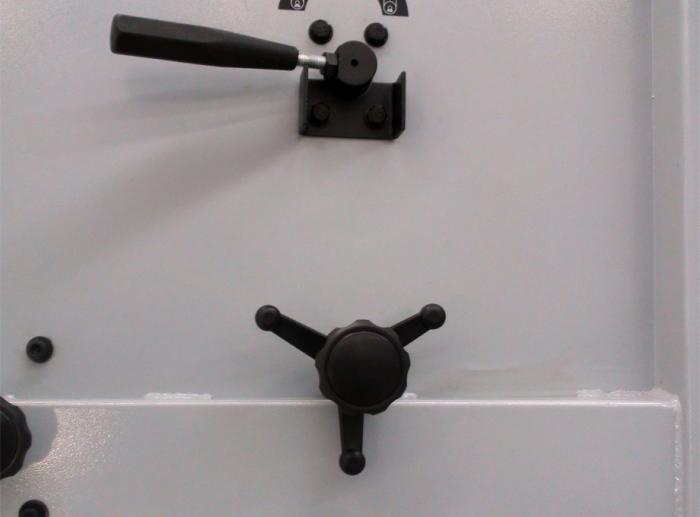

Quick release blade

On the back of the bandsaw is a quick release for the blade.

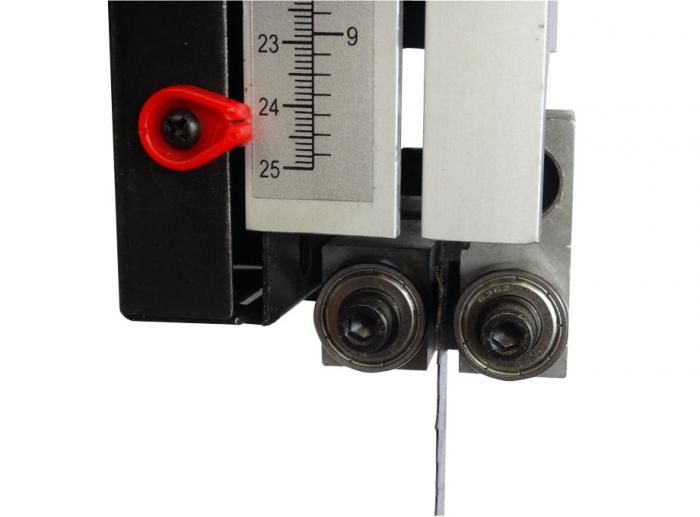

Roller guides

Guides upgraded to bearing roller guides (from friction guides which tend to wear unevenly).

Maximum cutting height 250mm
Maximum cutting width 345mm
Table size 440 x 540mm
Working height 1030mm
Motor 1.5kW (2hp)
Blade 2750mm x 6 - 25.4mm
Table tilt 0 to +45º
Wheel Ø 350mm (14")
Dust extraction 100mm
Blade speed 7 or 14m/sec
Weight 107kg

Specifications are subject to change without notice.

BS350 Bandsaw
BS350 Bandsaw
BS470 Bandsaw
BS470 Bandsaw
N3800 Bandsaw
N3800 Bandsaw
Motor 1.5kW (2hp) 2.2kW (3hp) with 15amp plug 1.5kW (2hp) single phase
Table size 440 x 540mm 480 x 630mm 400 x 510mm
Weight 107kg 162kg 150kg
Maximum cutting height 250mm 280mm 310mm
Blade 2750mm x 6 - 25.4mm 3607mm x 12.5 - 38mm 3556 x 6-20mm
Table tilt 0 to +45º 0 to +45º -5 to +45°
Wheel Ø 350mm (14") 470mm (18.5") 380mm
Dust extraction 100mm 100mm 120mm
Maximum cutting width 345mm 470mm 360mm
Blade speed 7 or 14m/sec 7 or 14m/sec 20m/sec
