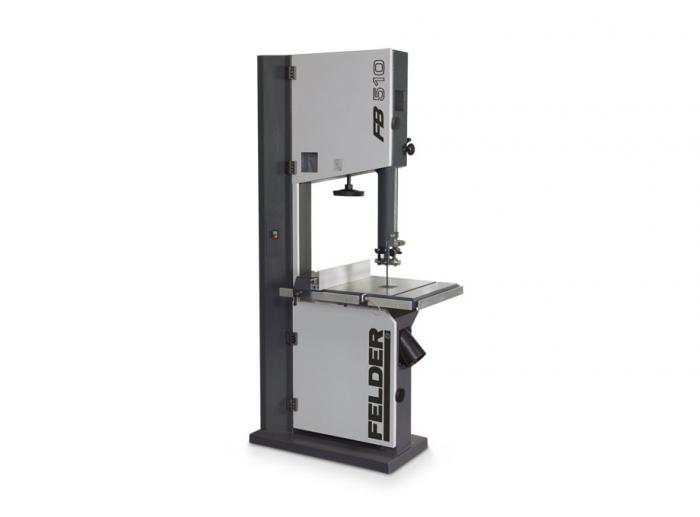

Felder FB510 Bandsaw
The mid-range professional bandsaw from Felder.
- Electronically balanced, solid cast iron wheels
- Upper and lower blade guides
- Saw blade tension indicator
- Cast iron table, tiltable up to 45 degrees
- Aluminium fence
Please note machine images may show optional equipment.
Make an enquiry about the Felder FB510 Bandsaw
| Maximum cutting height | 410mm |
|---|---|
| Rip capacity | 480mm |
| Table size | 500 x 640mm |
| Working height | 859mm |
| Motor | 3kW (4.0hp) single phase (3 ph avail) |
| Blade | 4318mm x 6 - 25mm |
| Table tilt | -10 to +45° |
| Wheel Ø | 500mm |
| Dust extraction | 120mm |
| Blade speed | 25m/sec |
| Weight | 250kg |
Specs shown are for the standard model we offer, but Felder offer a wide variety of options, so talk to us about customising a machine to suit you.
Specifications are subject to change without notice.
FB510 Bandsaw
|
N4400 Bandsaw
|
FB610 Bandsaw
|
|
|---|---|---|---|
| Motor | 3kW (4.0hp) single phase (3 ph avail) | 2.5kW (3.5hp) single phase (3 ph avail) | 3kW (4.0hp) single phase (3 ph avail) |
| Table size | 500 x 640mm | 420 x 575mm | 560 x 850mm |
| Weight | 250kg | 170kg | 320kg |
| Blade | 4318mm x 6 - 25mm | 3976mm x 6 - 25mm | 4546mm x 10 - 30mm |
| Table tilt | -10 to +45° | -10 to +45° | -5 to +45° |
| Dust extraction | 120mm | 120mm | 120mm |
| Maximum cutting height | 410mm | 310mm | 410mm |
| Wheel Ø | 500mm | 440mm | 600mm |
| Blade speed | 25m/sec | 15m/sec | 25m/sec |
