From Felder's Industrial line of bandsaws comes the FB940.

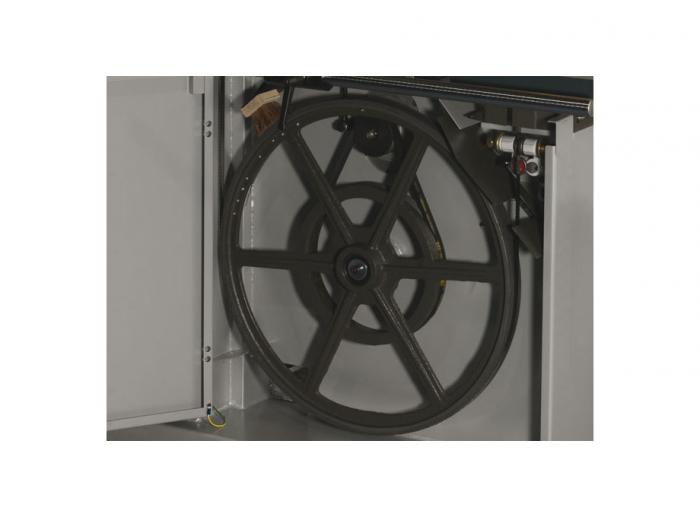

- Electronically balanced, solid cast iron wheels
- Upper and lower blade guides
- Saw blade tension indicator
- Cast iron table, tiltable up to 20 degrees
- Cast iron fence
Please note machine images may show optional equipment.
Make an enquiry about the Felder FB940 Bandsaw

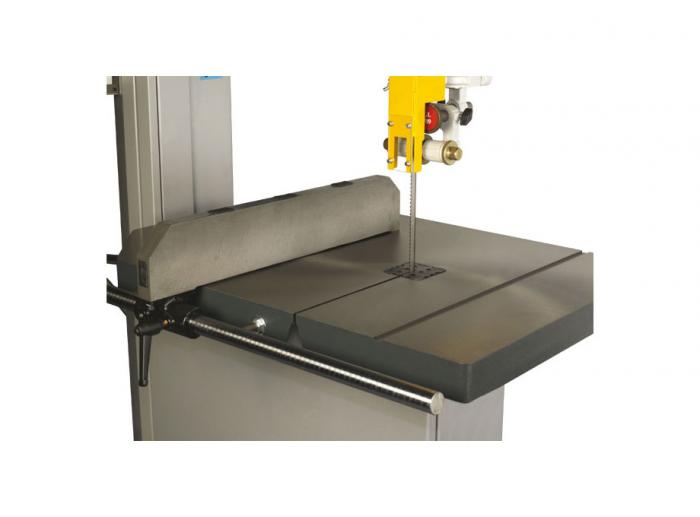

Rip fence
Precise adjustments can be made with the cast iron fence on both sides of the blade. When working with large workpieces it can be tilted away below the table.
Upper and lower table guides
Felder bandsaws are equipped with upper and lower table guides with fine adjustable side and rear rollers.

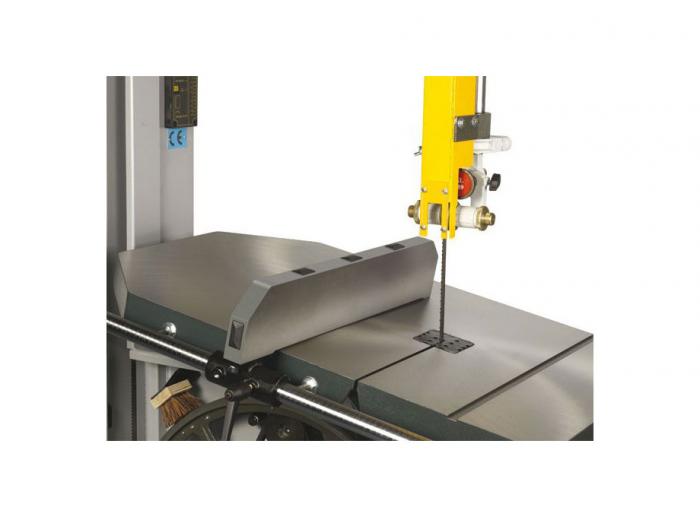

Tiltable table
The machined and polished cast iron table can be tilted from 0°– 20°
| Maximum cutting height | 560mm |
|---|---|
| Rip capacity | 910mm |
| Table size | 820 x 1300mm |
| Working height | 1060mm |
| Motor | 7.5kW (10hp) |
| Table tilt | 0 to 20° |
| Wheel Ø | 940mm |
| Dust extraction | 140mm |
| Blade speed | 26m/sec |
| Weight | 700kg |
Specs shown are for the standard model we offer, but Felder offer a wide variety of options, so talk to us about customising a machine to suit you.
Specifications are subject to change without notice.
FB940 Bandsaw
|
FB610 Bandsaw
|
|
|---|---|---|
| Motor | 7.5kW (10hp) | 3kW (4.0hp) single phase (3 ph avail) |
| Table size | 820 x 1300mm | 560 x 850mm |
| Weight | 700kg | 320kg |
| Table tilt | 0 to 20° | -5 to +45° |
| Dust extraction | 140mm | 120mm |
| Working height | 1060mm | 839mm |
| Maximum cutting height | 560mm | 410mm |
| Wheel Ø | 940mm | 600mm |
| Blade speed | 26m/sec | 25m/sec |
| Rip capacity | 910mm | 575mm |
