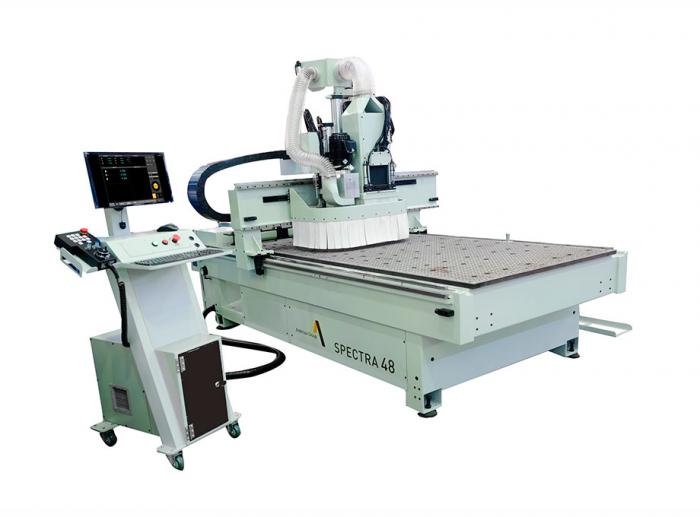

Anderson's Spectra series of CNC continue their reputation for performance and reliability since 1972.

Built strong, the Spectra 48 features an extremely rigid base - constructed of heavy gauge bar and tube. Critical surfaces are machined to the highest tolerances, and the frame design maximises the machine's stiffness - and therefore minimises vibration.

All axes are controlled by high tolerance servo motors, allowing the machine to position with the highest precision without compromising speed.

Campro Nest software combined with a Syntec controller give you the power to design and manufacture your products quickly and efficiently.







Make an enquiry about the Anderson Spectra 48 CNC

Machine Foundry

Rigid construction with vacuum chamber. Standard spindle configuration is 10 HP air cooled plus a line boring unit. High precision linear guide rails installed on all axes.

Linear tool magazine

The 6-position tool magazine will easily cater for all tools required for manufacturing cabinets with additional capacity for specialised applications.

Air Nozzle Device

Air nozzle keeps the rack and pinion clear and clean at all times.



Spindle speeds 1,000 - 18,000rpm
Drilling head 10 spindle (5 + 5)
Main spindle 7.5kW (10hp) air cooled
Tool changer 6 station
X, Y, Z working area 2500 x 1500 x 200mm
Vacuum 250m³/hr
Weight 3,000kg

Specifications are subject to change without notice.

Spectra 48 CNC
Spectra 48 CNC
Profit H08 Professional CNC
Profit H08 Professional CNC
DN-3409DE
DN-3409DE
Main spindle 7.5kW (10hp) air cooled 10kW HSD 12kW
Drilling head 10 spindle (5 + 5) 8 spindle (6 x 2) FAM 10 Spindles
Weight 3,000kg 1900kg 3500kg
Vacuum 250m³/hr 750 m³/h 250m³/h
