Anderson's Genesis series of CNC continue their reputation for performance and reliability since 1972.

The Genesis series offers fully automated CNC maching with loading and offloading, including labelling.

All axes are controlled by high tolerance servo motors, allowing the machine to position with the highest precision without compromising speed - up to 80m a minute. There's a 12 station tool carousel for fast tool changes, and pop-up stops and vacuum zones give you flexibility for processing.

In addition to automatically labelling, handling systems around the CNC include a scissor lifting table, a pusher and an off-loading conveyor table, all with dust extraction.

Light barriers and safety fencing ensure safety remains paramount.









Make an enquiry about the Anderson Genesis EVO 412 CNC

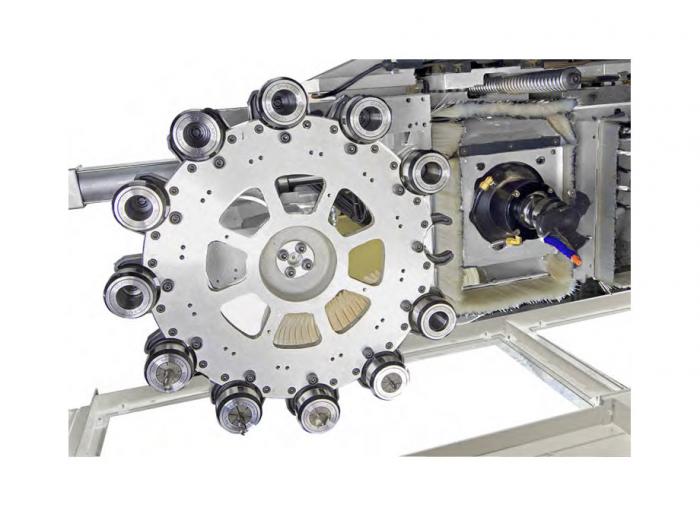

12 Tool carousel

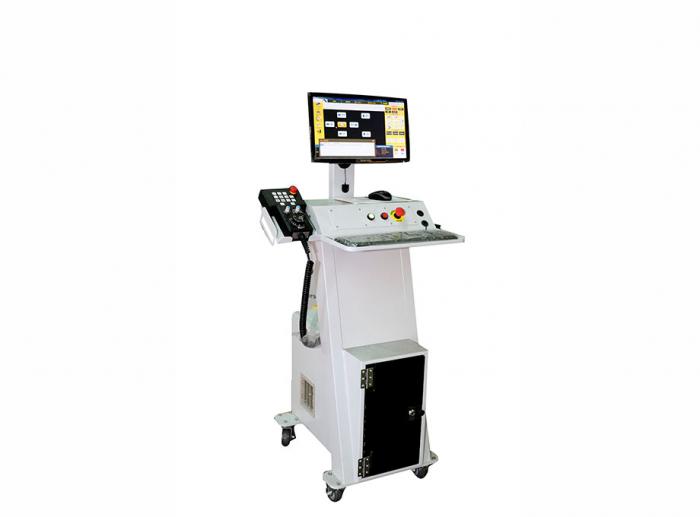

Moveable pedestal for flexibility

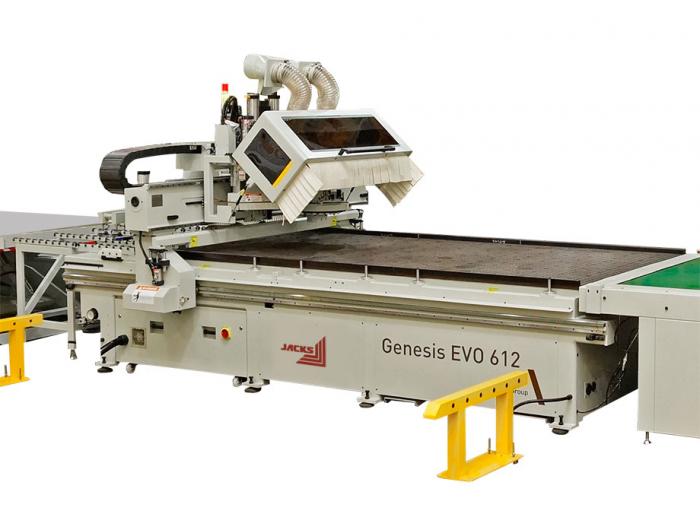

Anderson Genesis EVO full cell [612 model pictured]

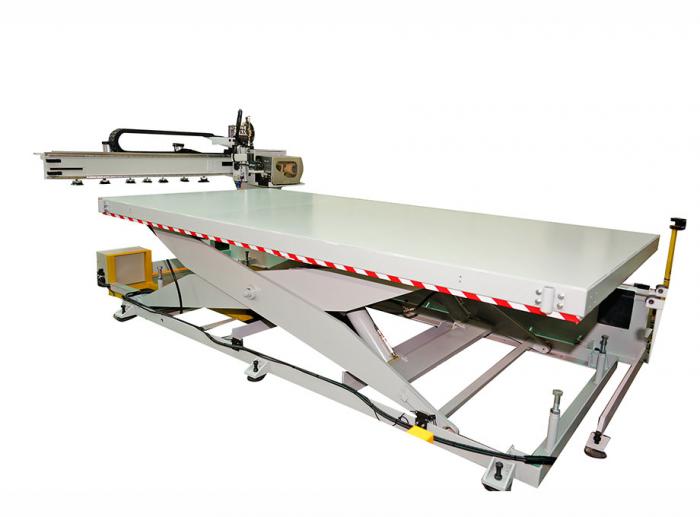

Scissor-lift loading

[EVO 612 pictured]

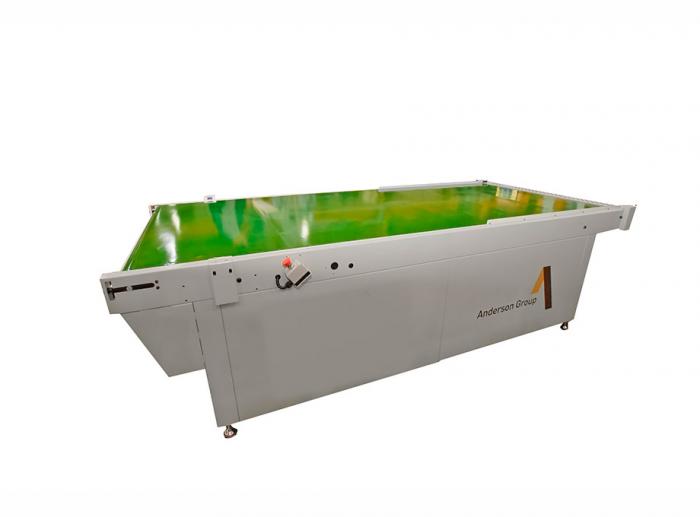

Conveyor offloading

[EVO 612 pictured]

Main spindle 7.5kW (10hp) HSK-63F air cooled
X, Y, Z working area 3900 x 1700 x 200mm
Tool changer 12 station
Drilling head 17 spindle
Spindle speeds 1,000 - 24,000rpm
Weight 4,000kg +

Specifications are subject to change without notice.

Genesis EVO 412 CNC
Genesis EVO 412 CNC
Main spindle 7.5kW (10hp) HSK-63F air cooled
X, Y, Z working area 3900 x 1700 x 200mm
Tool changer 12 station
Drilling head 17 spindle
Spindle speeds 1,000 - 24,000rpm
Weight 4,000kg +
