From Ascent comes a compact yet powerful combination machine. With the features of a heavyweight industrial machine, you can have safe yet superior planing and thicknessing at home, all on one machine. Spot on for those with limited workshop space and excellent value for money.
Make an enquiry about the Ascent Machinery PT310F Planer Thicknesser

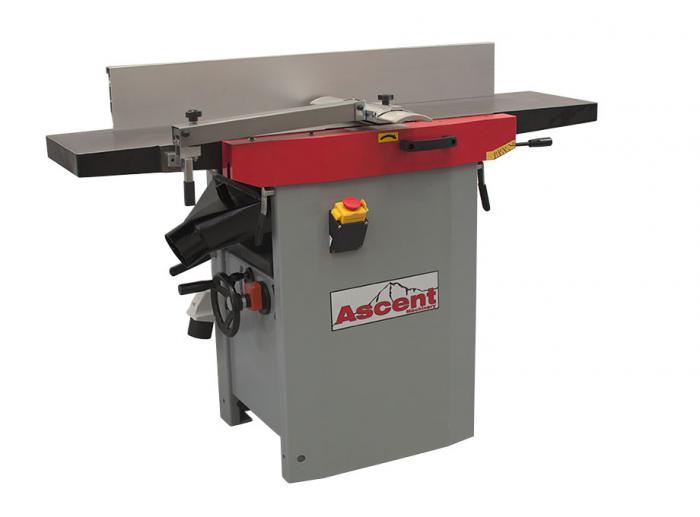

Accurate, rock-solid planer fence
A long planer fence gives generous support while planing.
A solid, positive locking fence support is held by rigid cast iron bracket, reducing movement and improving accuracy.

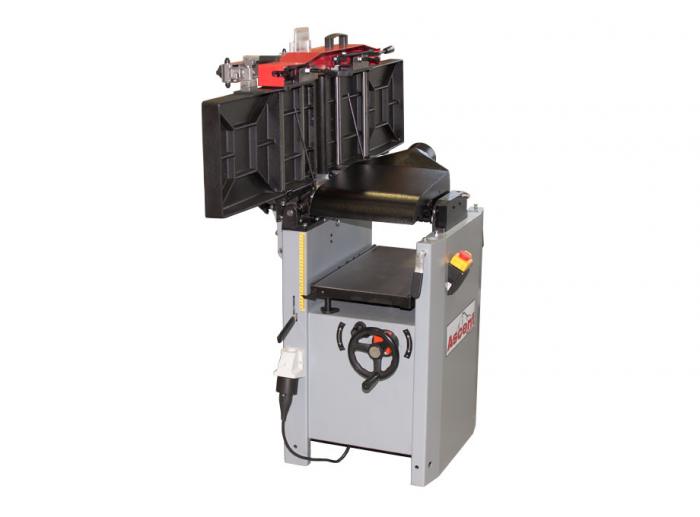

Simple changeover between planing and thicknessing
Only one table to swing aside and excellent safety locking to avoid accidents.
Even better, there's no need to remove the planer fence OR guard when converting from planer to thicknesser.
Accurate adjustment
Lever action adjustment on front buzzer table with clear scale measurement.

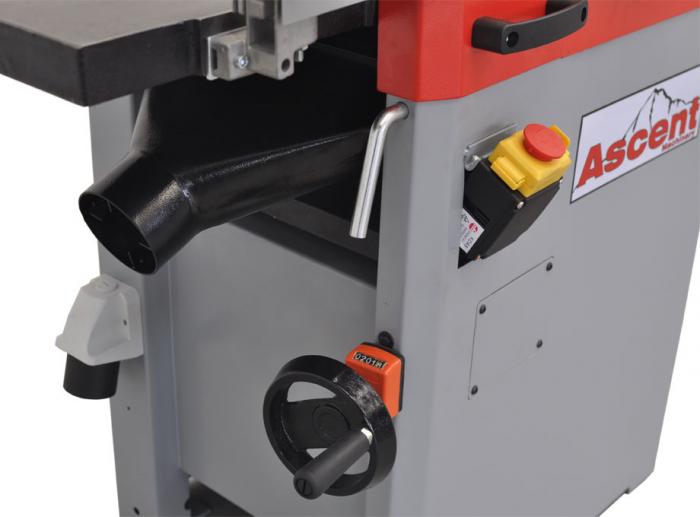

Rise and fall with digital read-out
| Motor | 2.5kW single phase with 15amp plug |
|---|---|
| Feed speed | 7m/min |
| Cutterblock Ø | 70mm |
| Cutterblock speed | 5300rpm |
| Weight | 175kg |
| Working width | 310mm |
| Thicknessing width | 305mm |
| Length of tables | 1420mm |
| Maximum workpiece thickness | 230mm |
| Knives | 3 |
Specifications are subject to change without notice.
PT310F Planer Thicknesser
|
A3 31 Planer Thicknesser
|
|
|---|---|---|
| Motor | 2.5kW single phase with 15amp plug | 3kW (4hp) single phase (3 phase available) |
| Feed speed | 7m/min | 6m/min |
| Weight | 175kg | 290kg |
| Working width | 310mm | 310mm |
| Thicknessing width | 305mm | 306mm |
| Length of tables | 1420mm | 1400mm |
| Maximum workpiece thickness | 230mm | 225mm |
| Knives | 3 | Silent-POWER spiral block |
Ascent Machinery is exclusive to Jacks
