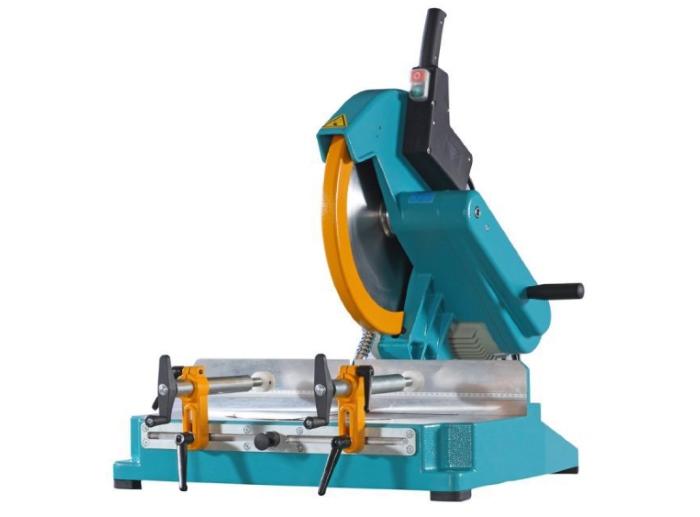

The KD series Mitre Saws feature precision angle cutting with CNC machined cast iron tables on a heavy duty cast base.
- 400mm blade capacity
- Mitre facility 0 – 45° left and right, indexed at 0,15, 22.5, 30 & 45°
- Manual material clamps (2x horizontal)
- Heavy duty construction
- Poly vee belt drive
- High quality European TCT Aluminium blade included
Make an enquiry about the Yilmaz KD400M Mitre Saw

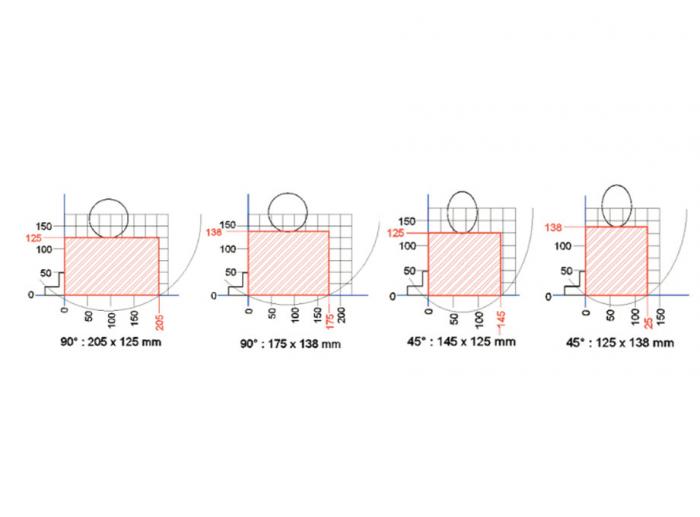

Cutting diagram
90°: 205 x 125mm or 175 x 138mm
45°: 145 x 125mm or 125 x 138mm
| Saw blade Ø | 400mm |
|---|---|
| Saw blade speed | 3000rpm |
| Motor | 2.2 kW (3hp) Single-phase |
| Dimensions (L x W x H) | 70 x 64 x 61cm |
| Weight | 70kg |
Specifications are subject to change without notice.
KD400M Mitre Saw
|
KD400P Mitre Saw
|
|
|---|---|---|
| Motor | 2.2 kW (3hp) Single-phase | 2.2 kW (3hp) |
| Weight | 70kg | 120kg |
| Saw blade Ø | 400mm | 400mm |
| Saw blade speed | 3000rpm | 3000rpm |
| Dimensions (L x W x H) | 70 x 64 x 61cm | 71 x 80 x 149cm |
Jacks and Yilmaz provide a range of accessories to suit your manufacturing needs, including:
- machine stands
- cutting lubricant to ensure your cutting is accurate and your tooling is kept in the best shape
- clamp and lubricant sprays to ensure you can process your materials securely and efficiently
- saw blades - we stock a variety of blades including specialist blades for aluminium
All Yilmaz machines Jack sell meet the requirements for ‘CE’ or European Conformity – the strict standards for safety, public health and consumer protection as required by the European Union.
Aluminium processing machines and equipment
