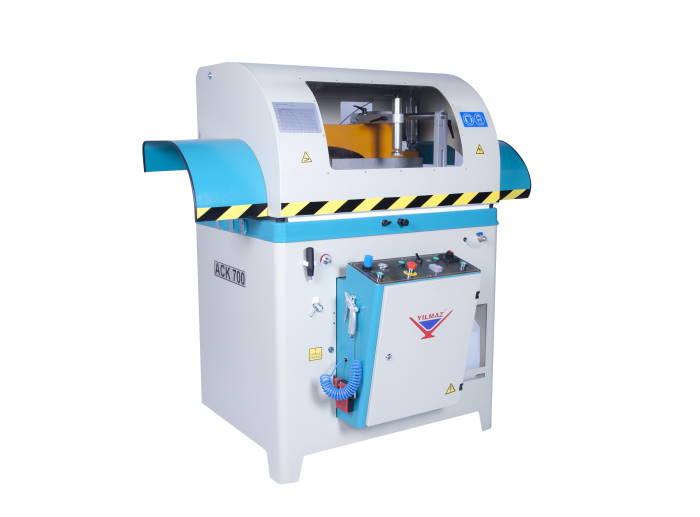

The ACK700 is the largest and most robust upcut saw produced by Yilmaz for straight and mitre cutting of very large profiles or bundle/stack cutting.
Due to the smart design of the ACK700 some common problems associated with drop saws have been eliminated. Offcuts are no longer thrown by the blade as the 3x clamps can be set very close to the blade allowing even very short offcuts to be clamped. Clamps are pneumatic and pressure regulated, while blade feed is controlled via a hydro-pneumatic (air over oil) feed system, which allows fully adjustable speed control from the front panel.
Totally guarded with safety microswitches and requiring two-hand push button operation, the Yilmaz ACK700 complies with New Zealand Safety standards for mitre saws.
Make an enquiry about the Yilmaz ACK700S Upcut Saw

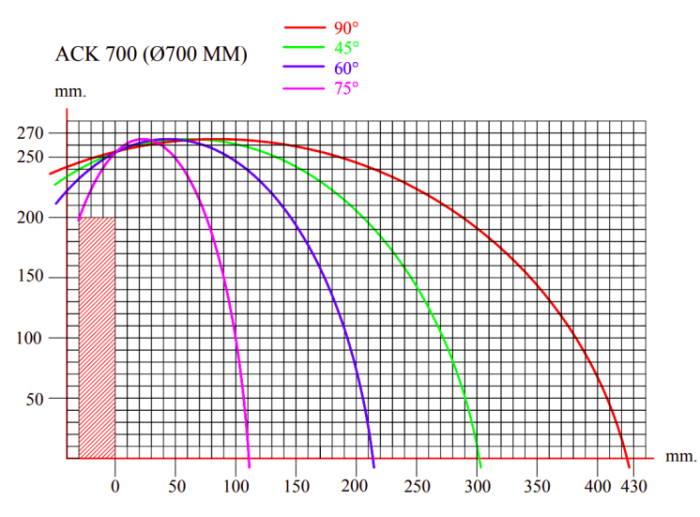

ACK700S Capacity
Cutting capacity at 45 / 60 / 75 / 90 degrees shown.
- 700mm blade capacity with adjustable hydro-pneumatic saw feed
- Pneumatic spray-mist blade lubrication
- Pivoting range from -75° left to +75° right infinitely adjustable
- Index location points at 75°,60°,45°,30°,22.5°,15°,0° both left and right
- Two-hand run safety operation
- Interior LED lighting
- Pneumatically opening safety hood with safety switches
- 2 pneumatic vertical clamps
- 1 pneumatic horizontal clamp
- Air gun
- High-quality Aluminium TCT blade included (700mm)
| Saw blade Ø | 700mm |
|---|---|
| Max. cutting height @ 90º | 265mm |
| Saw blade speed | 2000rpm |
| Motor | 4kW (5.5hp) 3 phase |
| Air pressure | 6-8 bar |
| Bore Ø saw spindle | 38mm |
| Air consumption | 180L/min |
| Weight | 500kg |
Specifications are subject to change without notice.
ACK700S Upcut Saw
|
ACK420S Upcut Saw
|
ACK550S Upcut Saw
|
|
|---|---|---|---|
| Motor | 4kW (5.5hp) 3 phase | 2.2kW 3-phase | 4kW (5.5hp) 3 phase |
| Weight | 500kg | 210kg | 373kg |
| Saw blade Ø | 700mm | 420mm | 550mm |
| Saw blade speed | 2000rpm | 3000rpm | 2400rpm |
| Air pressure | 6-8 bar | 6-8 bar | 6-8 bar |
| Air consumption | 180L/min | 34L/min | 160L/min |
| Bore Ø saw spindle | 38mm | 30/32 mm | 30mm |
