The FR series Copy Routers work from an interchangeable, pre-designed metal template. Often used for key locks, the shape is transferred to the workpiece by using one of the two copy pins to trace the template.
Copy Routers can also produce rectangular, square shapes or slots without a template by setting the four head guides to the required positions. The routing method is fast, accurate and can be utilised with unskilled labour.

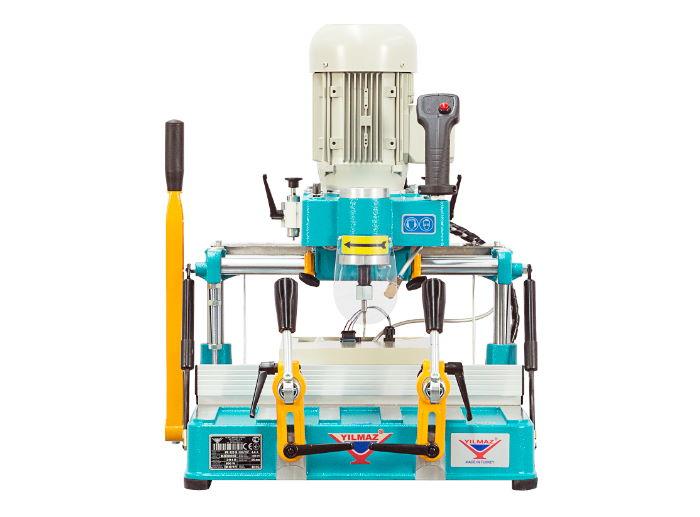

The portable FR223 features a powerful and reliable induction motor allowing milling on up to 3 mm aluminium plates.
The adjustable lubrication and coolant spray system operates whenever the router is working for longer tool life and a higher cut quality.
Make an enquiry about the Yilmaz FR223 Copy Router

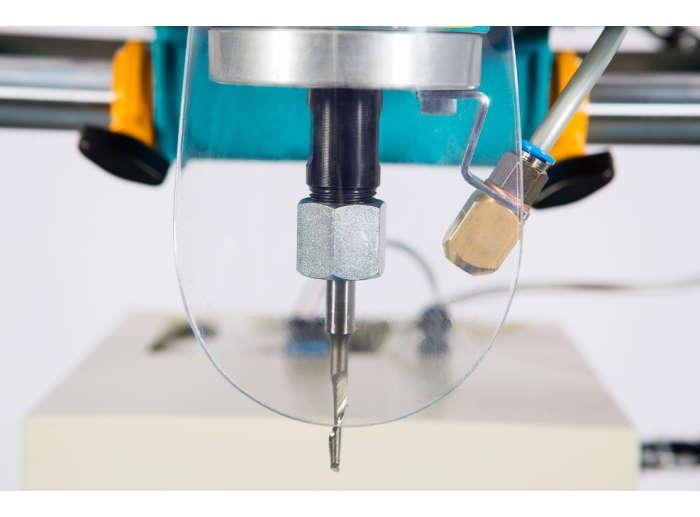

Lubricant & Cooling Spray System
The electronically powered lubricant and cooling spray system is fully adjustable and operates automatically whenever the router is being used.

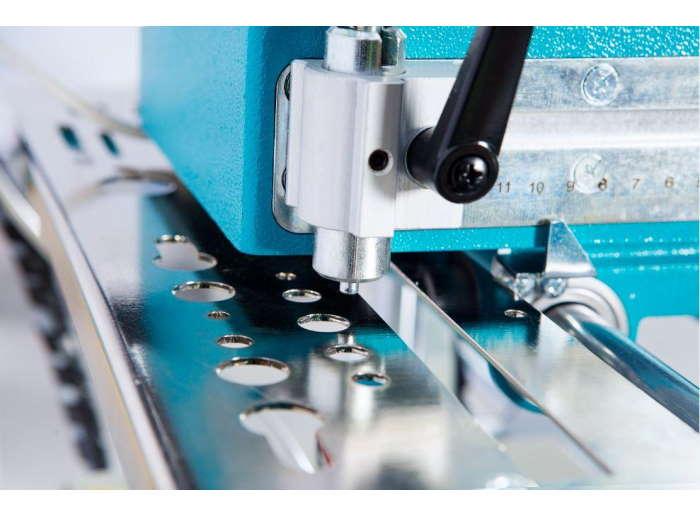

Tracing System
The interchangeable metal plate tracing system is used for routing shapes such as lock holes.
- Traces from metal template
- Reliable industrial induction motor
- Electronically powered lubrication and cooling system
- Twin pin, twin template copying
- Recessed cast table for through routing
- Manual material clamps (2 x horizontal)
- 1x 5mm Router bit included
| Motor | 750W (1hp) single phase |
|---|---|
| Spindle speeds | 14,000rpm |
| Weight | 34.5kg |
Specifications are subject to change without notice.
Jacks and Yilmaz provide a range of accessories to suit your manufacturing needs, including:
- machine stands
- cutting lubricant to ensure your cutting is accurate and your tooling is kept in the best shape
- clamp and lubricant sprays to ensure you can process your materials securely and efficiently
- saw blades - we stock a variety of blades including specialist blades for aluminium
All Yilmaz machines Jack sell meet the requirements for ‘CE’ or European Conformity – the strict standards for safety, public health and consumer protection as required by the European Union.
