High-end CNC technology at a low investment level.

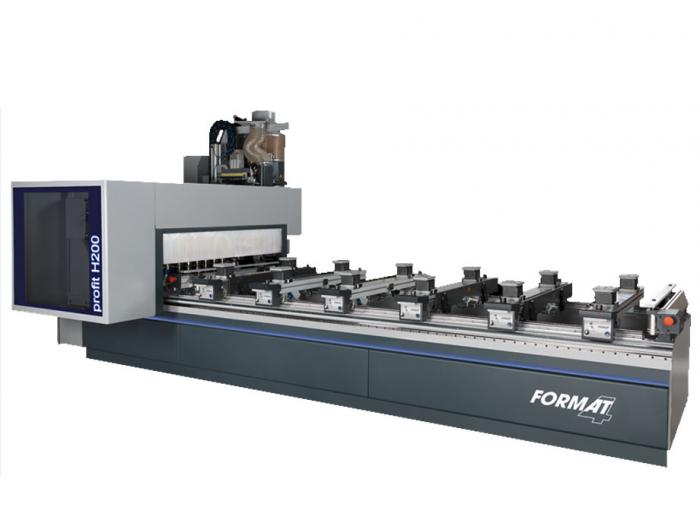

Regardless of whether you're working wiht standard products or individually designed one-offs , the universal Format-4 profit H200 machining centre produces finished workpieces with maximum efficiency - making a real profit from day one.

In the new, completely re-engineered design, the CNC machining centres from Format-4 display dynamics, power and high end technology from the first glance. The new machine chassis with solid steel ribbing guarantees maximum stability at maximum output. With a wide selection of various tool changers and software that fits perfectly to the machine, the  Format-4 CNC machining centre is a reliable complete package for the production of doors, windows, staircases and solid wood furniture.

High quality Austrian manufacturing standards with NZ-wide Jacks support.

Make an enquiry about the Format-4 Profit H200 CNC

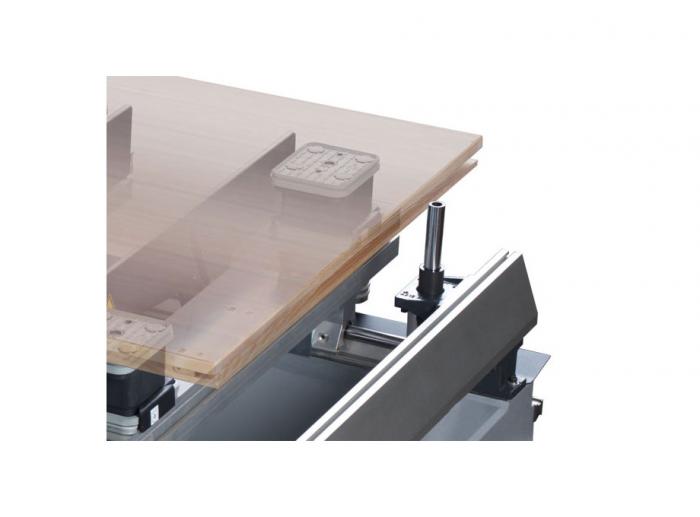

Workpiece loading support

Loading supports assist in the simple loading and unloading of large or heavy workpieces. A major advantage is that they enable you to operate the machining centre alone.

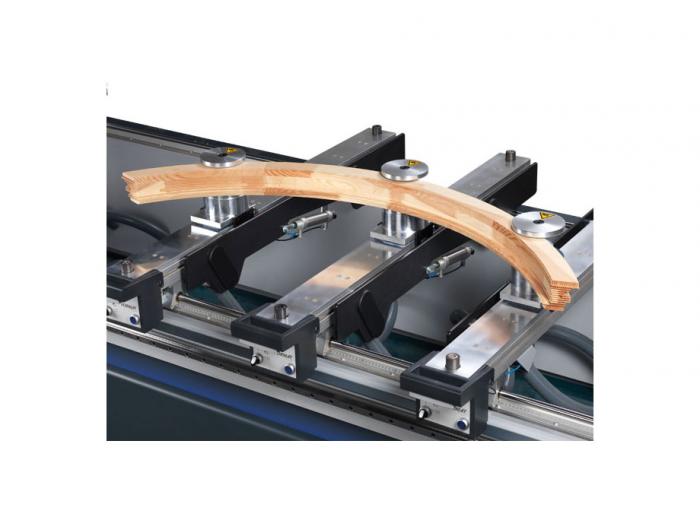

Panel activation

Specifically designed for use with compressed air controlled frame clamp systems, this function offers new possibilities and enormous clamping strength when it comes to the processing of solid wood. The ability to be able to deactivate the consoles individually makes it possible to remove waste material without having to release the vacuum holding the workpiece. This ensures that the workpiece stays in exactly the right position for the next working process.

  • Small footprint - minimal space requirement
  • Drawing = programming, intuitive operating software
  • “Woodflash” software including 3D cabinet software “F4-Design” for presentation, parts list and connection to the machine
  • Gantry design, solid construction for maximum performance
  • The drilling head covers the whole working field
  • High quality dual circuit vacuum clamping system with 100 mm vacuum pod height



Main spindle Up to 15kW HSK F63
X, Y, Z working area 3300 x 1280 x 250mm
Weight 3650kg
Tool changer Up to 36 tool positions
Drilling head 24 spindle (18 + 6)

Specifications are subject to change without notice.

Profit H200 CNC
Profit H200 CNC
Main spindle Up to 15kW HSK F63
X, Y, Z working area 3300 x 1280 x 250mm
Weight 3650kg
Tool changer Up to 36 tool positions
Drilling head 24 spindle (18 + 6)

Classical Doors in Tauranga and their Format-4 H200, June 2019
