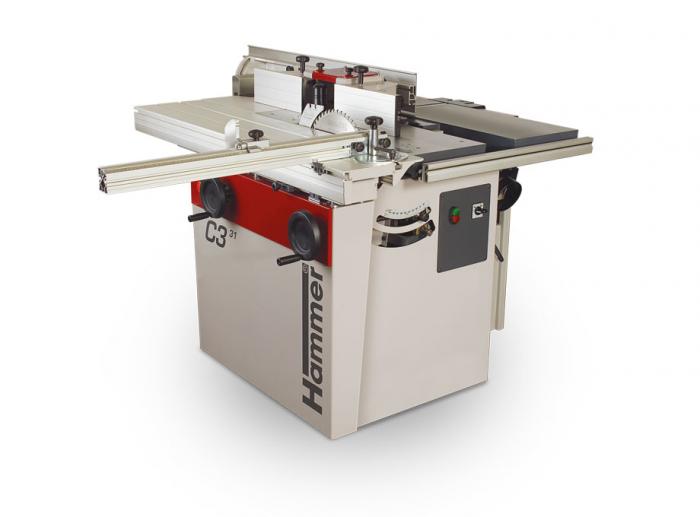

A limited workspace does not have to mean that what you can expect from a combined ­machine is also “limited.” On the contrary, the Hammer C3 31 combination machine satisfies the greatest ­demands, in the smallest space - with perfect results.

The C3 31 combi offers everything the enthusiast desires:

  • Sensational value for money
  • Solid cast iron tables and units
  • Innovative machine technology
  • Fantastic standard features
  • Quick changeover times
  • User friendly performance
  • Quality and precision that will last for years and years

Please note machine images may show optional equipment.

Make an enquiry about the Hammer C3 31 Combi

Silent-POWER cutterblock

For tear-free results, low noise and twenty times the usable blade life, Silent-POWER cutterblock offers outstanding value.

Also available: a 3 knife quick-change, self-­setting cutterblock system ­enables simple and accurate planer knife changes in seconds.

Perfection in woodworking with the Hammer combination machine. See for yourself the precision and versatility of the Hammer Combi and observe just how easy it is to make a high class rocking chair using wood from the Black Locust tree.



See the benefit of a Silent-POWER cutterblock.

Motor 3 x 3kW single phase (3 phase available)
Weight 540kg
Thicknessing width 306mm
Knives Silent-Power spiral-knife block
Maximum workpiece thickness 225mm (thicknesser)
Feed speed 6m/min (thicknesser)
Maximum cutting depth 4mm (planer)
Working width 310mm (planer)
Length of tables 1400mm (planer)
Saw blade Ø 250 - 315mm
Saw blade speed 4800rpm (saw)
Max. cutting height @ 90º 103mm
Rip capacity 600mm
Sliding table length 800mm
Spindle speeds 3000 / 6000 / 8000 / 10,000rpm
Spindle Ø 30mm
Spindle travel 100mm
Table opening Ø 180mm max tool diameter
Crosscut fence length 900mm

Specs listed are for the standard model we offer, but Hammer offer a wide variety of options, so talk to us about customising a machine to suit you.

Specifications are subject to change without notice.

C3 31 Combi
C3 31 Combi
C3 31 Comfort Combi
C3 31 Comfort Combi
C3 31 Perform Combi
C3 31 Perform Combi
Motor 3 x 3kW single phase (3 phase available) 3 x 3kW single phase (3 phase available) 3 x 3kW single phase (3 phase available)
Weight 540kg 780kg 780kg
Thicknessing width 306mm 306mm 306mm
Knives Silent-Power spiral-knife block Silent-POWER spiral-knife block Silent-POWER spiral block
Maximum workpiece thickness 225mm (thicknesser) 225mm (thicknesser) 225mm (thicknesser)
Feed speed 6m/min (thicknesser) 6m/min (thicknesser) 6m/min (thicknesser)
Maximum cutting depth 4mm (planer) 4mm (planer) 4mm (planer)
Working width 310mm (planer) 310mm (planer) 310mm (planer)
Length of tables 1400mm (planer) 1400mm (planer) 1400mm (planer)
Saw blade Ø 250 - 315mm 250 - 315mm 250 - 315mm
Saw blade speed 4800rpm (saw) 4800rpm (saw) 4800rpm (saw)
Max. cutting height @ 90º 103mm 103mm 103mm
Rip capacity 600mm 600mm 600mm
Sliding table length 800mm 2000mm 2500mm
Spindle speeds 3000 / 6000 / 8000 / 10,000rpm 3000 / 6000 / 8000 / 10,000rpm 3000 / 6000 / 8000 / 10,000rpm
Spindle Ø 30mm 30mm 30mm
Spindle travel 100mm 100mm 100mm
Table opening Ø 180mm max tool diameter 180mm max tool diameter 180mm max tool diameter
Crosscut fence length 900mm 1300mm 2600mm

More details on the range of Combination machines are available on the Felder Group's website, including full details on the Silent-POWER cutterblock.

Visit Felder's youtube channel for videos on the Felder Group range of machines.

Made in Austria, Hammer machines are for hobby and small business requirements and offer a fantastic price-performance ratio. Part of the Felder Group.
