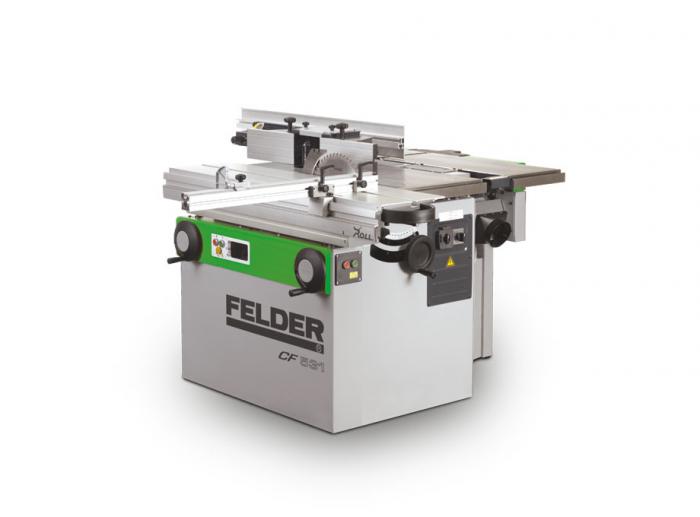

The Felder CF 531 combi is a true all rounder of woodworking. It perfectly integrates performance, versitilty, ease of use and solid build quality into one machine – all at an outstanding price.
It’s amazing how seamlessly components are integrated in this machine, giving you the quickest possible conversion time and extreme ease of use. In such a small space you can carry out professional, planing, thicknessing, spindle, saw and even mortising work. With the CF 531 the sky is the limit.
Please note machine images may show optional equipment.
Make an enquiry about the Felder CF 531 Combination

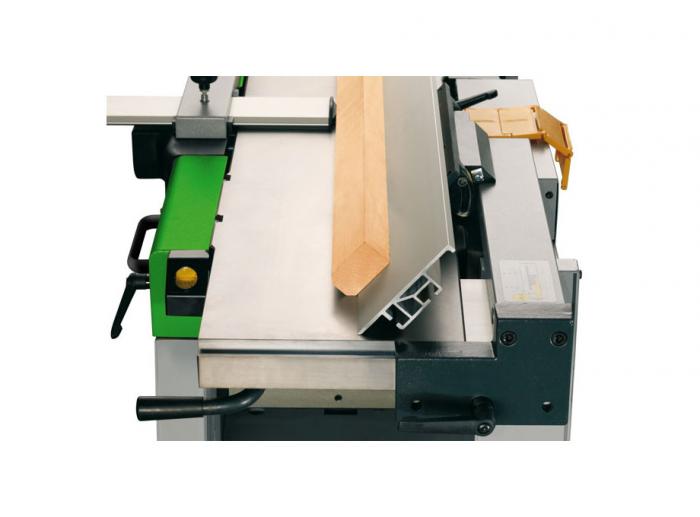

Stable, precision and high-performance fence
The planer fence: a masterpiece of engineering providing stability, precision and performance! The fence can be tilted with end-stops at 90° to 45°.

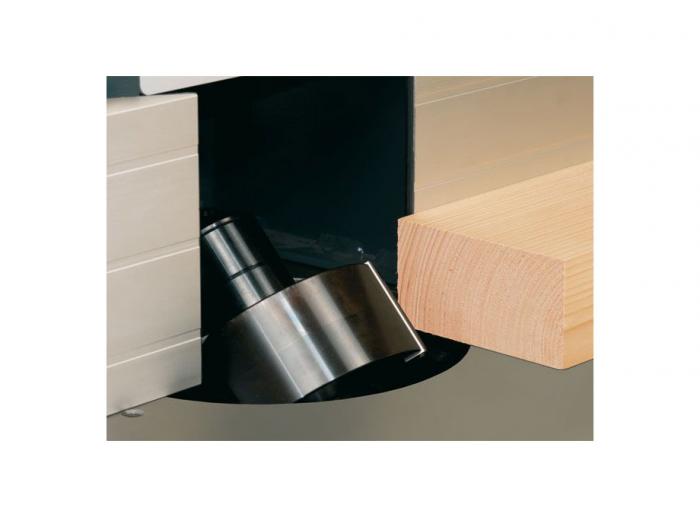

All Felder spindle moulders tilt 90°–45° as standard.
Using the hand wheel the moulder spindle unit can be tilted back to the requested angle, easily and smoothly.

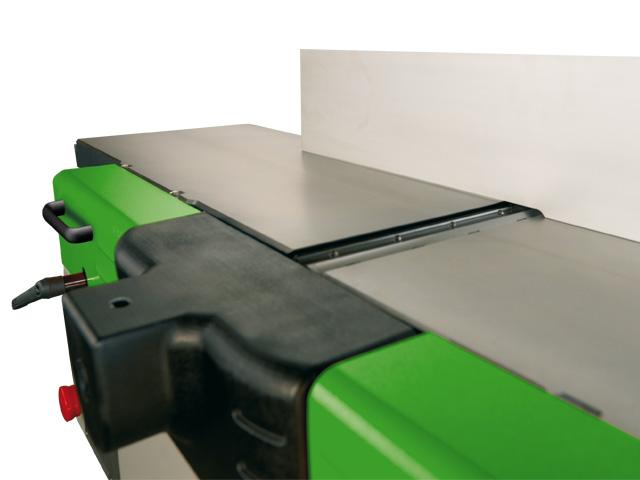

Long and heavy planer tables for excellent results
Long, heavy tables give you ample room and stability for any task.

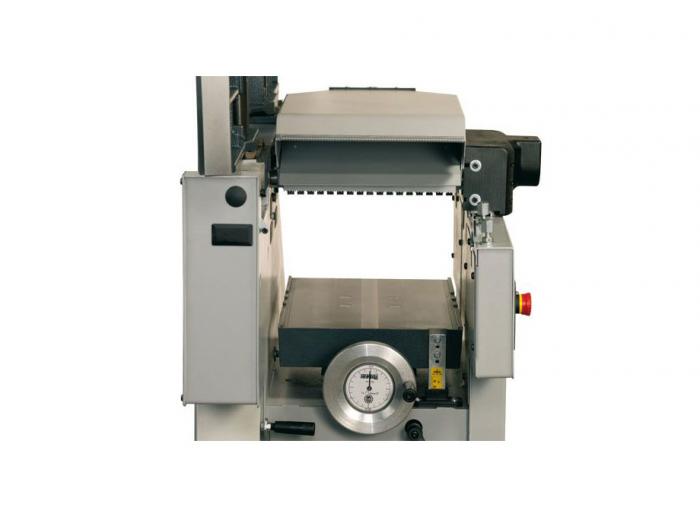

Simple and accurate thicknessing
Thicknessing accuracy to one tenth of a millimetre with the use of the handwheel and its integrated digital display. Maximum thicknessing height is 220 mm.
See the benefit of a Silent-POWER cutterblock
| Crosscut fence length | 1300mm |
|---|---|
| Saw blade Ø | 250 - 315mm |
| Max. cutting height @ 90º | 102mm |
| Maximum cutting depth | 5mm (planer) |
| Rip capacity | 600mm |
| Sliding table length | 1000mm |
| Working width | 310mm (planer) |
| Motor | 3 x 3kW (4hp) single phase (3 ph avail) |
| Length of tables | 1500mm (planer) |
| Feed speed | 6m/min (thicknesser) |
| Spindle travel | 100mm |
| Dust extraction | 120mm |
| Knives | 47 tips, Silent-POWER spiral block |
| Spindle Ø | 30mm |
| Spindle speeds | 3000 / 6000 / 8000 / 10,000rpm |
| Table opening Ø | 180mm max tool diameter |
| Thicknessing width | 306mm |
| Maximum workpiece thickness | 220mm (thicknesser) |
| Weight | 730kg |
Specs shown are for the standard model we offer, but Hammer offer a wide variety of options, so talk to us about customising a machine to suit you.
Specifications are subject to change without notice.
CF 531 Combination
|
C3 31 Combi
|
C3 31 Comfort Combi
|
C3 31 Perform Combi
|
CF 531 Professional Combination
|
|
|---|---|---|---|---|---|
| Motor | 3 x 3kW (4hp) single phase (3 ph avail) | 3 x 3kW (4hp) single phase (3 ph avail) | 3 x 3kW (4hp) single phase (3 ph avail) | 3 x 3kW (4hp) single phase (3 ph avail) | 3 x 3kW (4hp) single phase (3 ph avail) |
| Weight | 730kg | 540kg | 780kg | 780kg | 820kg |
| Thicknessing width | 306mm | 306mm | 306mm | 306mm | 306mm |
| Knives | 47 tips, Silent-POWER spiral block | Silent-Power spiral-knife block | Silent-POWER spiral-knife block | Silent-POWER spiral block | 47 tips, Silent-POWER spiral block |
| Maximum workpiece thickness | 220mm (thicknesser) | 225mm (thicknesser) | 225mm (thicknesser) | 225mm (thicknesser) | 220mm (thicknesser) |
| Feed speed | 6m/min (thicknesser) | 6m/min (thicknesser) | 6m/min (thicknesser) | 6m/min (thicknesser) | 6m/min (thicknesser) |
| Maximum cutting depth | 5mm (planer) | 4mm (planer) | 4mm (planer) | 4mm (planer) | 5mm (planer) |
| Working width | 310mm (planer) | 310mm (planer) | 310mm (planer) | 310mm (planer) | 310mm (planer) |
| Length of tables | 1500mm (planer) | 1400mm (planer) | 1400mm (planer) | 1400mm (planer) | 1500mm (planer) |
| Saw blade Ø | 250 - 315mm | 250 - 315mm | 250 - 315mm | 250 - 315mm | 250 - 315mm |
| Max. cutting height @ 90º | 102mm | 103mm | 103mm | 103mm | 102mm |
| Rip capacity | 600mm | 600mm | 600mm | 600mm | 600mm |
| Sliding table length | 1000mm | 800mm | 2000mm | 2500mm | 2050mm |
| Spindle speeds | 3000 / 6000 / 8000 / 10,000rpm | 3000 / 6000 / 8000 / 10,000rpm | 3000 / 6000 / 8000 / 10,000rpm | 3000 / 6000 / 8000 / 10,000rpm | 3000 / 6000 / 8000 / 10,000rpm |
| Spindle Ø | 30mm | 30mm | 30mm | 30mm | 30mm |
| Spindle travel | 100mm | 100mm | 100mm | 100mm | 100mm |
| Table opening Ø | 180mm max tool diameter | 180mm max tool diameter | 180mm max tool diameter | 180mm max tool diameter | 180mm max tool diameter |
| Crosscut fence length | 1300mm | 900mm | 1300mm | 2600mm | 2600mm |
