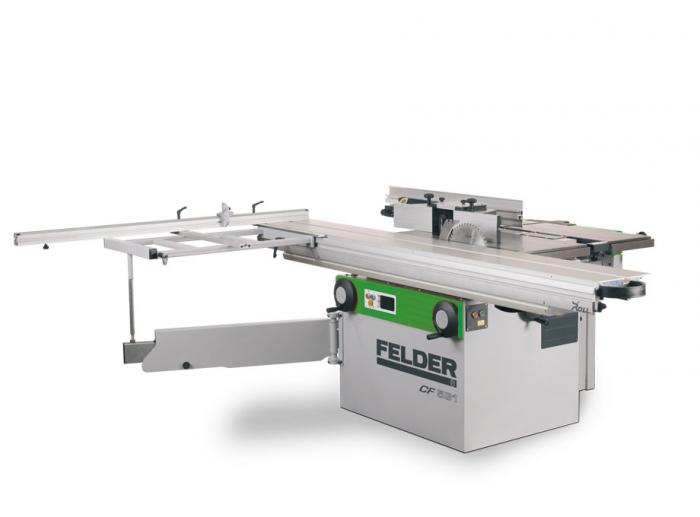

The CF 531 Professional is a true all-rounder of wood-working. Top quality planing, thicknessing, moulding, cutting as well as an option for mortising - all in such a small area.

The professional equpment includes the 240 moulder fence, up to 2500mm sliding table, 1100mm outrigger and 2600mm crosscut fence ensures that even large scale work can be carried out with ease.

Make an enquiry about the Felder CF 531 Professional Combination

Stable, precision and high-performance fence

The planer fence: a masterpiece of engineering providing stability, precision and performance! The fence can be tilted with end-stops at 90° to 45°.

Long and heavy planer tables for excellent results

Simple and accurate thicknessing

Thicknessing accuracy to one tenth of a millimetre with the use of the handwheel and its integrated digital display. Maximum thicknessing height is 220 mm.

All Felder spindle moulders tilt 90°–45° as standard.

Using the hand wheel the moulder spindle unit can be tilted back to the requested angle easily and smoothly.

See the benefit of a Silent-POWER cutterblock

Motor 3 x 3kW single phase (3 phase available)
Weight 820kg
Thicknessing width 306mm
Knives 47 tips, Silent-POWER spiral block
Maximum workpiece thickness 220mm (thicknesser)
Feed speed 6m/min (thicknesser)
Maximum cutting depth 5mm (planer)
Working width 310mm (planer)
Length of tables 1500mm (planer)
Saw blade Ø 250 - 315mm
Max. cutting height @ 90º 102mm
Rip capacity 600mm
Sliding table length 2050mm
Spindle speeds 3000 / 6000 / 8000 / 10,000rpm
Spindle Ø 30mm
Spindle travel 100mm
Table opening Ø 180mm max tool diameter
Crosscut fence length 2600mm
Dust extraction 120mm

Specs shown are for the standard model we offer, but Hammer offer a wide variety of options, so talk to us about customising a machine to suit you.

Specifications are subject to change without notice.

CF 531 Professional Combination
CF 531 Professional Combination
C3 31 Perform Combi
C3 31 Perform Combi
CF 531 Combination
CF 531 Combination
Motor 3 x 3kW single phase (3 phase available) 3 x 3kW single phase (3 phase available) 3 x 3kW single phase (3 phase available)
Weight 820kg 780kg 730kg
Thicknessing width 306mm 306mm 306mm
Knives 47 tips, Silent-POWER spiral block Silent-POWER spiral block 47 tips, Silent-POWER spiral block
Maximum workpiece thickness 220mm (thicknesser) 225mm (thicknesser) 220mm (thicknesser)
Feed speed 6m/min (thicknesser) 6m/min (thicknesser) 6m/min (thicknesser)
Maximum cutting depth 5mm (planer) 4mm (planer) 5mm (planer)
Working width 310mm (planer) 310mm (planer) 310mm (planer)
Length of tables 1500mm (planer) 1400mm (planer) 1500mm (planer)
Saw blade Ø 250 - 315mm 250 - 315mm 250 - 315mm
Max. cutting height @ 90º 102mm 103mm 102mm
Rip capacity 600mm 600mm 600mm
Sliding table length 2050mm 2500mm 1000mm
Spindle speeds 3000 / 6000 / 8000 / 10,000rpm 3000 / 6000 / 8000 / 10,000rpm 3000 / 6000 / 8000 / 10,000rpm
Spindle Ø 30mm 30mm 30mm
Spindle travel 100mm 100mm 100mm
Table opening Ø 180mm max tool diameter 180mm max tool diameter 180mm max tool diameter
Crosscut fence length 2600mm 2600mm 1300mm

More details on the range of Combination machines are available on the Felder Group's website, including full details on the Silent-POWER cutterblock.

Visit Felder's youtube channel for videos on the Felder Group range of machines.

Felder offer woodworking machine specialists for industry, business and hobby use. Tradition – Innovation – Perfection.
