Everything you need for perfect woodworking results in just two and a half square metres!

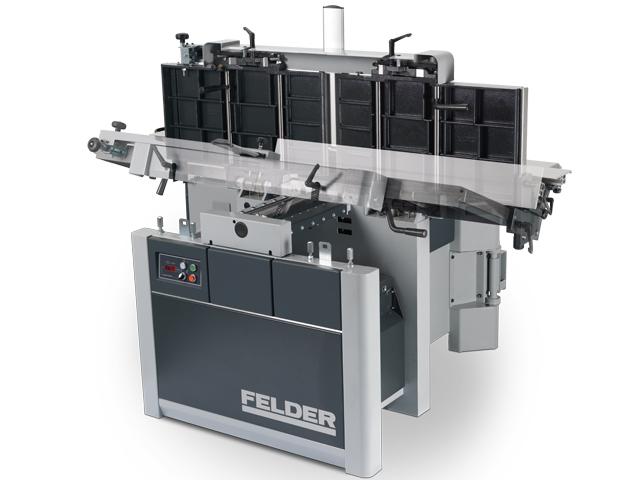

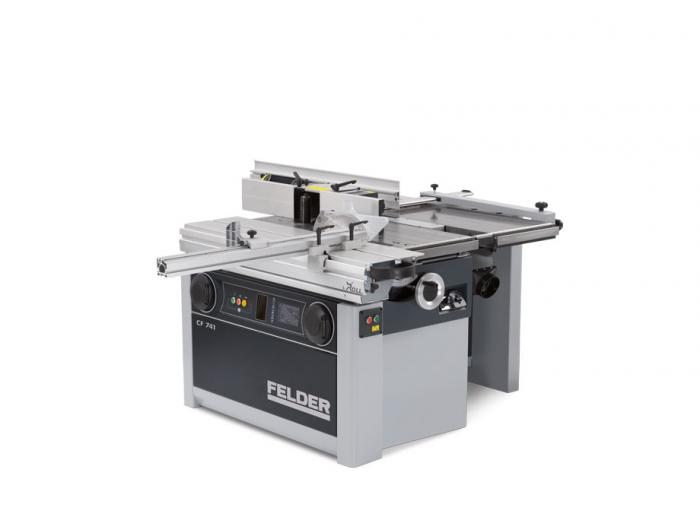

The Felder CF 741 woodworking centre combines the advantages of five stand alone machines and brings high performance, precision and shortest changeover times into every workshop. Planing, moulding, cutting and drilling - a top quality workshop in one machine.
Please note machine images may show optional equipment.
Make an enquiry about the Felder CF 741 Combination

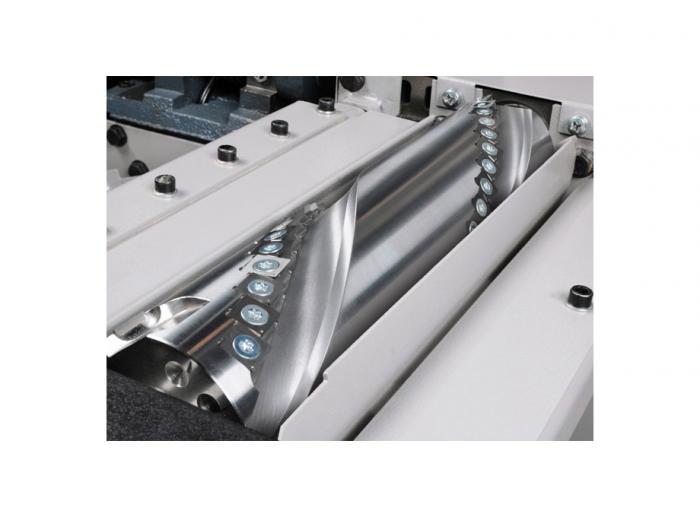

Silent-POWER cutterblock
The advantages at a glance...
- Extremely quiet, noise is reduced by half
- Usable blade life twenty times longer than standard blades
- Larger chip space
- Tear-free planing results
- Four-sided blades
- Reduced power consumption
Quick conversion from planer to thicknesser
Spring assisted planer tables make conversion simple, and fast.

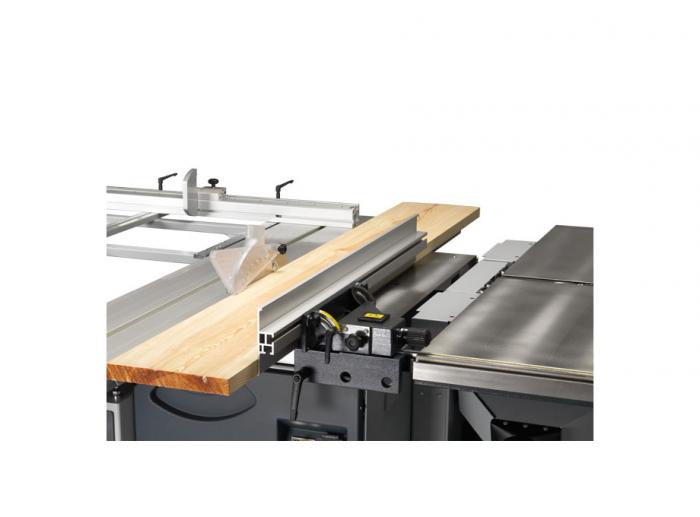

Large rip capacity
The rip capacity is 930 mm. Smooth and precise, the rip fence can be locked into position with one hand, with a fine adjustment setting to give you the accuracy required. The scale is easily readable and well integrated into the machine.

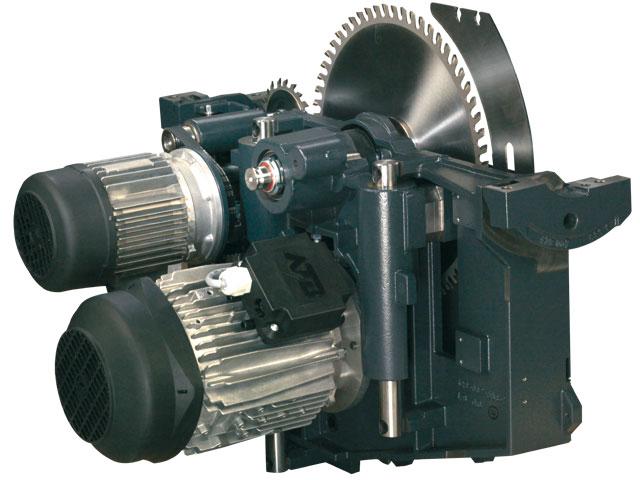

Felder 700 series saw aggregate for operating smoothness and efficiency
The solid cast iron aggregate with a cutting height of 104 mm when using a 315mm saw blade meets the demands of today's woodworking challenges. A 6 year guarantee on the patented tilting guide segment system "Easy-Glide" guarantees maximum reliability even when being tested to the max. The lubrication free system saves you time and money, while high quality system components and manufacturing quality give exact results.

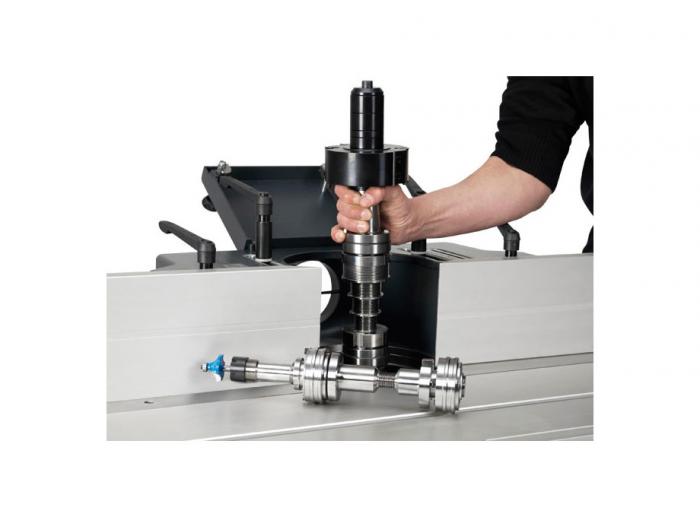

Felder quick-change spindle system
The advantages of the Felder quick change spindle system:
- Quick and easy change of spindle sizes
- ability to interchange between 30, 40, 50 mm, 1 ¼’’ diameter spindles
- ability to insert a high speed router spindle for router bits
- automatic repetition of settings for production work
Watch 'Felder's CF 741S - the winning combination'
See the benefit of a Silent-POWER cutterblock
| Crosscut fence length | 1100mm |
|---|---|
| Saw blade Ø | 250 - 315mm |
| Max. cutting height @ 90º | 104mm (with 315mm blade) |
| Maximum cutting depth | 4mm (planer) |
| Sliding table length | 1300mm |
| Working width | 410mm (planer) |
| Motor | 3 x 3kW single phase (3 ph to 7.35kW avail) |
| Length of tables | 1650mm (planer) |
| Feed speed | 6 & 12m/min (thicknesser) |
| Spindle travel | 115mm |
| Dust extraction | 120mm |
| Knives | 63 tips, Silent-POWER spiral block |
| Spindle Ø | 30mm |
| Spindle speeds | 3500 / 6500 / 8000 / 10,000rpm |
| Table opening Ø | 230mm max tool diameter |
| Thicknessing width | 404mm |
| Maximum workpiece thickness | 220mm (thicknesser) |
| Weight | 960kg |
Specs shown are for a standard model, but Felder offer a wide variety of options, so talk to us about customising a machine to suit you.
Specifications are subject to change without notice.
CF 741 Combination
|
CF 531 Combination
|
CF 741 Professional
|
|
|---|---|---|---|
| Motor | 3 x 3kW single phase (3 ph to 7.35kW avail) | 3 x 3kW (4hp) single phase (3 ph avail) | 3 x 3kW single phase (3phase to 7.35kW avail) |
| Weight | 960kg | 730kg | 1030kg |
| Thicknessing width | 404mm | 306mm | 404mm |
| Knives | 63 tips, Silent-POWER spiral block | 47 tips, Silent-POWER spiral block | 63 tips, Silent-POWER spiral block |
| Maximum workpiece thickness | 220mm (thicknesser) | 220mm (thicknesser) | 220mm (thicknesser) |
| Feed speed | 6 & 12m/min (thicknesser) | 6m/min (thicknesser) | 6 & 12m/min (thicknesser) |
| Maximum cutting depth | 4mm (planer) | 5mm (planer) | 4mm (planer) |
| Working width | 410mm (planer) | 310mm (planer) | 410mm (planer) |
| Length of tables | 1650mm (planer) | 1500mm (planer) | 1650mm (planer) |
| Saw blade Ø | 250 - 315mm | 250 - 315mm | 250 - 315mm |
| Max. cutting height @ 90º | 104mm (with 315mm blade) | 102mm | 104mm (with 315mm blade) |
| Sliding table length | 1300mm | 1000mm | 2050mm |
| Spindle speeds | 3500 / 6500 / 8000 / 10,000rpm | 3000 / 6000 / 8000 / 10,000rpm | 3500 / 6500 / 8000 / 10,000rpm |
| Spindle Ø | 30mm | 30mm | 30mm |
| Spindle travel | 115mm | 100mm | 115mm |
| Table opening Ø | 230mm max tool diameter | 180mm max tool diameter | 230mm max tool diameter |
| Crosscut fence length | 1100mm | 1300mm | 1100mm |
| Dust extraction | 120mm | 120mm | 120mm |
