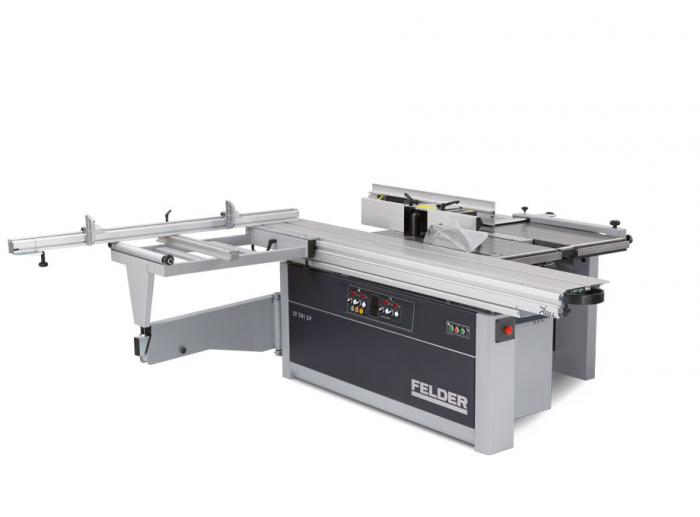

Versatility in perfection.

The all-rounder impresses with its clear layout, combining a small space requirement excellent quality in planing, cutting, moulding and slot drilling.

  • High quality 700 series aggregates guarantee reliable quality and precision
  • Simple, syncronised opening of the solid planing tables
  • Optimised planing fence design ensures the smallest possible space requirement
  • 10 year guarantee: 'X-roll' sliding table for maximum load bearing
  • Tried and tested Felder spindle quick change system:

Please note machine images may show optional equipment.

Make an enquiry about the Felder CF 741S Professional

Watch 'Felder's CF 741S - the winning combination'


See the benefit of a Silent-POWER cutterblock

Motor 3 x 3kW single phase (3phase to 7.35kW avail)
Weight 1030kg
Thicknessing width 404mm
Knives 63 tips, Silent-POWER spiral block
Maximum workpiece thickness 220mm (thicknesser)
Feed speed 6 & 12m/min (thicknesser)
Maximum cutting depth 4mm (planer)
Working width 410mm (planer)
Length of tables 1650mm (planer)
Saw blade Ø 250 - 315mm
Max. cutting height @ 90º 104mm (with 315mm blade)
Sliding table length 2050mm
Spindle speeds 3500 / 6500 / 8000 / 10,000rpm
Spindle Ø 30mm
Spindle travel 115mm
Table opening Ø 230mm max tool diameter
Crosscut fence length 1100mm
Dust extraction 120mm
Outrigger table size 1100mm

Specs shown are for a standard model, but Felder offer a wide variety of options, so talk to us about customising a machine to suit you.

Specifications are subject to change without notice.

CF 741S Professional
CF 741S Professional
CF 741 Combination
CF 741 Combination
CF 741 Professional
CF 741 Professional
Motor 3 x 3kW single phase (3phase to 7.35kW avail) 3 x 3kW single phase (3phase to 7.35kW avail) 3 x 3kW single phase (3phase to 7.35kW avail)
Weight 1030kg 960kg 1030kg
Thicknessing width 404mm 404mm 404mm
Knives 63 tips, Silent-POWER spiral block 63 tips, Silent-POWER spiral block 63 tips, Silent-POWER spiral block
Maximum workpiece thickness 220mm (thicknesser) 220mm (thicknesser) 220mm (thicknesser)
Feed speed 6 & 12m/min (thicknesser) 6 & 12m/min (thicknesser) 6 & 12m/min (thicknesser)
Maximum cutting depth 4mm (planer) 4mm (planer) 4mm (planer)
Working width 410mm (planer) 410mm (planer) 410mm (planer)
Length of tables 1650mm (planer) 1650mm (planer) 1650mm (planer)
Saw blade Ø 250 - 315mm 250 - 315mm 250 - 315mm
Max. cutting height @ 90º 104mm (with 315mm blade) 104mm (with 315mm blade) 104mm (with 315mm blade)
Sliding table length 2050mm 1300mm 2050mm
Spindle speeds 3500 / 6500 / 8000 / 10,000rpm 3500 / 6500 / 8000 / 10,000rpm 3500 / 6500 / 8000 / 10,000rpm
Spindle Ø 30mm 30mm 30mm
Spindle travel 115mm 115mm 115mm
Table opening Ø 230mm max tool diameter 230mm max tool diameter 230mm max tool diameter
Crosscut fence length 1100mm 1100mm 1100mm
Dust extraction 120mm 120mm 120mm

More details on the range of Combination machines are available on the Felder Group's website, including full details on the Silent-POWER cutterblock.

Visit Felder's youtube channel for videos on the Felder Group range of machines.

Felder offer woodworking machine specialists for industry, business and hobby use. Tradition – Innovation – Perfection.

Visit the Felder site
