A range of premium Austrian-made industrial edgebanders for high demand environments.

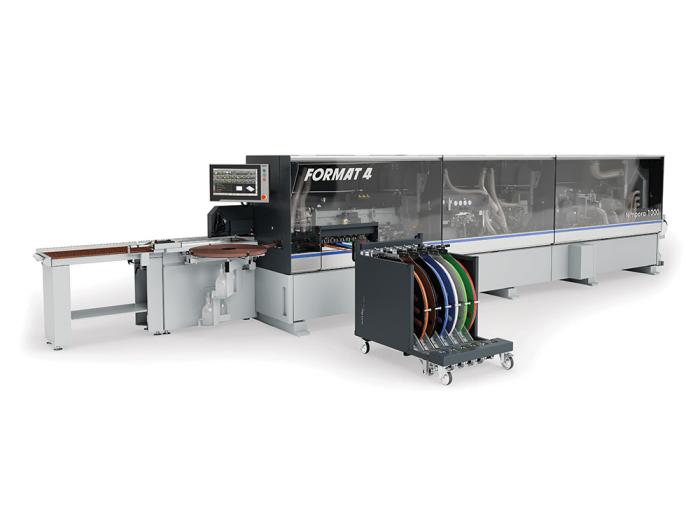

The new Format-4 tempora F1000 redefines industrial edgebanding with a focus on durability, precision and efficiency - delivering maximum versatility and performance for modern production needs.
Manufactured in Austria to the highest standards, the F1000 series is available in three customisable models - Classic, Professional, and Performance - allowing the flexibility to configure the ideal edgebanding solution for your specific processing requirements.
Make an enquiry about the Format-4 Tempora F1000 Edgebander

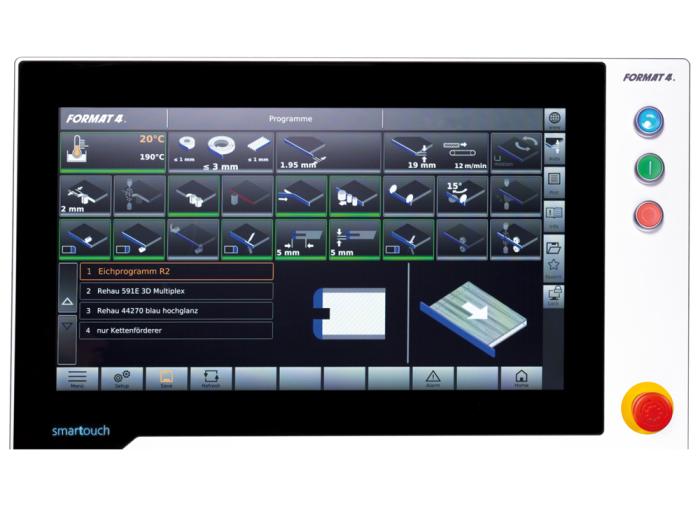

18" Smartouch control
The smartouch control unit with network connection reduces manual settings to a minimum and enables fast, simple and intuitive selection and control of the units as well as complete monitoring of all machine functions directly from the screen.
Solid and Stable
The F1000 impresses with its solid and stable frame construction. It is this machine frame construction which paves the way for precise and perfect results. In addition, the longer stabilization zones between the units ensure that the machine runs more smoothly. This ensures even greater repeatability and a longer service life.

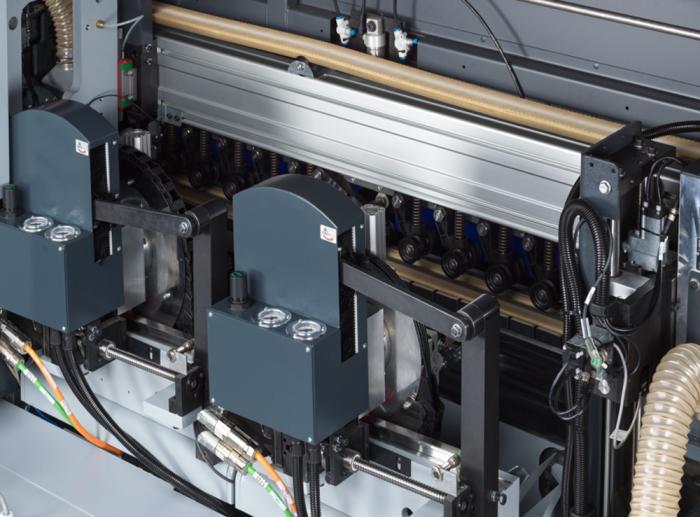

Upper pressure bar incl. belt feed drive e-motion
The upper pressure bar of the Tempora F1000 comprises a torsion-resistant aluminum tension profile which ensures a uniform pressure distribution on the workpiece.

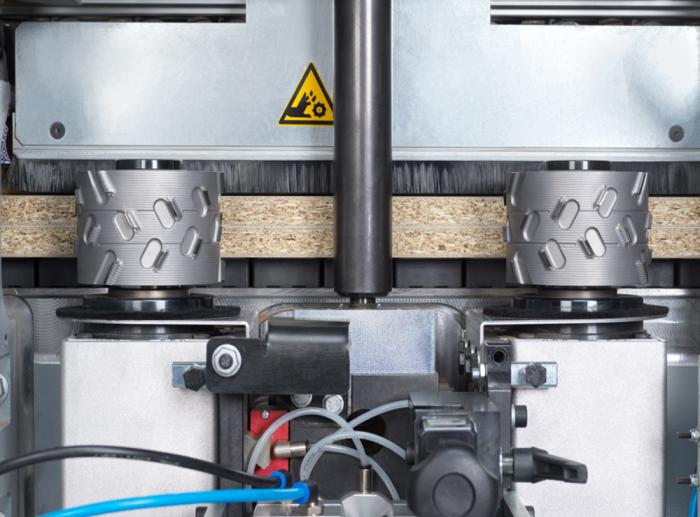

Centric Edge Jointing Unit
The edge jointing unit of the Tempora F1000 is equipped with two powerful motors and uses two diamond jointing cutters for precise and consistent processing. The unit aligns itself centrically to the height of the workpiece, which prevents one-sided wear and extends the service life of the cutters.

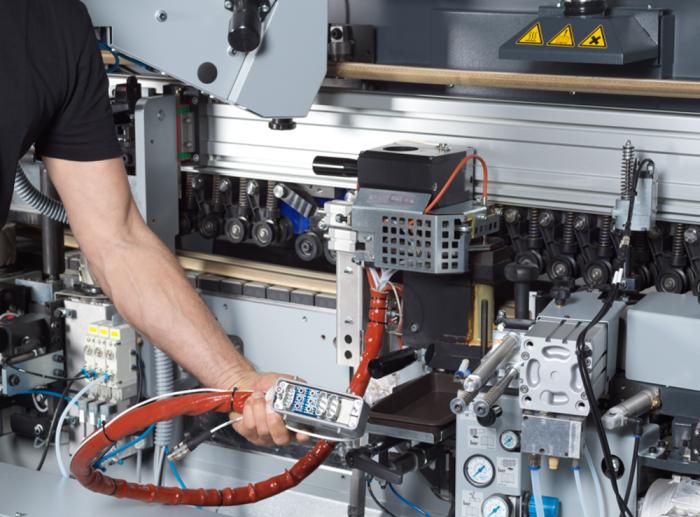

Top mounted controlled glue pot. cleaning function
The top-mounted glue pot of the Tempora F1000 features a Teflon coating and a capacity of 0.6 kg for the processing of EVA, PO and PUR hotmelt glues. The glue is applied with great precision using a finely adjustable, textured glue roller which operates in an application-controlled manner. A synchronized and counter-rotation function cleans the glue roller during processing to prevent streaking. The quick-change system complete with a convenient plug as well as integrated rinsing and cleaning function, including a silicone drip tray, ensures easy handling and maintenance.
2-Motor corner rounding unit
The corner rounding unit offers excellent precision and flexibility, even when it comes to soft and postforming workpieces. Equipped with two independent motors each running at 12,000 rpm, it enables the processing of face and longitudinal edges with an edge thickness between 0.4-3.0 mm and workpiece heights between 10-60 mm.
- Automation E-motion
- Anti-adhesive spray unit prior to Pre-milling
- Top Pressure Beam - Servo Adjustable
- Driven Top Belt Feed
- Infeed Fence - Servo Adjustable
- Pre-Milling Unit with Diamond Tooling
- Gravity Fed Quick-Change EVA & PUR Glue Application Unit

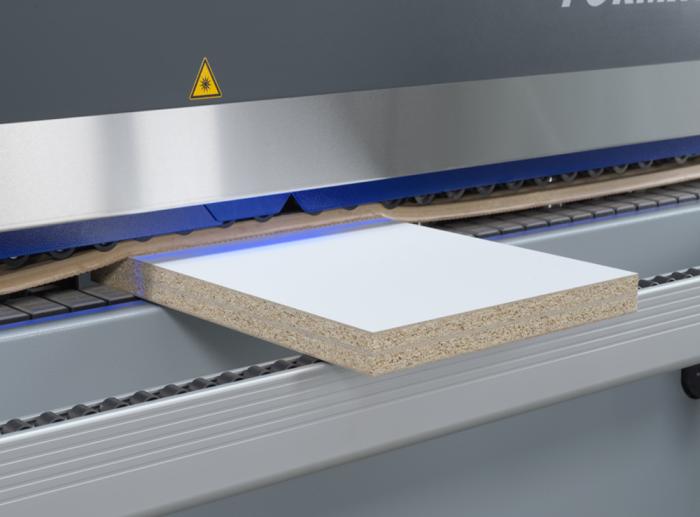

- advantEdge Hot Air Unit for Laser Tape Processing (Optional)
- Pressure Zone - Servo Adjustable
- End Trimming Unit
- Fine Trim Trimming Unit - Servo Adjustable
- Unique 2 Motor Corner Rounding Unit with Servo Adjustment
- Multi-Profile Top & Bottom Radius Scraping Unit - Servo Adjustable
- Flat Surface Scraping Unit
- Detergent Spray Unit
- Buffing Unit
| Panel thickness | 8-60mm |
|---|---|
| Tape thickness | 0.4-12mm |
| Feed speed | 12-25m/min |
Specifications are subject to change without notice.
