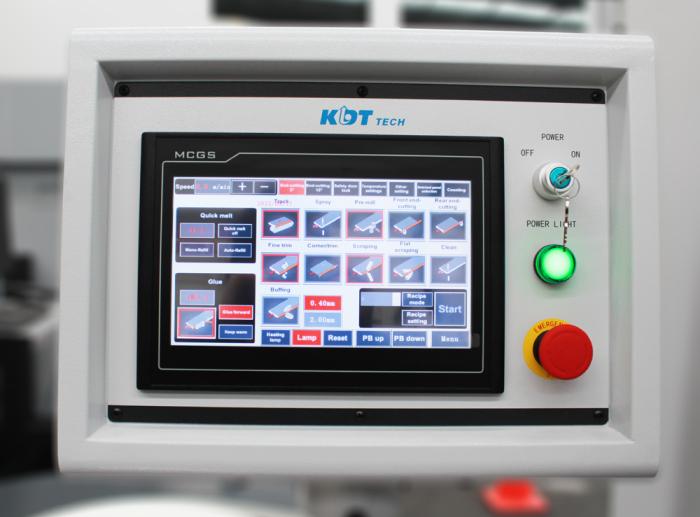

Control Panel

KDT’s large 10” intuitive touchscreen sets new standards in user convenience.

You’re in total control. Select and adjust processing units, height of the feed beam, position of the infeed fence and pressure zone. Trouble shooting diagnostics and service reminders also help keep your KE-268JSA running smoothly.

Infeed Fence

A polished chrome steel infeed fence and table provide ample support to feed workpieces easily and accurately.

Pre-Milling Unit with Diamond Tooling

For removal of imperfections in the panel edge and edge swelling immediately prior to gluing. Improves edgebanding quality, appearance and bond strength.

EVA Glue Pre-Melting

No more unexpected glue run-outs.

The pre-melt unit is fully automatic. A 12.5kg glue granule reservoir in the machine bed delivers glue granulate to the 5kg pre-melt hopper via compressed air.

The pre-melt unit monitors the glue level and automatically replenishes the glue tank.

Only a small amount of glue is pre-melted to maintain excellent glue integrity. The means you are always applying fresh clean glue to the workpiece. Enhancing bond strength and minimising glue line appearance.

EVA Glue Quick-Change Gluing Unit

A quick-change glue pot means colour changes are fast and simple. Swapping the glue pot out takes less than two minutes. (Additional pots are available separately)

The EVA gravity fed glue-pot ensures glue is exposed once during the application process and not recycled causing contamination in the glue-pot.

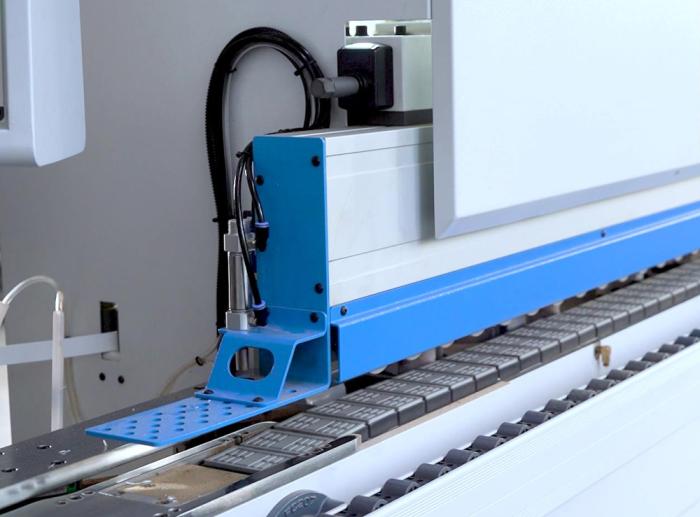

Pressure Unit

KDT infeed guides and rollers are mounted on 10mm steel plates. 3 pneumatic pressure rollers ensure the tape is firmly pressed against the workpiece.

End Saw Unit

Two independent saw units glide smoothly on high-precision THK linear guides, line control positioning ensures the blades engage precisely at the required moment.

Adjustments to tape overhang can be made directly from the touchscreen control panel.

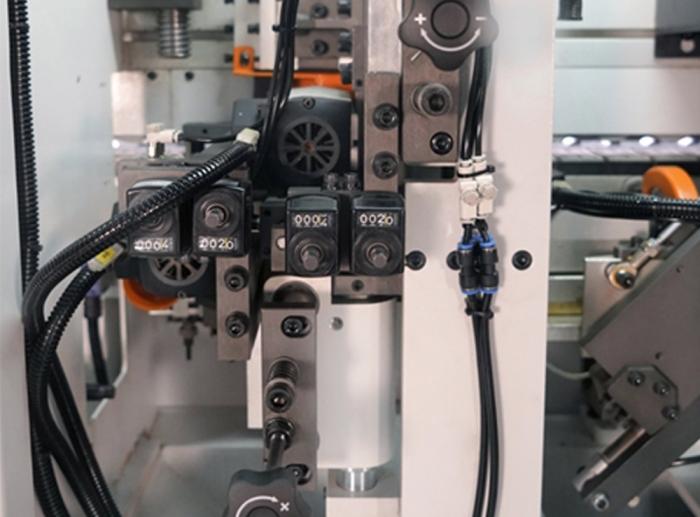

Fine Trimming Unit

Adjustments to the fine trimming units are made via the mechanical digital dials providing repeatable precision during setup.

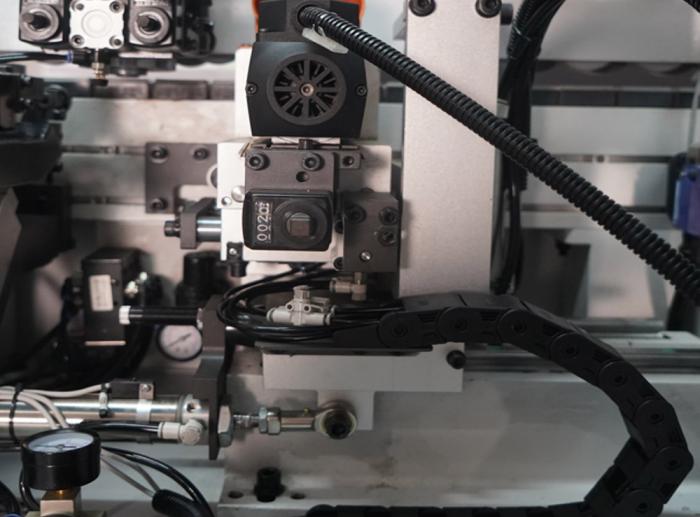

Corner Rounding Unit

The single motor unit ensures consistent, professional-quality R1 corner results, delivering a smooth radius finish that transitions flawlessly between horizontal and vertical surfaces.

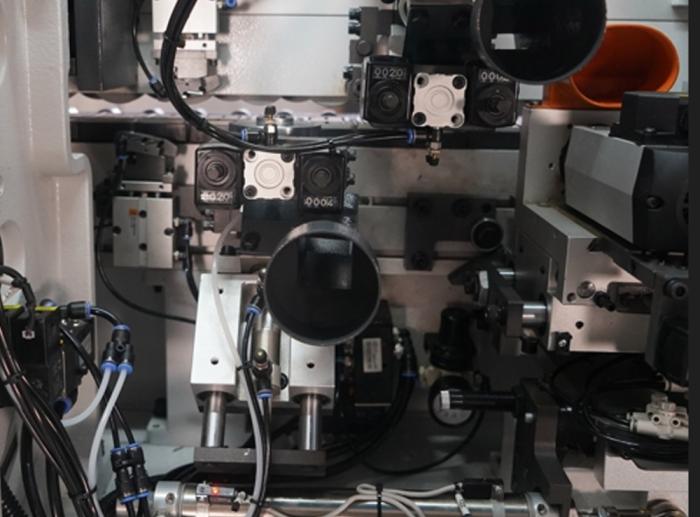

Radius Scraping Unit

The top and bottom radius scrapers smooth the machined edge, eliminating cutter marks left behind by the top and bottom trimming units – leaving a consistent professional finish.

Twin Blade Flat Scraping Unit

A unique twin-blade system, offering superior performance compared to the traditional single-blade setup.

The twin blades deliver enhanced scraping precision, resulting in better quality finishes and significantly reducing the need for manual cleaning of workpieces after edgebanding.

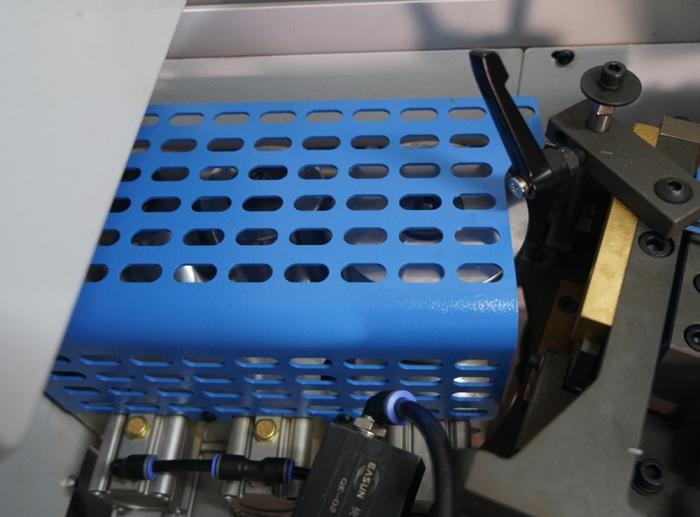

Buffing Unit

For final cleaning and polishing, the buffers are mounted on extra heavy mounts, ensuring a finish that enhances the overall quality of the workpiece.
