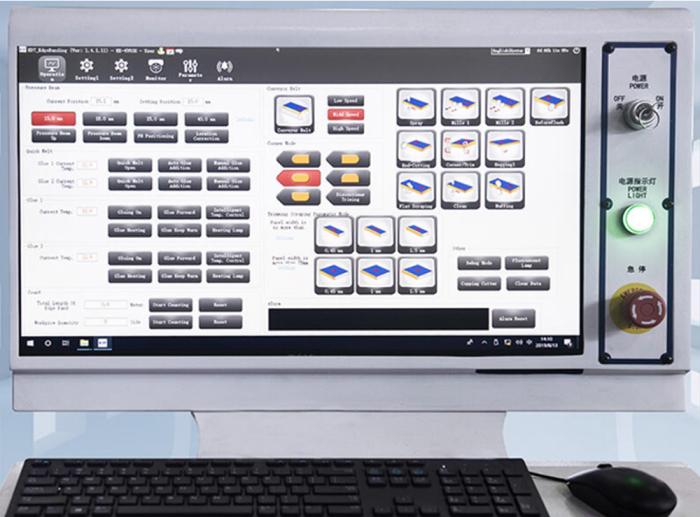

Control Panel

The large 21.5” intuitive screen sets new standards in user convenience.

Select and adjust processing units, height of the feed beam, position of the infeed fence and pressure zone.

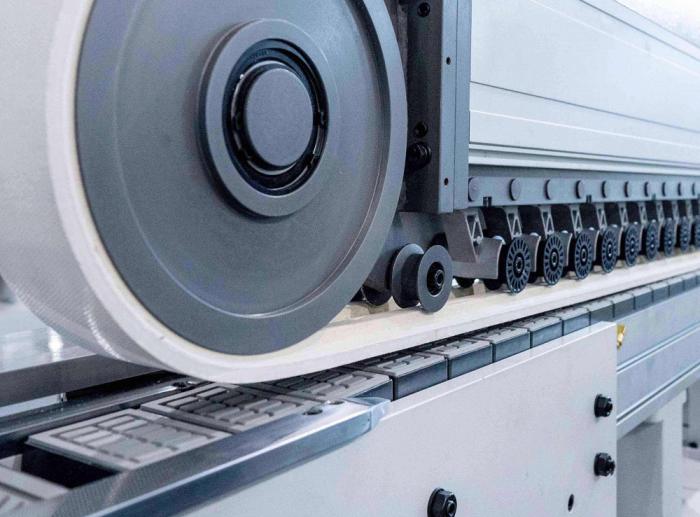

Top Pressure Beam and Belt Feed Unit

A large contact surface area to hold the workpiece firmly in place as it moves down the machine past the processing units.

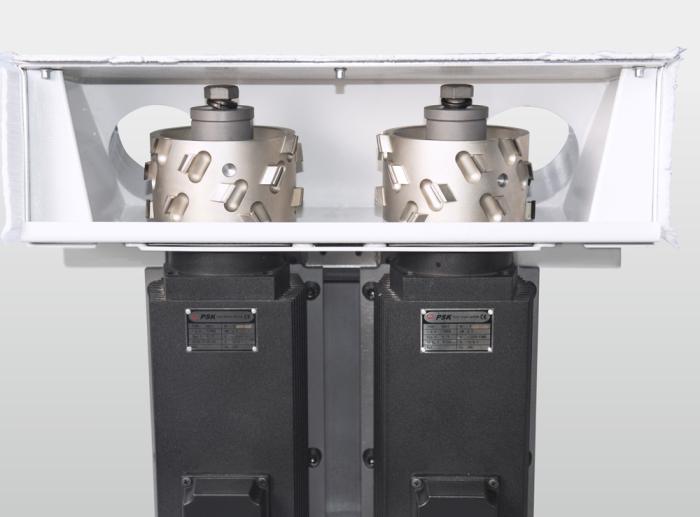

Pre-Milling Unit with Diamond Tooling

Removes edge imperfections and swelling immediately before gluing, significantly improving edgebanding quality, appearance and bond strength.

2 diamond cutter heads equipped with diamond tooling for superior durability and precision.

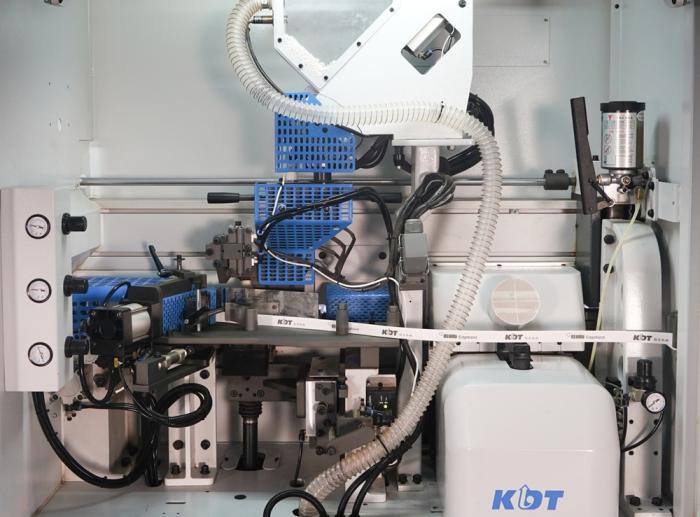

EVA Glue Pre-Melting Unit

No more unexpected glue run-outs.

The pre-melt unit is fully automatic. A 12.5kg glue granule reservoir in the machine bed delivers glue granulate to the 5kg pre-melt hopper via compressed air.

Only a small amount of glue is pre-melted to maintain excellent glue integrity. The means you are always applying fresh clean glue to the workpiece, enhancing bond strength and minimising glue line appearance.

EVA Glue Quick-Change Gluing Unit

A quick-change glue pot means colour changes are fast and simple. Swapping the glue pot out takes less than two minutes. (Additional pots are available separately)

The EVA gravity fed glue-pot ensures glue is exposed once during the application process and not recycled causing contamination in the glue-pot.

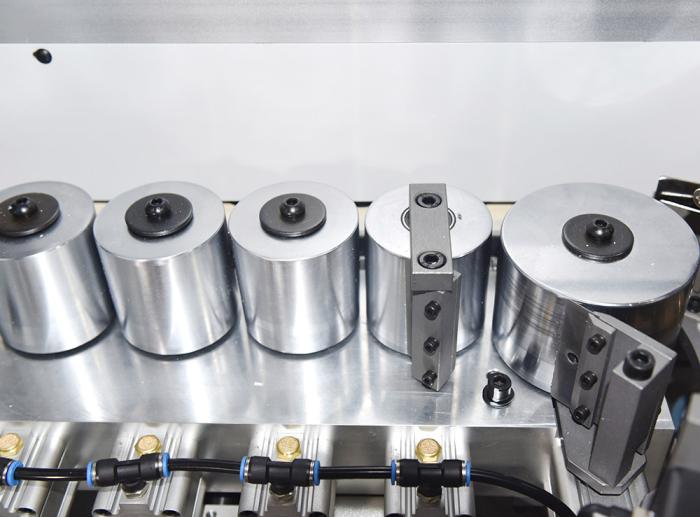

Pressure Unit

KDT infeed guides and rollers are mounted on 10mm steel plates. 4 pneumatic pressure rollers ensure the tape is firmly pressed against the workpiece.

End Saw Unit

Two independent saw units glide smoothly on high-precision THK linear guides, line control positioning ensures the blades engage precisely at the required moment.

Adjustments to tape overhang can be made directly from the touchscreen control panel.

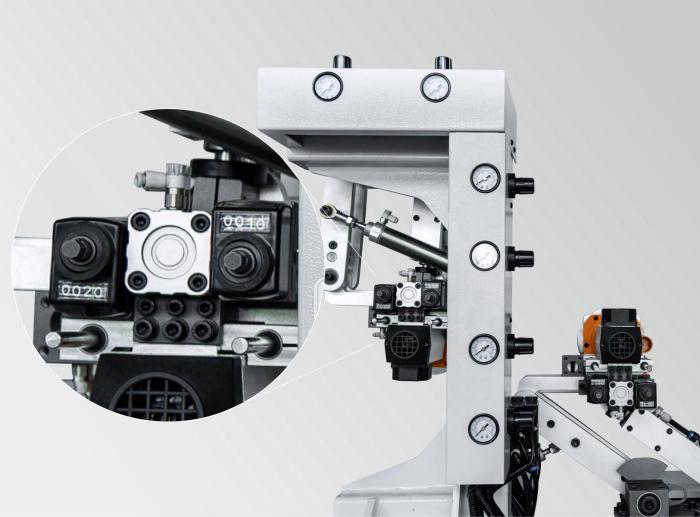

Fine Trimming Unit

Precise adjustments to the fine trimming units are made via the touchscreen, with four servo motors delivering repeatable accuracy for quick and accurate setup.

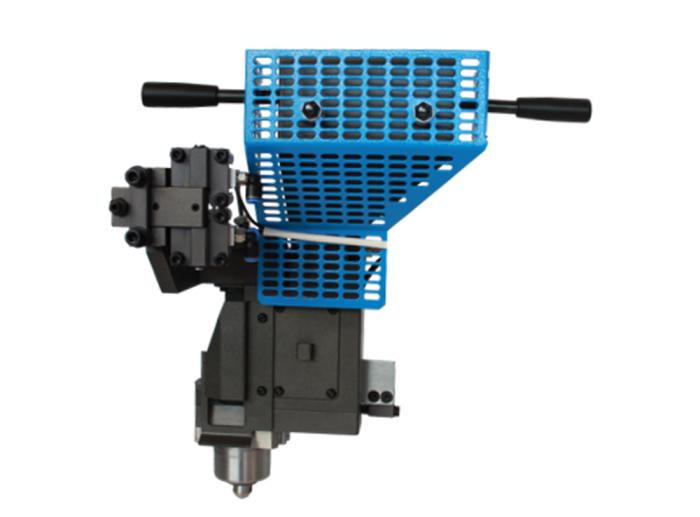

Corner Rounding Unit

Controlled directly from the touchscreen, the two-motor unit delivers flawless results on square-edge panels as well as rounding on post-formed and finger-pull drawers.

Select full corner rounding, front only, rear only, top only, bottom only, or 360° rounding — all at the touch of an icon.

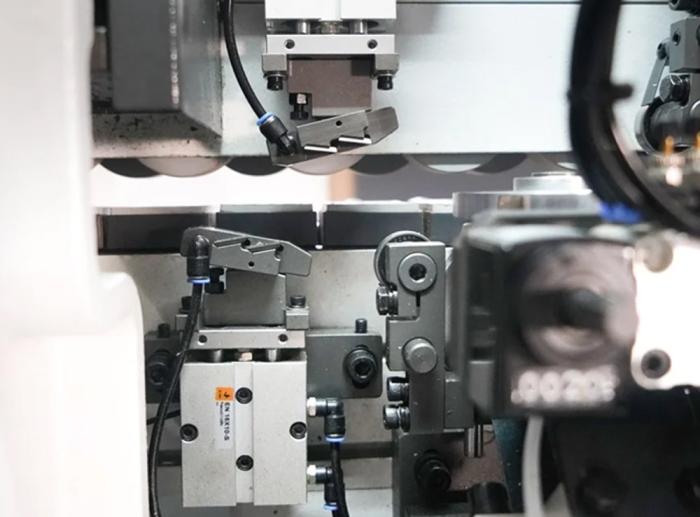

Radius Scraping Unit

Precise adjustments to the radius scrapers units are made via the touchscreen, with four servo motors delivering repeatable accuracy ensuring a smooth, high-quality finish.

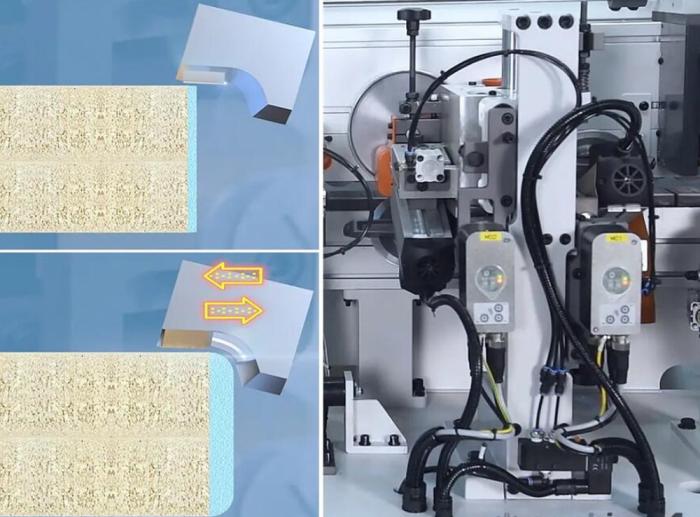

Radius Scrapings Gripper Unit

The Radius Scrapings Gripper Unit automatically removes excess radius scrapings during the edgebanding process. It precisely grips and eliminates unwanted material from the edges as part of the standard edgebanding operation.

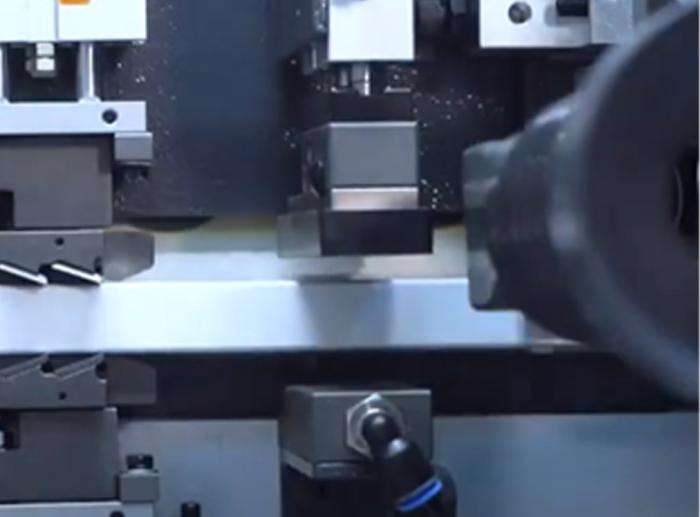

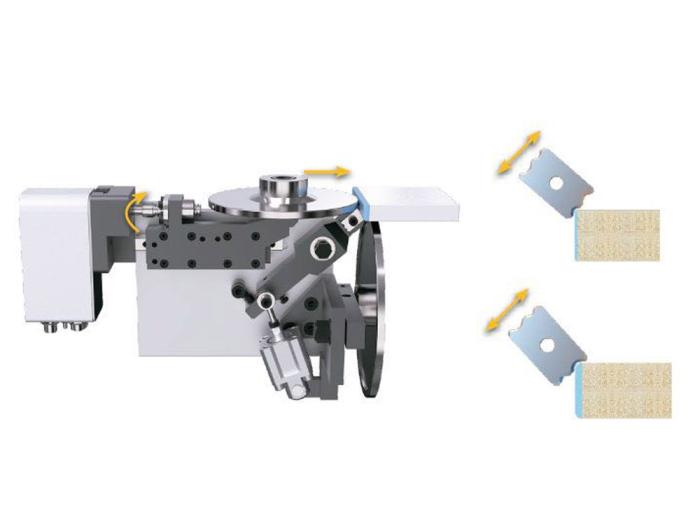

Twin Blade Flat Scraping Unit

A unique twin-blade system, offering superior performance compared to the traditional single-blade setup.

The twin blades deliver enhanced scraping precision, resulting in better quality finishes and significantly reducing the need for manual cleaning of workpieces after edgebanding.

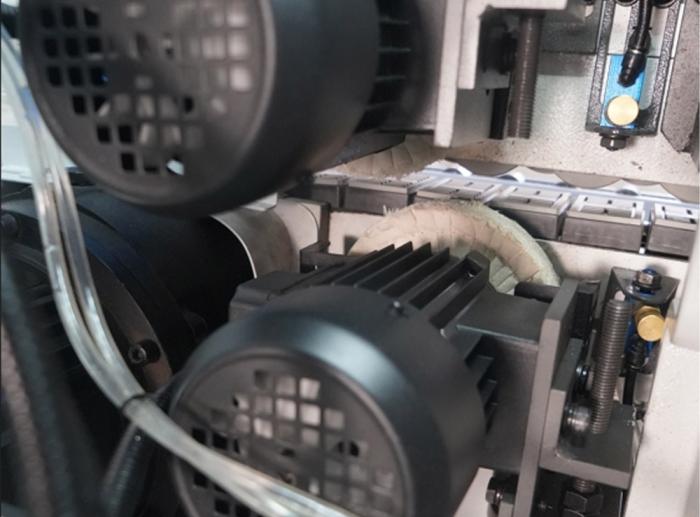

Buffing Unit

For final cleaning and polishing, the buffers are mounted on extra-heavy-duty supports to ensure stability and deliver a flawless finish that enhances the overall quality of the workpiece.
