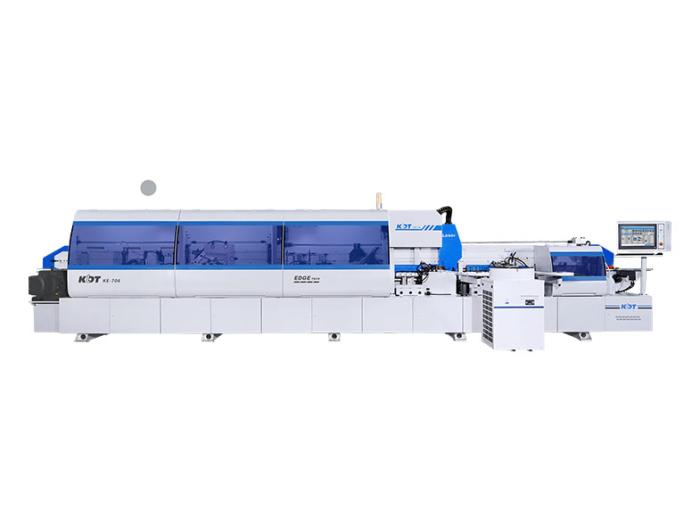

KDT KE-710GBSUT Laser Edgebander
The KE-710 GBSUT Laser 3.0 Edgebander offers affordable processing of laser tape with a genuine laser unit. Effortlessly switch between laser tape and standard tape at the press of a button.
Stay ahead of your competition and enjoy the benefits of this fully loaded, auto-adjustable, industrial laser and glue Edgebander with 10 independent servo motors for quick and precise adjustments from the control panel to an accuracy of 0.01mm.
Make an enquiry about the KDT KE-710GBSUT Laser Edgebander
- Anti-adhesive spray unit prior to Pre-milling
- Top Belt Pressure Beam - Servo Adjustable
- Solid Polished Steel Infeed Fence - Servo Adjustable
- Pre-Milling Unit with Diamond Tooling
- Gravity Fed Quick-Change EVA Hot-Melt Glue Application Unit
- Dedicated Pressure Zone for Standard Tape - Servo Adjustable
- Laser Unit for Processing Laser tape
- Dedicated Pressure Zone for Laser Tape - Servo Adjustable
- End Trimming Unit
- Rough Trim Trimming Unit
- Fine Trim Trimming Unit - Servo Adjustable
- 2 Motor Corner Rounding Unit – 2-Point Pneumatic Adjustment
- Multi-Profile Top & Bottom Radius Scraping Unit - Servo Adjustable
- Flat Surface Scraping Unit
- Detergent Spray Unit
- First Buffing Unit
- Second Buffing Unit
| Panel thickness | 9 - 60mm |
|---|---|
| Tape thickness | 0.4 - 3mm (0.8 - 3mm laser) |
| Feed speed | 15, 18 & 24m/min |
| Dimensions (L x W x H) | 8800 x 940 x 1960mm |
| Weight | 4000kg |
Specifications are subject to change without notice.
