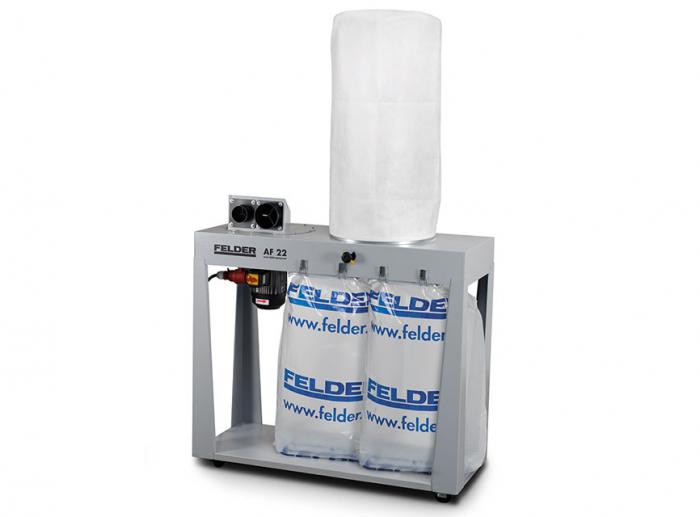

Made in Austria, the AF 22 is a top seller among the standard extraction units. With a footprint of only 1300 x 520 mm, the AF 22 is a real space-saver. Its vacuum power measures an exceptional 3100 m³/h and the 120 + 80mm ports allow it to be connected directly to any Felder saw with an under-table outlet and an overhead guard outlet.
The two chip bags can hold up to 400 litres and are especially easy to change thanks to the quick-change bag system.
The AF22 is provided with a Class-L filter and can be optionally upgraded to a Class-M filter (Class-M is the recommended filtration level when working with wood-dust according to EN 60335-2-69:2012).
Make an enquiry about the Felder AF22 Extractor
Felder AF22 Quick collection bag changeover
2 Quick-lock clamps on the front of the machine allow the most ergonomic changeover of plastic bags on a mobile extractor, making an otherwise difficult and dirty task extremely quick and clean.
Optional Class-M Filters
The optional Class-M filters provide a higher degree of dust filtration for reduced contamination of your workshop. This is an active step towards ensuring the health of you and your workers.
Optional Class-M Filter Cleaner
The optional Class-M filter cleaner keeps the filter clear of blockages for consistent high airflow results.
Product codes:
401-256 - Felder AF22 mobile dust extractor
02-1-132 - Felder Class-M polyster cartridge filter
401-270 - Felder manual cleaner for Class-M cartridge filters
| Motor | 3kW (4hp) |
|---|---|
| Air pressure | 2510Pa |
| Air flow | 51.7m³/min (1825CFM) |
| Dust extraction | 120 + 80mm |
| Collection bag | 2 x 200L |
| Weight | 75kg |
Specifications are subject to change without notice.
AF22 Extractor
|
AF16 Extractor
|
AF22 Extractor Stationary
|
|
|---|---|---|---|
| Motor | 3kW (4hp) | 2.2kW (3hp) | 4kW (5.5HP) |
| Air flow | 51.7m³/min (1825CFM) | 50m³/min (1766CFM) | 51.7m³/min (1825CFM) |
| Dust extraction | 120 + 80mm | 160mm | 200mm |
| Collection bag | 2 x 200L | 1 x 200L | 2 x 200L |
| Weight | 75kg | 52kg | 65kg |
| Air pressure | 2510Pa | 2150Pa | 2510Pa |
