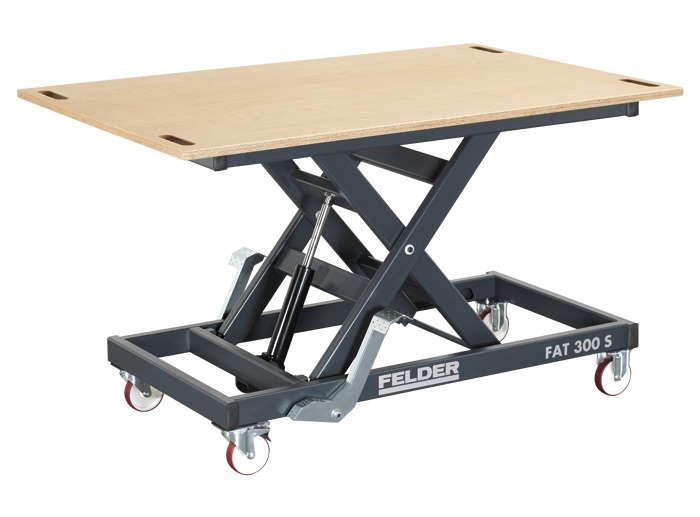

Working table, stacking table or equipment storage, the choice is yours with the FAT 300 S working table.

A large and robust frame allows a high loading capacity while the foot pedal height control makes the table extremely versatile and convenient to use for every task and every worker.

An additional feature of the FAT 300 S is the ability to attach a panel tilting device.

Weight capacity: 300 kg

Delivered without working table surface!

Make an enquiry about the Felder FAT300S Work Table

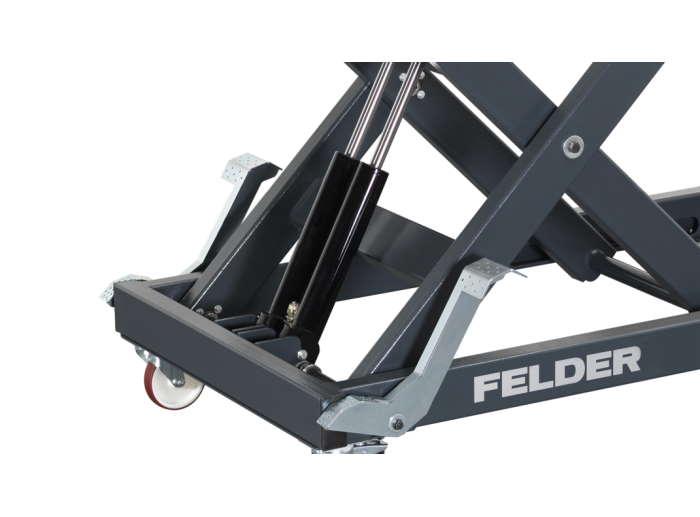

Robust Design

The FAT 300 S has an extremely sturdy frame and large hydraulic lift allowing a large weight capacity of up to 300 kg. The large wheels allows movement over uneven and dusty workshop floors.

Foot Operated Hydraulic Lift

The hydraulic lift height is conveniently adjusted by foot operation making light work of even the heaviest of loads.

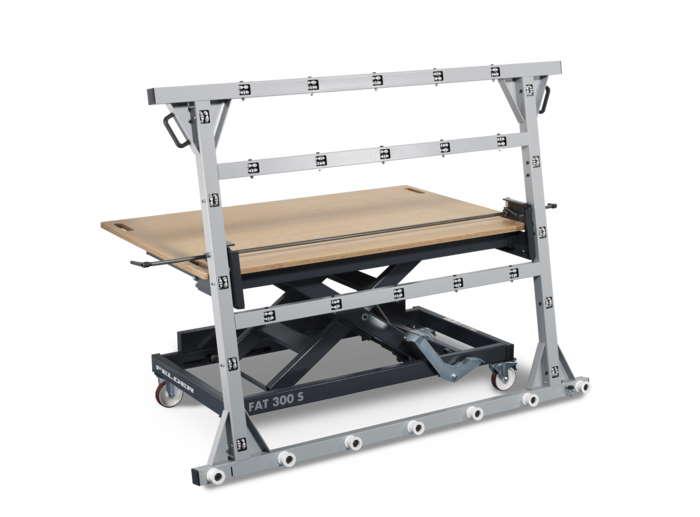

Panel Tilting Device

The FAT 300 S model allows the ability to install a panel tilting device which turns back breaking tasks of manipulating large panels into an easy single person job.

Panel Tilting Device

The panel titling device allows vertical movement of panels from storage to machine, before tilting flat, allowing both simple unloading and ability to double as a table extension if required at the perfect height.

FAT300S Work Table

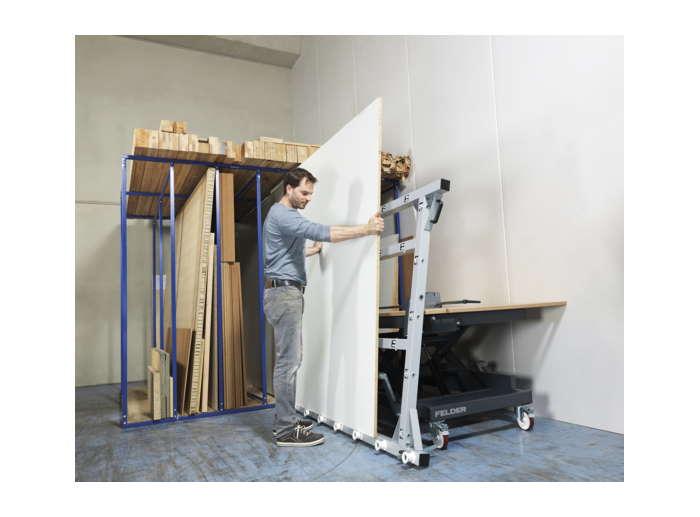

Example of work, the FAT 300 S allows easy vertical storage of panels, opening more avenues for efficient use of workshop space.

FAT300S Work Table

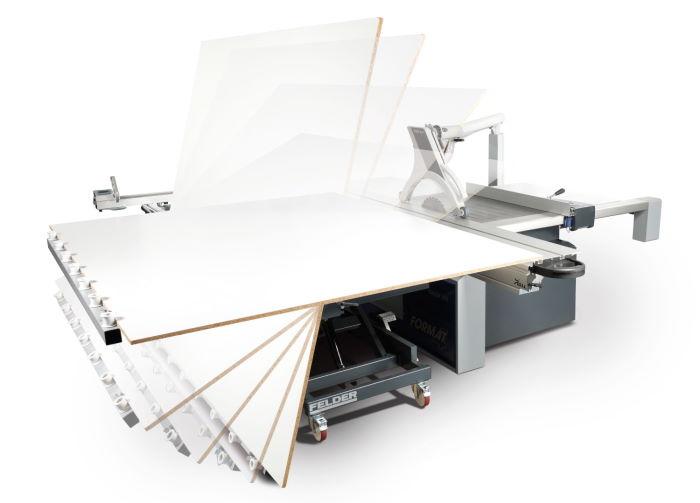

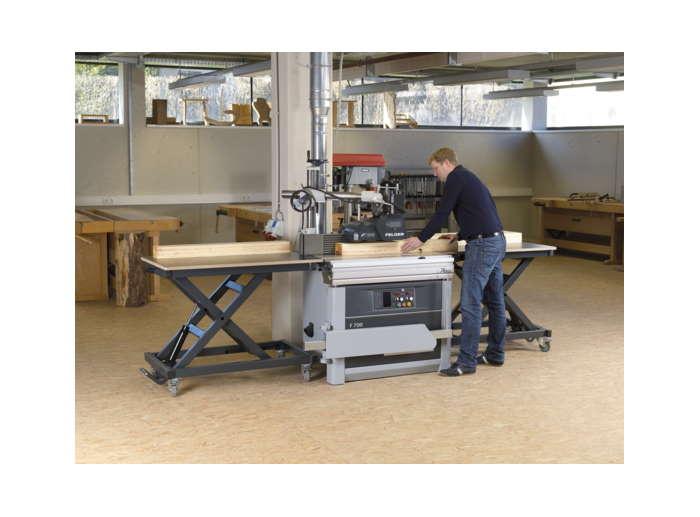

Example of work, the FAT 300 S can be used as an extension table to machinery of all heights.

FAT300S Work Table

Example of work, the FAT 300 S can be used as a stacking table at the end of a CNC machine, nearby an edgebander, or any other machine.

FAT300S Work Table

Example of work, the FAT 300 S can be used as a height adjustable assembly station.

Delivered without working table surface!

  • 420-245 Worktop Multiplex (smooth surface, no clamp holes)
  • 420-426 Grid Panel Multiplex (for use with clamps)
  • 420-247 Tilting Device for FAT S models



Table size 2070 x 1170 or 1650 x 940 mm
Working height 445 - 1040 mm
Weight 125 kg
Table tilt Yes

Specifications are subject to change without notice.

FAT300S Work Table
FAT300S Work Table
FAT300 Work Table
FAT300 Work Table
Table size 2070 x 1170 or 1650 x 940 mm 1200 x 739 mm
Working height 445 - 1040 mm 425 - 1020 mm
Weight 125 kg 75 kg
Table tilt Yes No
