The Peanut 2 is an invisible connector and the most robust fixing in the PEANUT® range, it is designed for end drilling machines and our wood working jigs for carpenters.

Once inserted, all panels made with Peanut components can be packed flat and depending on the tightness of the joint, can be assembled with no tools.

Key benefits:

  • Self-clamping, invisible connector
  • Packs flat when pre-inserted
  • Creates an incredibly strong joint
  • Quick and simple assembly
  • Ability to reassemble many times
  • Designed from glass fibre reinforced nylon
  • Ideal for boring and insertion machines
  • Peanut Jig and Mini Jig Compatible

Tooling Requirements : Peanut® Cutter




$450.00 ex GST $517.50 inc GST Add to cart Make an enquiry

Make an enquiry about the IF Peanut 2 Box of 1250

Machining

Drill your Peanut 2 holes and machine your slots with the Peanut Cutter

Insert the Peanut

Use a mallet or hammer to insert the Peanut flush

Join your furniture

Simply connect your furniture together

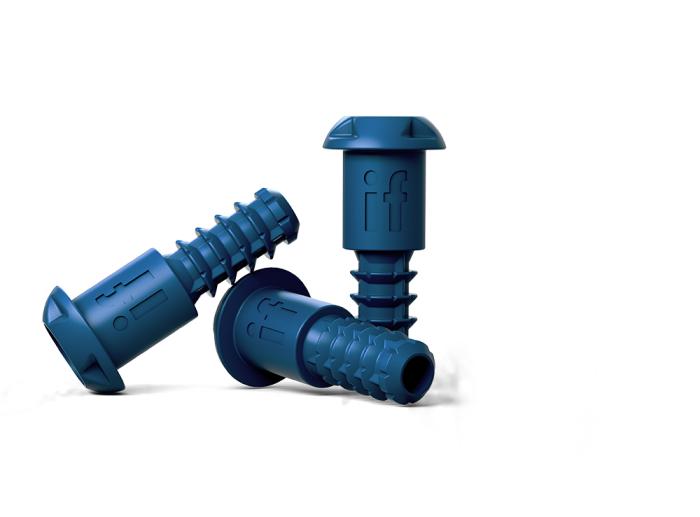

The Peanut 2 is made of a strong reinforced plastic and has rows of teeth around the dowel end to provide high gripping strength when inserted.

A hole through the length of the component allows for a 3.5mm screw to be used, this provides a very strong core and further enhances the grip strength.

By adjusting the screw tightness, the joint can be made tighter or looser, allowing woodworkers to achieve the perfect joint even after multiple reassemblies.

Designed with a shoulder to stop over-insertion and is perfectly calibrated for a tight joint in most situations. The  head has been specially designed to maximise ease of assembly and joint strength. Due to its dome shape, the Peanut head smoothly slides along the slot created by the T-shaped PEANUT® Cutter.

In assembly, the Peanut head rides over the lip of the slot and slides to the end, this action creates a strong clamping force, pulling the two panels together from the inside.

Specifications are subject to change without notice.

Peanut 2, Technical Information.
