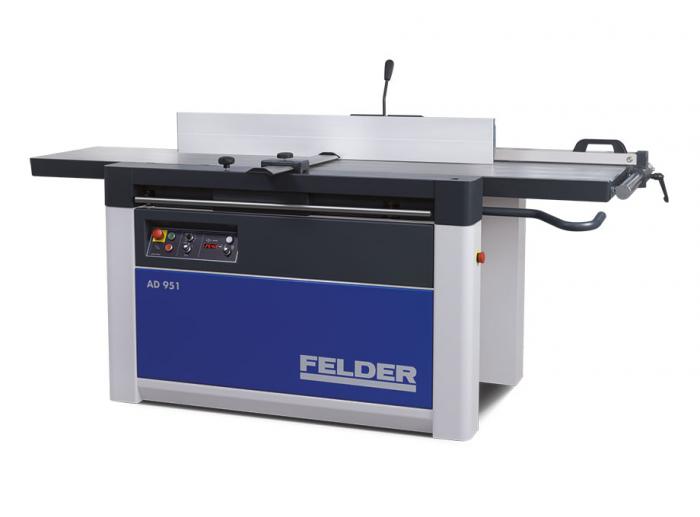

The Felder AD 951 planer-thicknesser - top class!
Looking for a planer-thicknesser that provides excellent planing results and offers incredible ease of use? Then the Felder AD 951 is the right machine for you. Solid ribbed planer tables and a 4 column thicknessing table support ensuring 100% stability. The planer table adjustment system, 120mm cutterblock diameter and the tried and tested Silent-Power cutterblock guarantee a perfect planing finish.
An intuitive design means that changing from planing to thicknessing is quick and easy putting the new AD 951 in a class of its own.
- Intuitive, synchronised opening of the dual planing table
- The optimised planing fence design ensures the smallest possible space requirement
- The new Felder planer fence:
- Highest operational safety with the best operating comfort
- The Felder system cutterblock has guaranteed perfect planing results for decades
- The innovative Silent-Power® spiral knife cutterblock cuts noise emission by half
Please note machine images may show optional equipment.
Make an enquiry about the Felder AD951 Planer Thicknesser
Stability for high performance
The solid cast iron cutterblock housing is built for heavy duty work. The serrated steel infeed roller and the micro-serrated steel outfeed roller guarantee a perfect transport of the workpiece through the machine.

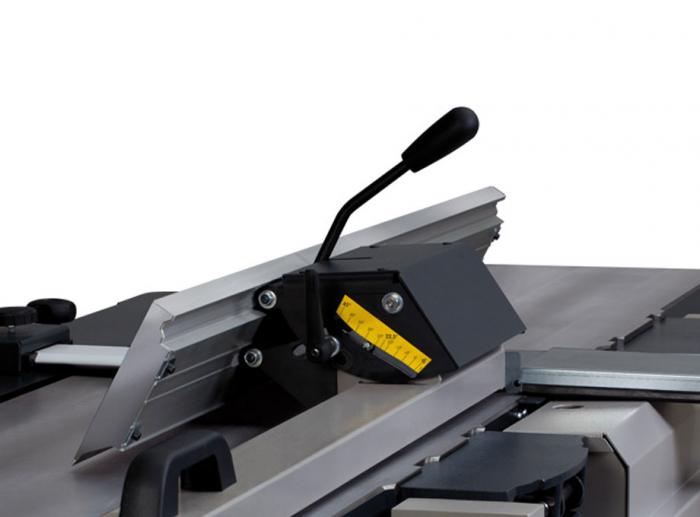

The Felder planer fence
The planer fence: a masterpiece of engineering providing stability, precision and performance. The fence can be tilted with end-stops at 90° to 45°. There is an end stop at both the 90° and 45° positions.

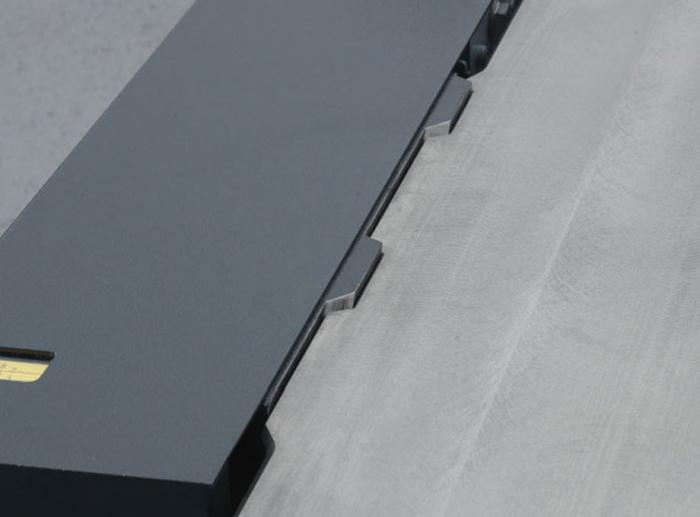

Planing table with a prism guide
The patented Felder planer table adjustment system uses prism guidance for the highest level of adjustment precision. With the new ergonomically shaped depth of cut adjustment handle you can adjust the depth of cut quickly and precisely. The depth of cut can be set to any depth up to 5mm.
Using the integrated magnifying glass, you can view the set depth and achieve exactly the desired results.

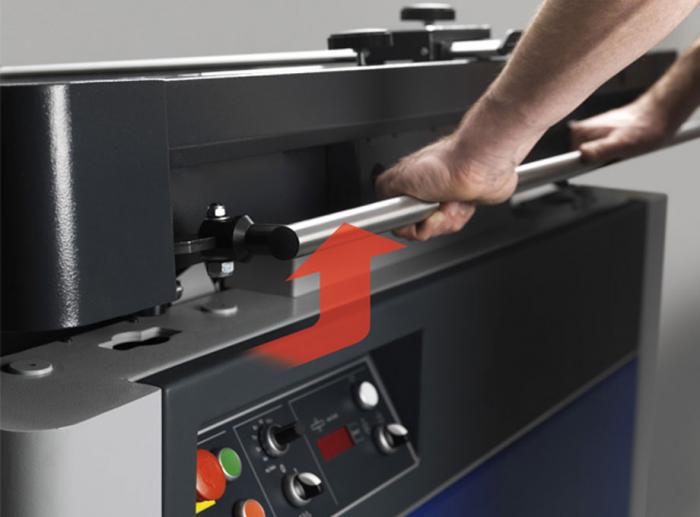

Changeover comfort
The tried and tested Felder design means that changing from planing to thicknessing is quick and easy. The intuitive table clamping system makes it possible to unlock and lift the planing tables synchronously, with one hand movement.

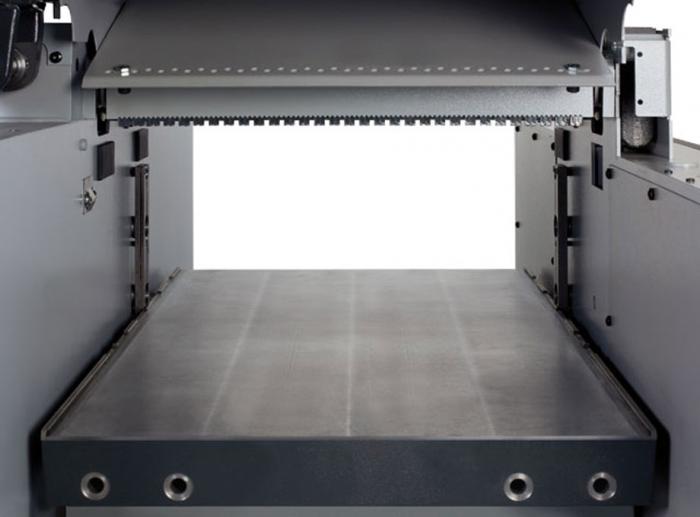

Thicknessing height
With the amply-dimensioned thicknessing height of up to 254mm, even processing large solid wood trusses is simple and effort free.

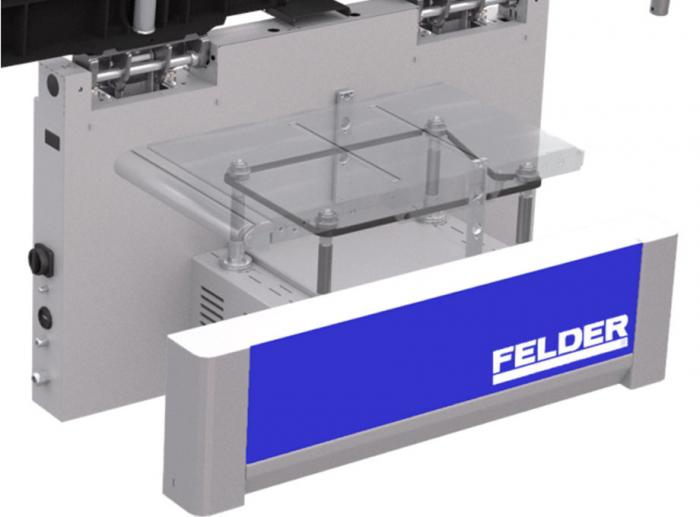

Stability and durable precision
Four trapezoidal spindles guarantee exact adjustment precision and ensure maximum thicknessing bed load. Longitudinal guides integrated into the side of the machine chassis absorb the pressure that is put on the outfeed side and ensure that the thicknessing table is guided with an accuracy of a tenth of a millimetre.

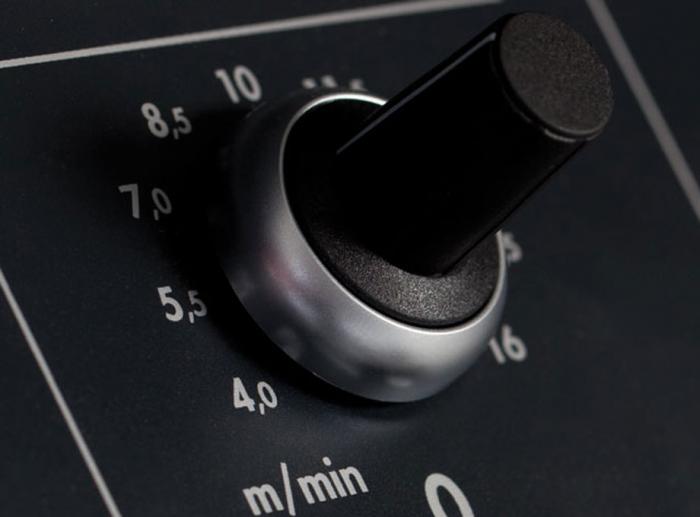

Continuous speeds
Regardless of the type of wood and grain the variable feed speed of between 4 - 16 m/min always guarantees a perfect thicknessing result.

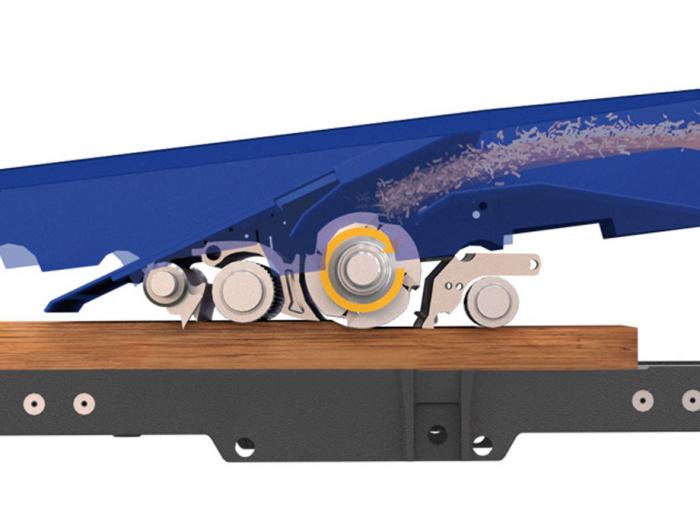

Perfect planing technology
Two spring-loaded pressure bars prevent 'flutter' of very thin workpieces whilst thicknessing.

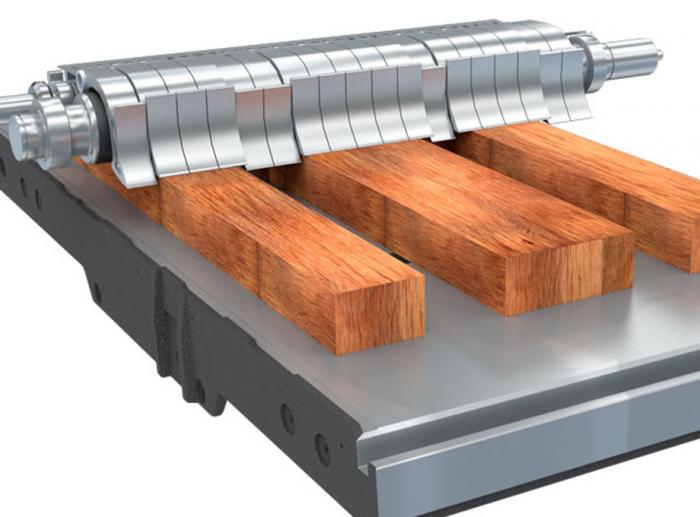

Sectional pressure bar
A recommended option when planing with a small depth of cut, with very thin workpieces or workpieces with varying thicknesses.
See the benefit of the Silent-POWER cutterblock
| Working height | 890mm |
|---|---|
| Working width | 510mm |
| Motor | 5.5kW (7.5hp) 3 phase |
| Length of tables | 2250mm |
| Feed speed | Variable 4 - 16m/min |
| Dust extraction | 140mm |
| Knives | Silent-POWER spiral block |
| Thicknessing width | 504mm |
| Maximum workpiece thickness | 254mm |
| Weight | 900kg |
Specs shown are for the standard model we offer, but Hammer offer a wide variety of options, so talk to us about customising a machine to suit you.
Specifications are subject to change without notice.
More details on the AD951 are available on Felder's website including full details on the Silent-POWER cutterblock.
