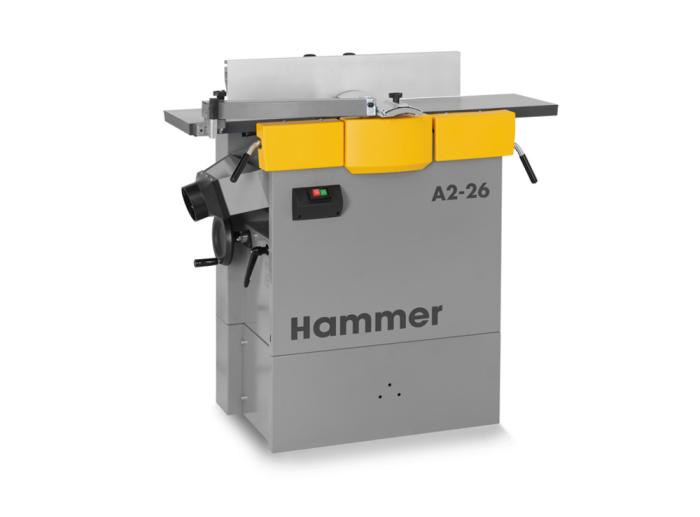

A2-26, the new "small" planer/thicknesser designed to provide quality and precision in small workshops
Not only does the new A2-26 impress with its compact dimensions, it also meets Hammer planer standards that have been tried and tested for decades
The solid cast iron planer tables, the user-friendly operation, the easy changeover from planing to thicknessing and above all Felder Group's renowned Silent-Power cutterblock for finely finished wood surfaces, are just some of the remarkable details you should not miss in your workshop.
Make an enquiry about the Hammer A2 26 Planer Thicknesser
Solid planer tables for absolute precision
The strong ribbed Hammer planer and thicknesser tables are made from solid cast iron and ensure excellent precision in every situation. The width of the planing table equates to the planing width, which means that workpieces can be planed safely across the full length of the planing table.

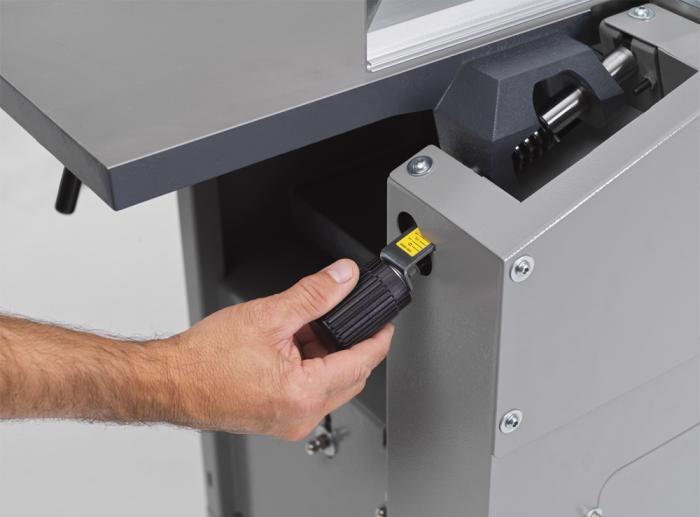

Quick and simple depth of cut adjustment
The depth of cut is set via a turning knob located on the back side of the machine. This ensures fast and precise adjustment of the depth of cut with maximum ease of use. The max. depth of cut amounts to 3 mm.

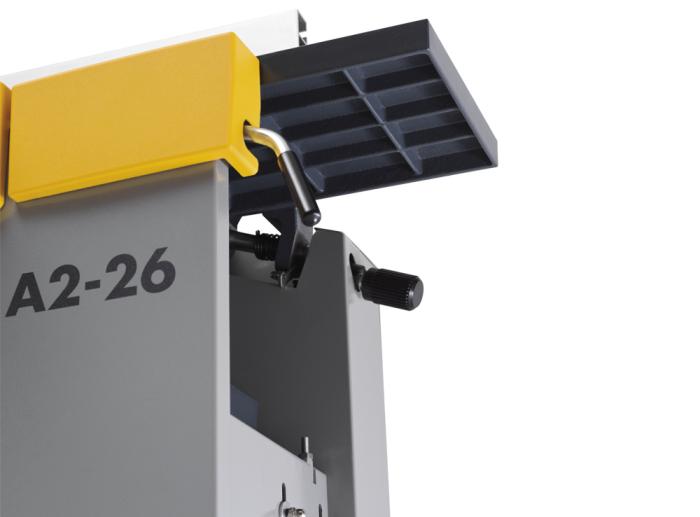

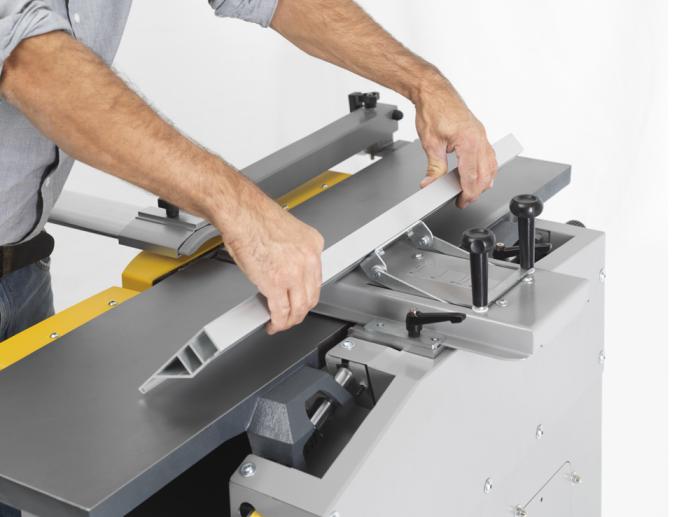

Planer fence for exact joining and bevelling
The planer fence can be easily tilted from 90° to 45° by loosening the two turning knobs. Two end stops at the 90° and 45° positions ensure precision, save time and provide operating comfort.

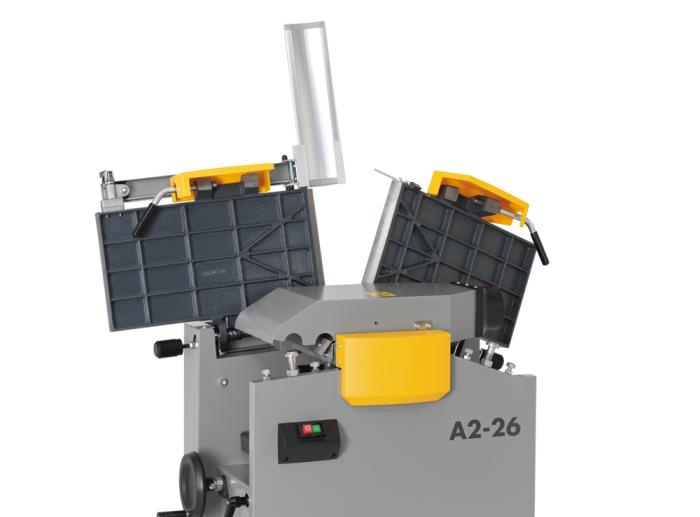

0° end position saves valuable workspace
A space saving solution with optimum ergonomics: The planing table tilts away from the user operating area, this ensures that working with your Hammer planer is as user-friendly as possible and requires less workshop space.
Quality extraction technology - a clean solution
The aerodynamically optimised construction of the dust extraction hood with its ample chip space guarantees an ideal chip extraction and clean working surface.

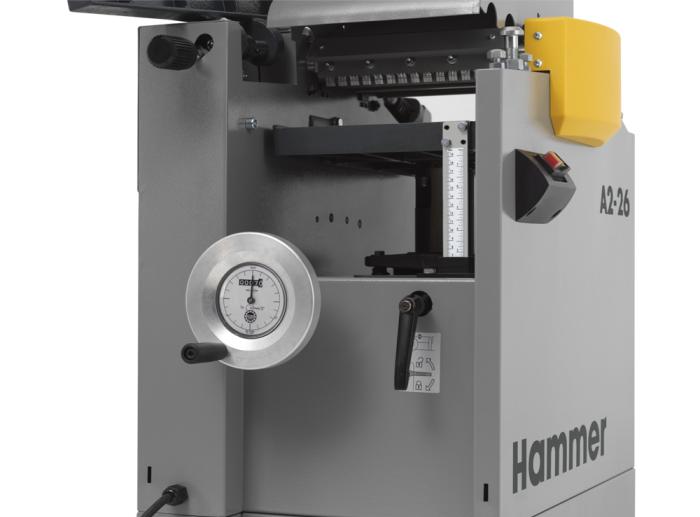

Maximum thicknessing height for large dimension requirements
The maximum thicknessing height is 184 mm. The thicknessing height is indicated on a large scale located on the machine stand. An even more precise, tenth of a millimetre, accurate adjustment of the thicknessing height is possible with the optional handwheel and integrated digital clock.
A Silent-Power cutterblock
Exclusive for planer/thicknessers from the Felder Group, the Silent-Power® spiral cutterblock reduces noise emissions by more than half when planing. The continuous pulling cut ensures tear-free results when planing all types of wood. With this revolutionary new development from Felder you are obtaining all of the advantages of a spiral cutterblock at considerably lower operating, investment and adjustment costs. The advantages of the Silent-Power® cutterblock at a glance ...
Sensationally quiet, noise emissions halved Blade life up to 20 times longer Four highly precise cutting edges on each knife
Hammer code: 500-07-263
A layout diagram is available here
| Maximum cutting depth | 3mm |
|---|---|
| Working width | 260mm |
| Motor | 1.9kW (2.6hp) |
| Minimum workpiece length | 145mm |
| Table tilt | -5°– +45° |
| Length of tables | 1045mm |
| Feed speed | 4.5m/min |
| Knives | Silent-POWER spiral block |
| Thicknessing width | 254mm |
| Maximum workpiece thickness | 3 - 184mm |
| Weight | 175kgs |
Specs shown are for the standard model we offer, but Hammer offer a wide variety of options, so talk to us about customising a machine to suit you.
Specifications are subject to change without notice.
Visit Felder's youtube channel for videos on the Felder Group range.
Made in Austria, Hammer machines are for hobby and small business requirements and offer a fantastic price-performance ratio. Part of the Felder Group.
