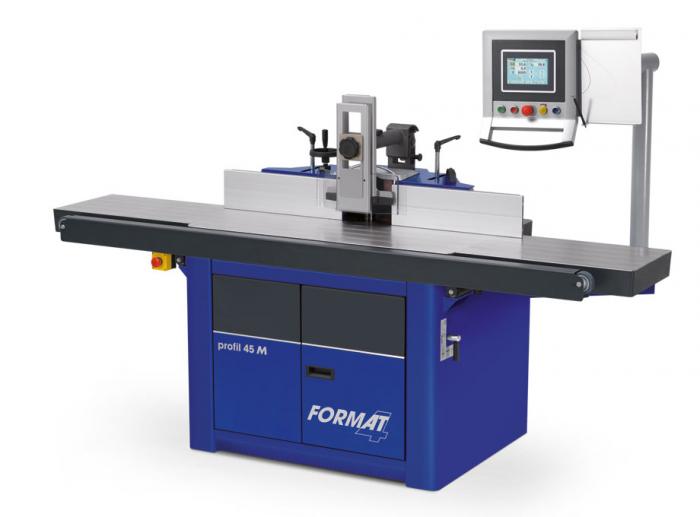

Format-4's profil 45-M x-motion offers premium operating comfort for maximum productivity.
Features include:
- Solid cast iron table offering vibration-free stability
- Tool free moulder spindle quick change system for high productivity
- Spindle moulder fence, moulder spindle height and angles can be precisely adjusted using electrical height and angle control
- Maximum user-friendliness and safety: 320 mm table opening and rearward tilting spindle
- High performance spindle aggregate with accurate double guiding system and a 6 year guarantee on the tilting segment guide 'Easy-Glide'
- 'X-Motion' control package: 7“ TFT-Touchscreen usable at eye level - maximum productivity with program saving, incremental function with current setpoint and actual value display
Please note machine images may show optional equipment.
Make an enquiry about the Format-4 Profil 45M x-motion

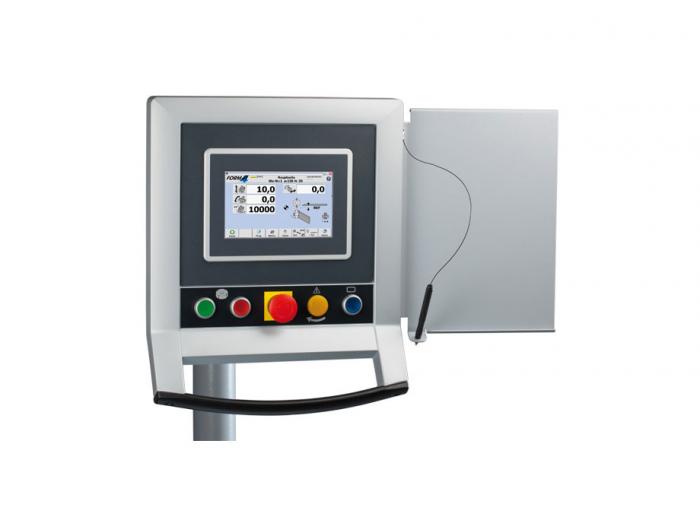

'x-motion' control
One of the absolute highlights of the Profil 45 x-motion is the 7“ TFT monitor with “x-motion” control package for unique user comfort of the premium class. The touch screen control unit is always at eye level and provides all the important information at a glance.
Alongside all of the settings of the spindle, the new Format-4 spindle moulder fence can also be controlled directly from the touch screen. The premium package offers maximum efficiency, with program recall at the touch of a button with individual configurable moulding programs and an optionally available tooling database.

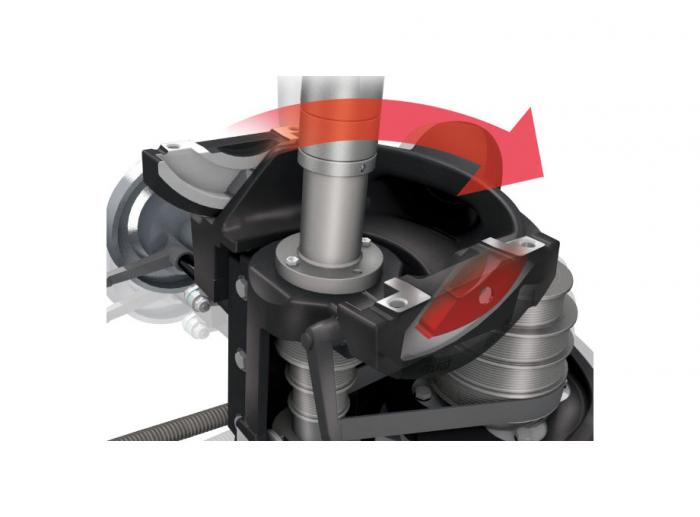

'Easy-glide' tilting technology
The 'Easy-Glide' tilting segment guide in every Format-4 machine aggregate meets the high requirements of business and industry. A precise, guided, double-sided support guarantees maximum load bearing and spot-on tilting.

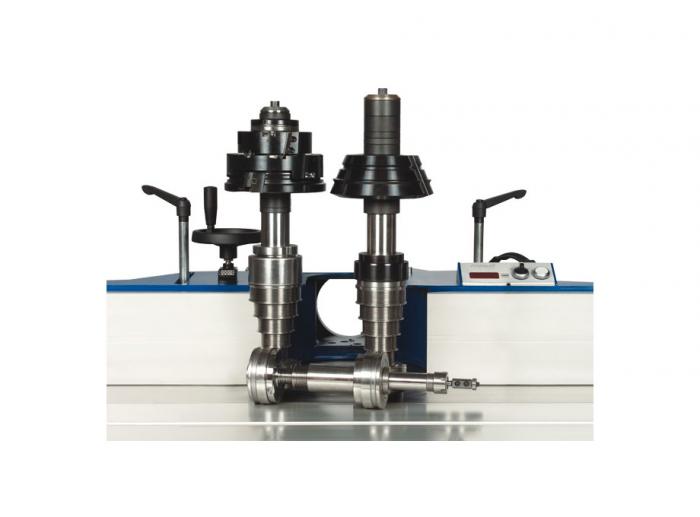

Quick-change spindle system
The spindle quick-change system provides almost limitless possibilities of use. You can use spindles with pre-mounted tools for series production, or use spindles with a different diameter. The spindle can be changed in seconds. A particular highlight is the ability to mount a high speed router spindle with 15,000 rpm capability. For maximum stability and durability the Format-4 spindle has been designed with 3 high quality “precision type” bearings.

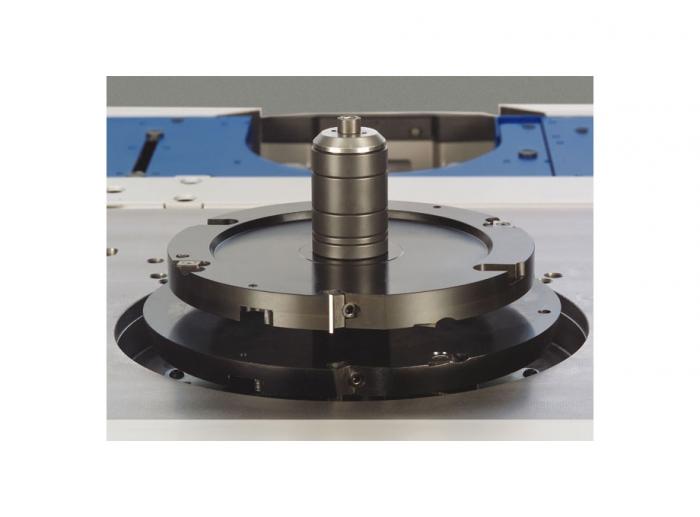

320mm table opening
The large table opening allows for maximum operator safety. For large dimension tooling, as used for tenoning and panel raising, the cutterblock can be conveniently positioned below the table.

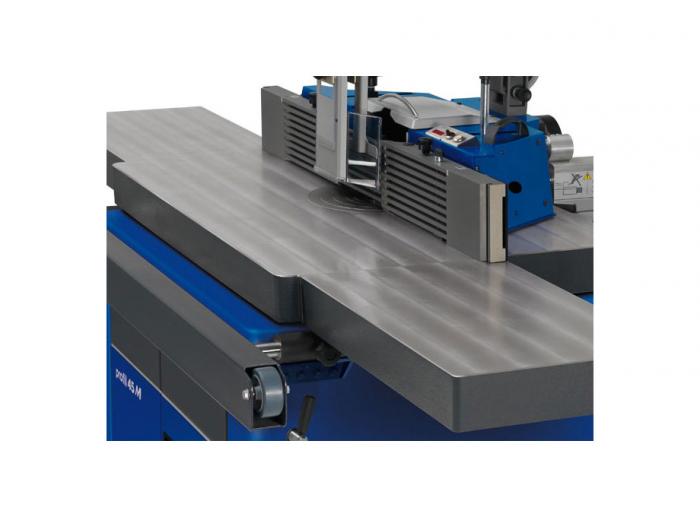

Heavy long tables for excellent stability and finish
The solid, highly precise cast iron machine table guarantees maximum stability and a complete vibration-free process even when under maximum load. The 1270 mm long stable front pull out support increases the support surface by up to 400 mm. The emergency off switch is mounted to the front of the pull out for maximum operating safety and is always within reach. Optional: Increase the working surface area of your Profil 45 M by 670 mm on both sides with the solid table extensions. If the extensions are taken as an option then the machine will be equipped with an extended front pull out support of 2200 mm.
| Working height | 890mm |
|---|---|
| Motor | 5.5kW (7.5hp) |
| Spindle travel | 140mm |
| Spindle Ø | 1 ¼" |
| Spindle speeds | 3500 /4500 / 6000 / 8000 / 10,000rpm |
| Table opening Ø | 320mm |
| Spindle tilt | 0 to 45° |
| Weight | 730kg |
Specs shown are for the standard model we offer, but Format-4 offer a wide variety of options, so talk to us about customising a machine to suit you.
Specifications are subject to change without notice.
Profil 45M x-motion
|
F700Z Spindle Moulder
|
|
|---|---|---|
| Spindle Ø | 1 ¼" | 1 ¼" |
| Spindle speeds | 3500 /4500 / 6000 / 8000 / 10,000rpm | 3500 / 6500 / 8000 / 10,000rpm |
| Motor | 5.5kW (7.5hp) | 5.5kW (7.5hp) |
| Weight | 730kg | 450kg |
| Spindle travel | 140mm | 115mm |
| Spindle tilt | 0 to 45° | 0 to 45° |
| Table opening Ø | 320mm | 230mm |
| Working height | 890mm | 890mm |
