Power Meets Precision for Large-Scale Joinery.
The DDF40 MaxiMAX is designed for professionals tackling demanding cabinetry and solid timber projects. With its robust performance and advanced Duo-Dowel technology, this portable jointer delivers unmatched accuracy and speed for larger dowel work.
Key Features:
- High-Power Capability: Ideal for heavy-duty applications in solid timber and large panels.
- Inclusive Kit: Includes DDF40 in a durable case, wooden dowels, glue bottle, two anti-slip mats, and drill bits.
- Quick Adjustments: Clear scale for material thickness and turret with six stops for fast resets.
- Precision Positioning: Retractable stop pins and auxiliary stops for edge drilling without marking.
- Versatile Settings: Continuously variable drilling depth, material thickness, and joint angle.
- Dual-Sided Tilting Fence: Ensures stability and accuracy for angled joints.
Perfect for large cabinetry, solid timber joinery, and professional workshops demanding high performance.
Make an enquiry about the Mafell DD40F Duo Dowel System MaxiMax
Fast and accurate

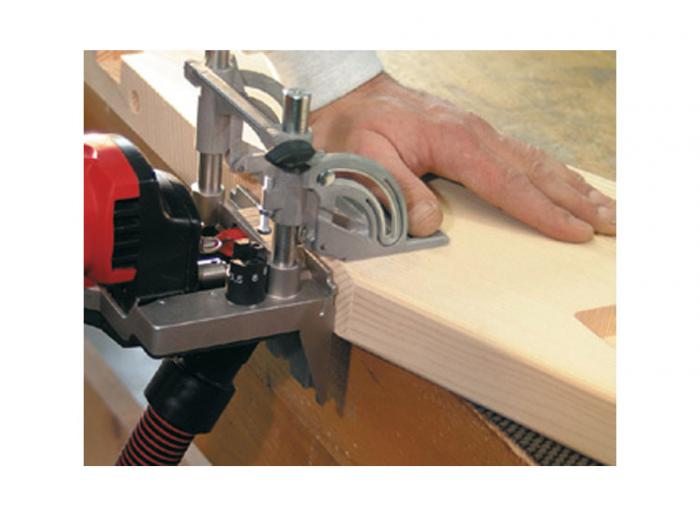

Edge-to-edge and mitre corner joints. A clear scale for adjusting the material thickness and a turret with six stops enable you to reset the DDF40 for a variety of thicknesses in a very short time.
Quick and economical
You can make carcasses with the DD40F and a dowel template

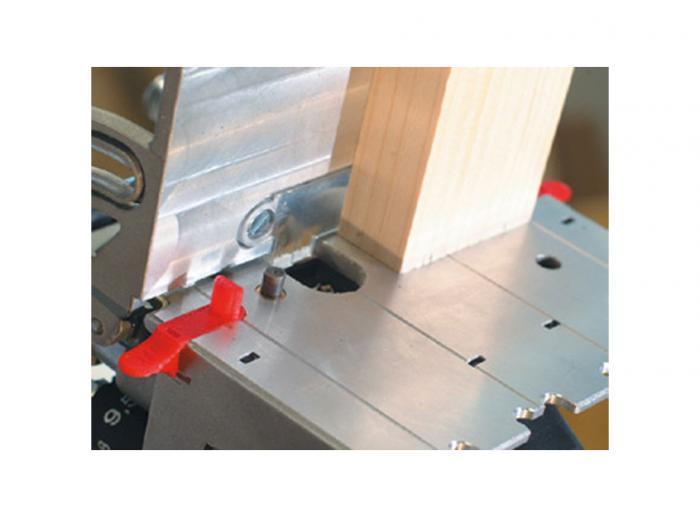

Auxiliary stops
Thanks to the auxiliary stops the edge spacing can be decreased or increased quickly and accurately. Retractable stop pins and auxiliary stops facilitate drilling near the edge - without the need for marking.
Staircases
For use in staircase construction, in the workshop, and on site.
Mafell T-MAX systainer
The DDF40 and accessories is provided in the sturdy yet lightweight TMAX Systainer case
2 carbide dowel drills, dia. 6 mm
2 carbide dowel drills, dia. 8 mm
1 pack of wooden dowels, 6 x 30 mm, qty. 350
1 pack of wooden dowels, 8 x 30 mm, qty. 200
1 auxiliary rest ZA
1 set of additional stops ZAG
1 hose connector
1 side fence set SA 320
1 stop pin insert for battens LA
1 position indicator PAZ
1 Allen key with handle
1 glue bottle
1 dowel nozzle 8 mm dia.
2 anti-slip mats
1 T-MAX case
1 power lead 4 m
| Maximum cutting depth | 0 - 40mm |
|---|---|
| Motor | 230V, 1000W (1.35hp) |
| Fence tilt | 0 to 90° |
| Maximum tool Ø | 5 - 16mm |
| Chuck collet | 8mm |
| Spindle speeds | 13,500rpm |
| Drilling head | Dual drilling, 32mm interval |
| Weight | 2.9kg |
Specifications are subject to change without notice.
DD40F Duo Dowel System MaxiMax
|
DDF40 Duo Dowel Jointer MidiMAX
|
|
|---|---|---|
| Motor | 230V, 1000W (1.35hp) | 230V, 900W (1.2hp) |
| Maximum cutting depth | 0 - 40mm | 0 - 40mm |
| Drilling head | Dual drilling, 32mm interval | Dual drilling, 32mm interval |
| Maximum tool Ø | 5 - 16mm | 3 - 12.2mm |
| Chuck collet | 8mm | 8mm |
| Spindle speeds | 13,500rpm | 8,000rpm |
| Weight | 2.9kg | 2.8kg |
Jacks offer the complete range of Mafell tools - see the Mafell website for details of what's available.
Visit Mafell's youtube channel for videos on the Mafell range.
Mafell AG manufactures high-end woodworking power tools specialised for carpentry, founded in 1899.
