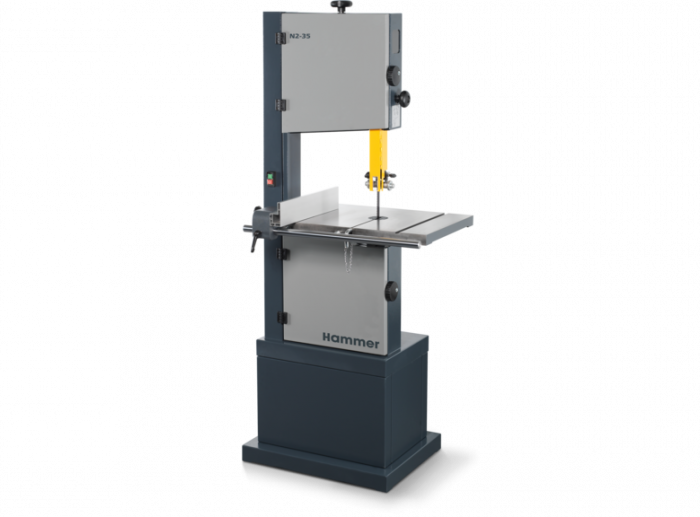

Hammer's N2-35 is a bandsaw that's big on performance, and easy on the budget
With a 235 mm cutting height and a 1 kw motor meet performance requirements for a machine of this style. A swivelling, heavy grey cast iron machine table and solid cast aluminium wheels make for strong and stable performance. And the precisely guided rip fence and the upper and lower saw blade guide with finely adjustable side and back roller bearings ensure optimum results.
Note the stand is not included but available separately - or you can build your own! Other accessories include various mitre fences, and a rolling carriage.
Make an enquiry about the Hammer N2-35 Bandsaw
Cast aluminium bandsaw wheels
Blade tension and tape running on the solid bandsaw wheels can be easily seen and adjusted.
Solid, tiltable cast iron machine table
The solid table made of heavy grey cast iron can be tilted from -5 to +45. For the 90° table position the adjustable end stop is tilted in.
Note the stand pictured is an optional accessory.

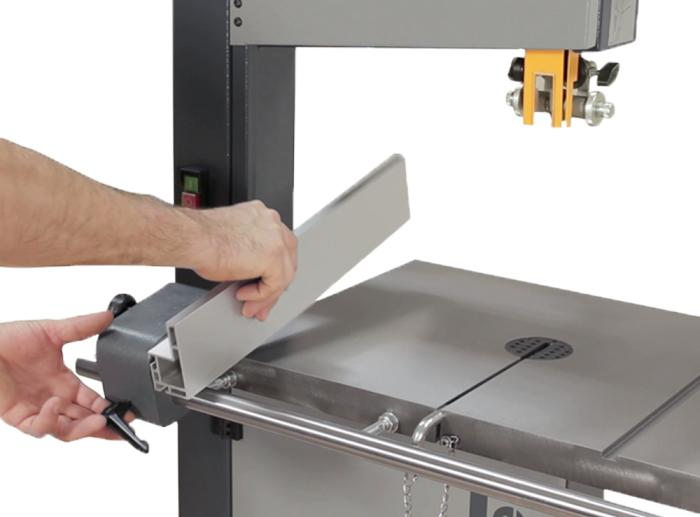

Parallel fence can be tilted away
Guided precisely along the round bar, the fence can be positioned or swung away on either the left or right-hand side of the saw blade. The aluminium fence is mounted to the cast iron housing of the parallel fence and can be positioned along the cutting direction for improved infeeding of longer workpieces. For the processing of narrow workpieces the aluminium fence can be laid flat from the normal vertical position.

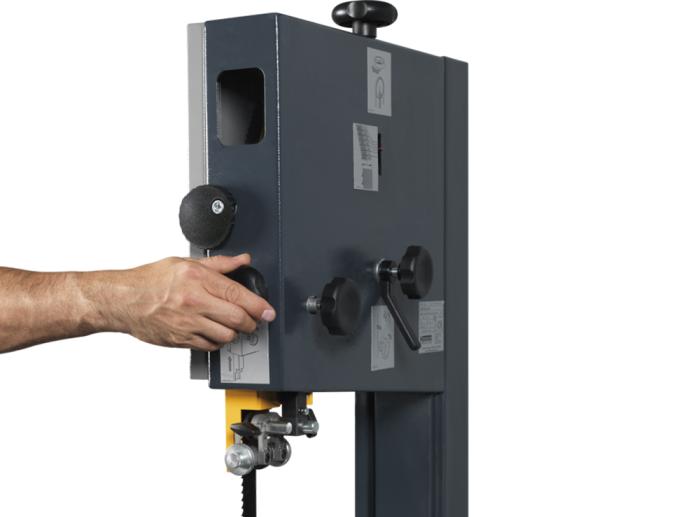

Cutting height
The height adjustment of the blade guard is adjusted by handwheel precisely over a toothed rack.

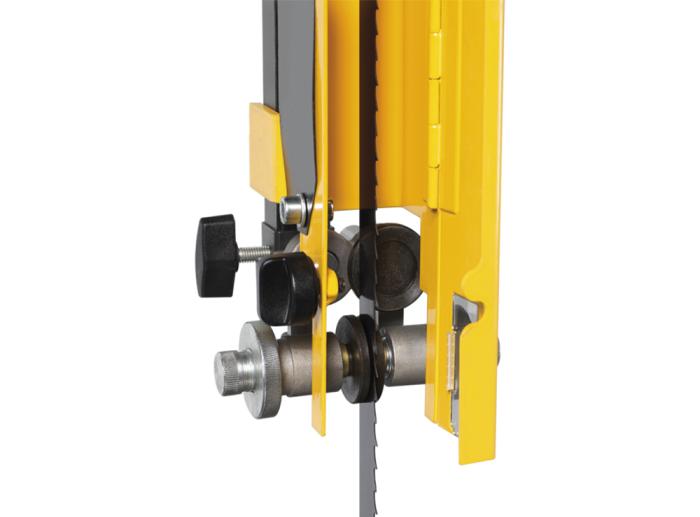

Bandsaw blade guides
The band saw is equipped with upper and lower table guides with finely adjustable side and rear rollers and lockable setting screws.
- Minimum space requirement
- Easy blade change
- Optimum cutting speed in wood
- User-friendly
- Range of accessories available
Hammer product code: 500-13-351
| Maximum cutting height | 235mm |
|---|---|
| Rip capacity | 340mm |
| Table size | 400 x 548mm |
| Motor | 1kW |
| Blade | 2630mm x 6 - 20mm |
| Table tilt | -5°– +45° |
| Wheel Ø | 350mm |
| Dimensions (L x W x H) | 600 x 460 x 1310mm (1700mm with base) |
| Blade speed | 15.5 m/sec |
| Weight | 100kg |
Specs shown are for the standard model we offer, but Hammer offer a wide variety of options, so talk to us about customising a machine to suit you.
Specifications are subject to change without notice.
N2-35 Bandsaw
|
N4400 Bandsaw
|
|
|---|---|---|
| Table size | 400 x 548mm | 420 x 575mm |
| Blade | 2630mm x 6 - 20mm | 3976mm x 6 - 25mm |
| Table tilt | -5°– +45° | -10 to +45° |
| Maximum cutting height | 235mm | 310mm |
| Wheel Ø | 350mm | 440mm |
| Motor | 1kW | 2.5kW (3.5hp) single phase (3 ph avail) |
| Weight | 100kg | 170kg |
Visit Felder's youtube channel for videos on the Felder Group range.
Made in Austria, Hammer machines are for hobby and small business requirements and offer a fantastic price-performance ratio. Part of the Felder Group.
