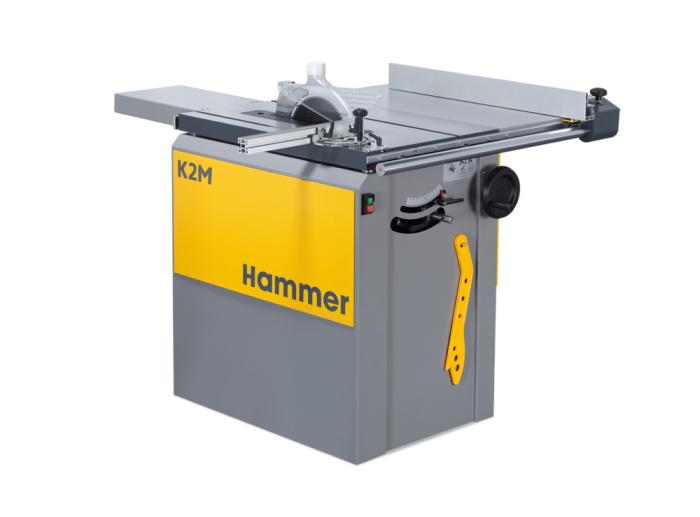

A stationary, compact panel saw for the discerning, cost-conscious woodworker.
- Minimal space requirement
- Powerful 1.9 kW motor, 1x 230 V for every workshop
- Saw aggregate tiltable form 0° to 45°
- Very easy saw blade change
- Preparation for grooving tool insert
- Precision machine-cast saw table
- T-slots for mitre fence on both sides of the saw blade
- Saw fence on round steel shaft continuously adjustable
- Rolling carriage with lifting bar, optional
- Mitre fence for mitre cuts, optional
K2M – ideal for those who work in tight spaces but still demand high quality and performance!
Make an enquiry about the Hammer K2M
Saw aggregate
The Hammer saw aggregate impresses with smoothness, precision and extreme user friendliness. The large cutting height of 80 mm leaves nothing to be desired. Saw blades with up to 254 mm diameter can be lowered completely below the level of the saw table. The saw blade is simple to access and can be changed with ease.

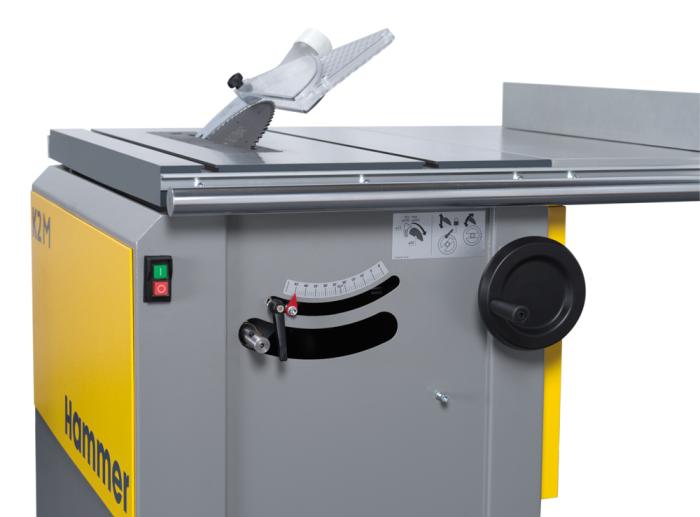

Continuously variable tilt range between 0° and 45°
The continuously variable tilt range between 0° and 45° ensures precise mitre cuts. End stops at the 0° and 45° position ensure exact positioning of the settings. A large scale allows precise positioning and easy read-out of the corresponding values. Both the height adjustment and the angle adjustment can be done directly from the operator's side. The scope of delivery includes 1 handwheel.

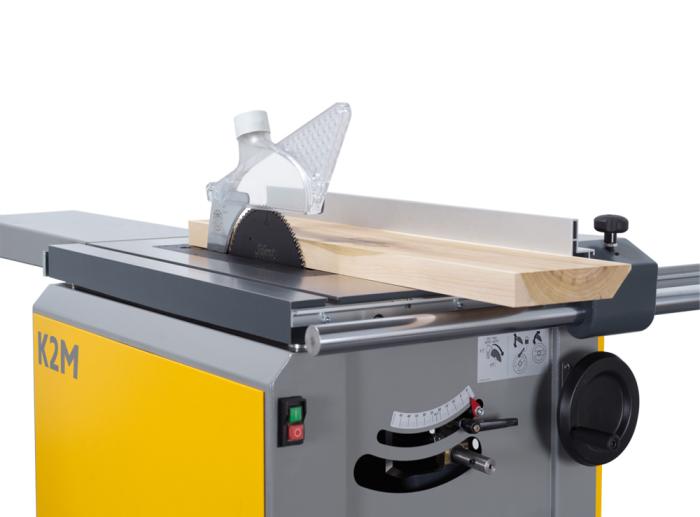

Machine Table with T-slot and mitre fence
The Hammer K2M is a compact panel saw. What characterises this machine in particular is that it does not come with a sliding table. Therefore, its dimensions are very compact.

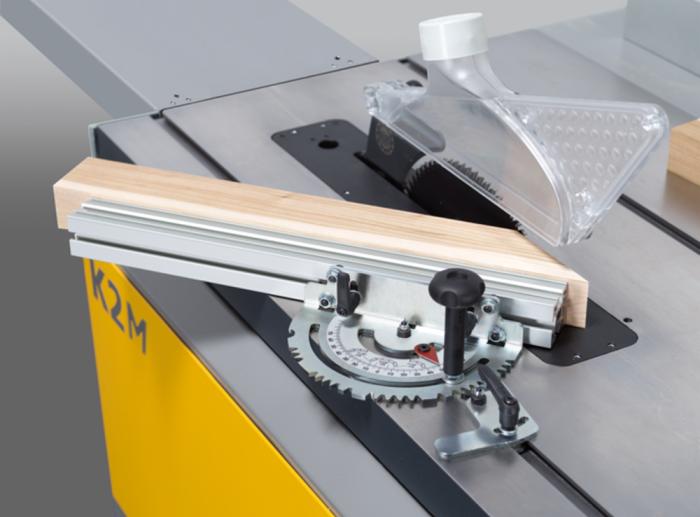

The machine is equipped with a T-slot on both sides of the saw blade for cutting to length and mitre cuts. The mitre fence 423-043 can be inserted into this T-slot.

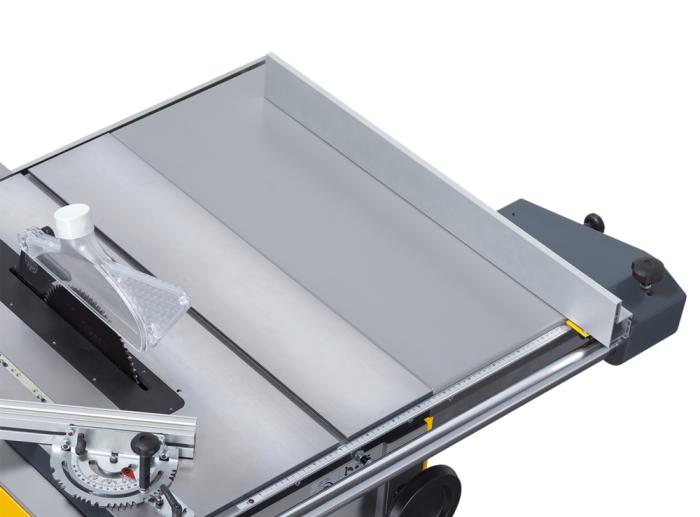

Rip fence
The cutting width on the saw table can be adjusted continuously between 0 and 610 mm. Thanks to the integrated scale in the guide rail, the aluminium fence can be precisely set to the desired position.
When carrying out angled cuts with a tilted saw blade it is possible to move the fence from the horizontal to the flat position. The narrow fence edge then enables the rip cutting of very thin workpieces.

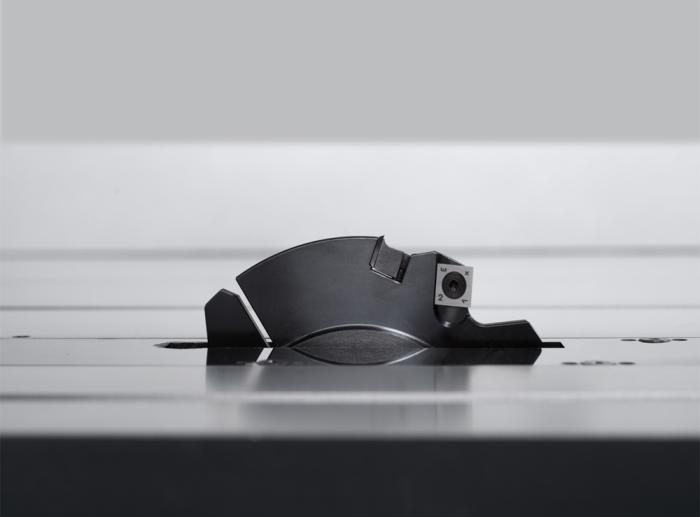

Grooving slot and Tenoning
The Hammer panel saw is configured at the factory for the use of special adjustable dado tools. The dado tool can be fitted to the saw arbour and makes it possible to make various width grooves, tenons and slots of between 8 and 19.5 mm in width.
Hammer product code: 500-07-201
| Max. saw blade Ø | 254mm |
|---|---|
| Max. cutting height @ 90º | 80.5mm (with 254mm blade) |
| Rip capacity | 610mm |
| Saw blade speed | 5000rpm |
| Working height | mm |
| Motor | 1.9kW |
| Dust extraction | 100mm |
| Dimensions (L x W x H) | 875 x 600 x 1210mm |
| Blade tilt | 0° - 45° |
| Weight | 150kg |
| Prepared for grooving tool insert | Dado 5-20mm wide x 180 dia |
Specs shown are for the standard model we offer. Variants may be available.
Specifications are subject to change without notice.
K2M
|
SA250 Sawbench
|
SA300 Sawbench
|
|
|---|---|---|---|
| Max. cutting height @ 90º | 80.5mm (with 254mm blade) | 75mm | 100mm |
| Rip capacity | 610mm | 630mm | 790mm |
| Weight | 150kg | 190kg | 235kg |
| Motor | 1.9kW | 2.2kW (3hp) with 15amp plug | 2.2kW (3hp) - with 15amp plug |
