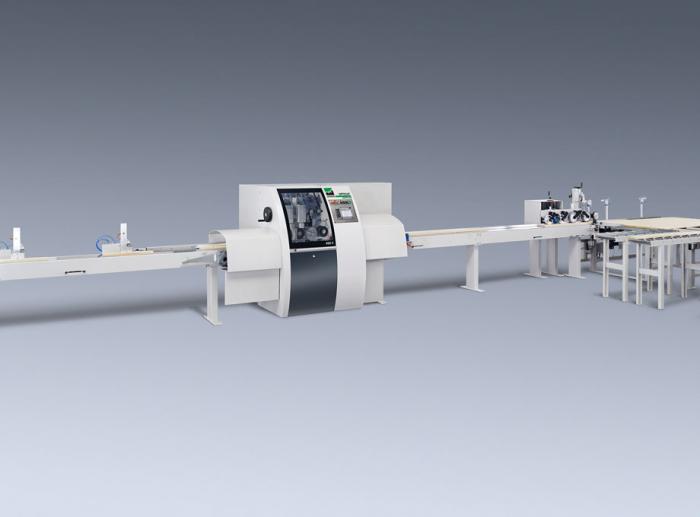

Dimter, from Weinig, is the leader in crosscut saws and systems, and the OptiCut 450 Series is the ultimate in crosscut speed, accuracy and technology. Outstanding performance and a variety of options make the OptiCut 450 series ideal for use with scanners, automatic stacking systems or other high performance handling systems.
The OptiCom Direct control and state of the art Dimter software provide maximum material yield through optimising and defecting the ingoing lumber.
The Servo Saw Stroke guarantees the fastest cut time after time. In addition, the Servo Controlled Waste Gate opens only as far as needed to dispose of the waste pieces.
A Dimter Opticut 450 will make a huge difference to your timber yield, productivity, staff costs, and your bottom line.
Make an enquiry about the Weinig OptiCut 450 Series Crosscut Saw
VarioSpeed

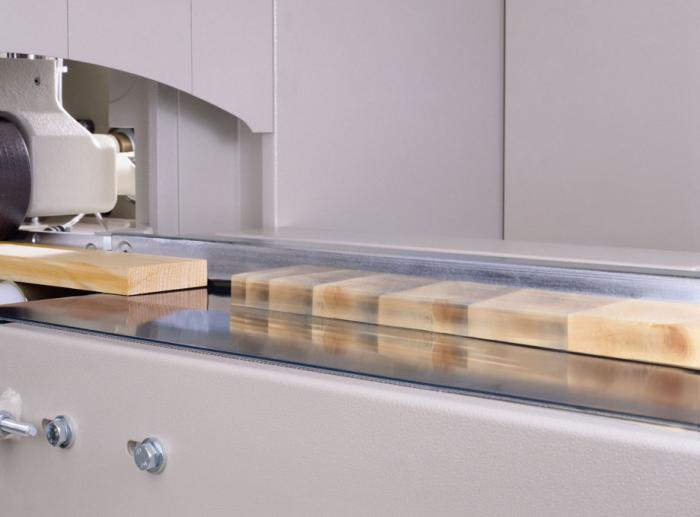

The OptiCut 450 series is equipped with the unique VarioSpeed infeed system, which reduces the gaps between boards and allows the saw to cut without interruption.

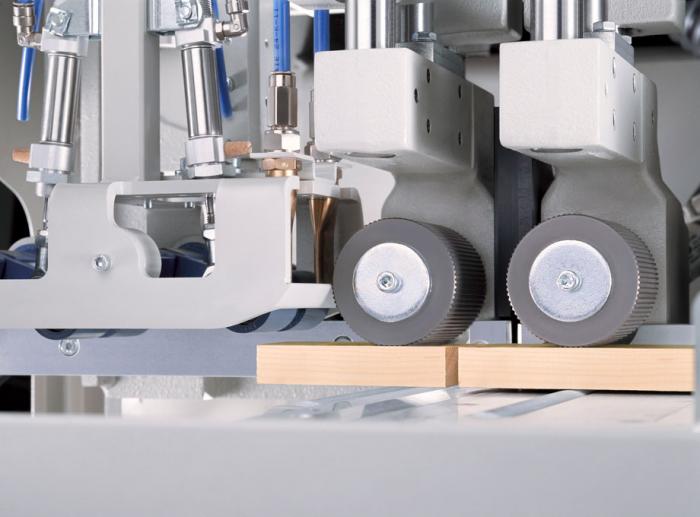

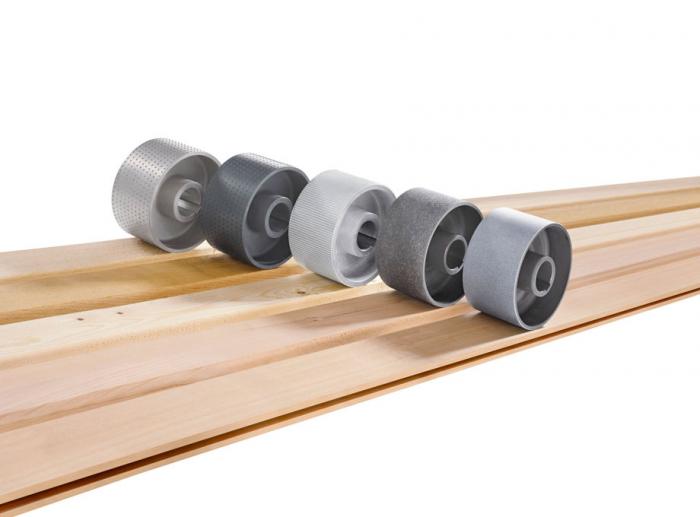

High grip feed rollers to suit your material
The specially designed HighGrip feed rollers are developed to handle different materials. These rollers ensure effective gripping to transfer the board with high acceleration and deceleration rates, guaranteeing superb cut accuracy.
OptiCut 450 Quantum
The OptiCut 450 Quantum is designed for record-breaking speed: up to 540 cuts per minute. The fastest crosscut saw in the world, yet you still get Dimter's accuracy, reliability and optimisation, at up to 415m/min.
OptiCut 450 FJ+
The OptiCut 450 FJ+ is characterised by a special feed system which ensures secure transportation of even the shortest pieces of quality wood. The machine can retain full control at the end of the board over short parts up to 110mm, which are reliably separated from the waste and transferred to the sorting station. This results in a hugely increased yield in the case of finger jointing operation.

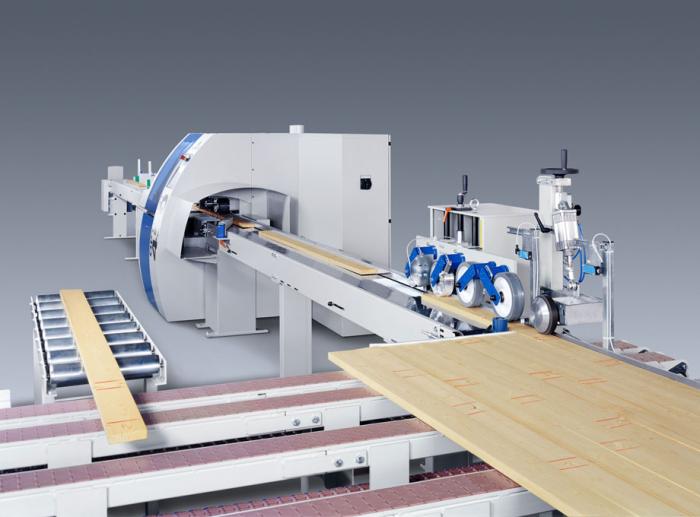

The OptiCut 450 series provides unbeatable speed and accuracy when combined with a scanner and handling equipment. View the videos below to see the OptiCut in combination with a Luxscan Combiscan + and a variety of handling equipment.
| Saw blade Ø | 450mm |
|---|---|
| Maximum cutting height | 100mm |
| Maximum cutting width | 235mm |
| Working height | 900mm |
| Motor | 7.5kW (10hp) |
| Feed speed | 300 - 415m/min |
| Air consumption | 1200NL/min |
| Maximum workpiece length | 6.3m |
Specs shown are for a standard model, but Weinig offer a wide variety of options, so talk to us about customising a machine to suit you.
Specifications are subject to change without notice.
OptiCut 450 Series Crosscut Saw
|
OptiCut 200 Series Through-feed Saws
|
|
|---|---|---|
| Feed speed | 300 - 415m/min | 180 - 240m/min |
| Maximum workpiece length | 6.3m | 6.3m |
| Saw blade Ø | 450mm | 500mm |
| Maximum cutting width | 235mm | 260mm |
| Maximum cutting height | 100mm | 80mm |
| Working height | 900mm | 900mm |
| Motor | 7.5kW (10hp) | 7.5kW (10hp) |
| Air consumption | 1200NL/min | 1200NL/min |
