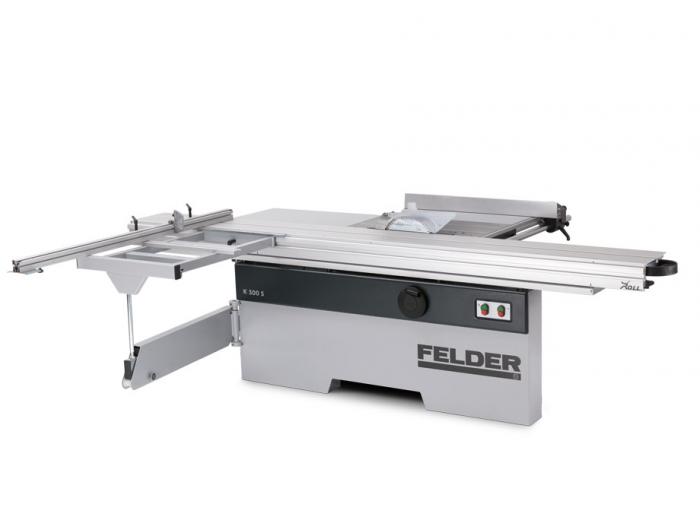

K500S - the "small" panel saw from Felder.

If you are looking for precision, performance and quality at the lowest ­possible price, then the K500S is the right machine for you!

Felder's renowned 'X-Roll' sliding table is standard on this cost effective machine.

  • 104mm cutting height with a 315mm saw blade
  • Stable and compact circular saw unit for long-lasting satisfaction
  • 'Easy-Glide' Tilting segment guide with a 6 year guarantee
  • Zero point tilt for precise mitred cuts
  • Maximum energy transfer from the Poly-V belt ­
  • Double-sided support

Please note machine images may show optional equipment.

Make an enquiry about the Felder K500S Panel Saw

'X-Roll' sliding table

Felder's continuously developed linear guiding system has been astounding woodworkers since 1990. The high quality sliding table guiding technology, 'X-Roll,' offers amazing operating smoothness and is completely maintenance free. The 'x' design of the position of the roller bearings ensures that they move smoothly along hardened guides.

'Easy-Glide' system

A highly robust synthetic material located in the guidance track of the tilting brackets ensures they run smoothly and are maintenance free, even under the most extreme conditions. The tilt guide segment runs without lubrication and is insensitive to dust.

Quick and accurate setting for the rip fence

The single handed adjustment system ensures quick and accurate setting of the rip fence. A fine adjustment facility is included.

The rip capacity amounts to 800mm or optionally 1250mm. The easy-to-read rip scale is perfectly integrated into the saw table. The aluminium rip fence plate can be moved backwards to optimise the feed of workpieces.

Optional parallel cutting fence with fine adjustment.

Motor 4kW (5.5hp) 3 phase or 3kW (4hp) single phase
Weight 600kg
Max. saw blade Ø 315mm
Max. cutting height @ 90º 104mm
Saw blade speed 4800rpm
Rip capacity 1250mm
Working height 890mm
Sliding table length 2800mm
Crosscut fence length 2600mm
Outrigger table size 1300mm

Specs shown are for the standard model we offer, but Felder offer a wide variety of options, so talk to us about customising a machine to suit you.

Specifications are subject to change without notice.

K500S Panel Saw
K500S Panel Saw
K540S Panel Saw
K540S Panel Saw
Motor 4kW (5.5hp) 3 phase or 3kW (4hp) single phase 5.5kW (7.5hp) 3 phase
Weight 600kg 680kg
Max. saw blade Ø 315mm 400mm
Max. cutting height @ 90º 104mm 137mm
Saw blade speed 4800rpm 4000rpm
Rip capacity 1250mm 1250mm
Working height 890mm 890mm
Sliding table length 2800mm 2800mm
Crosscut fence length 2600mm 2600mm
Outrigger table size 1300mm 1300mm
