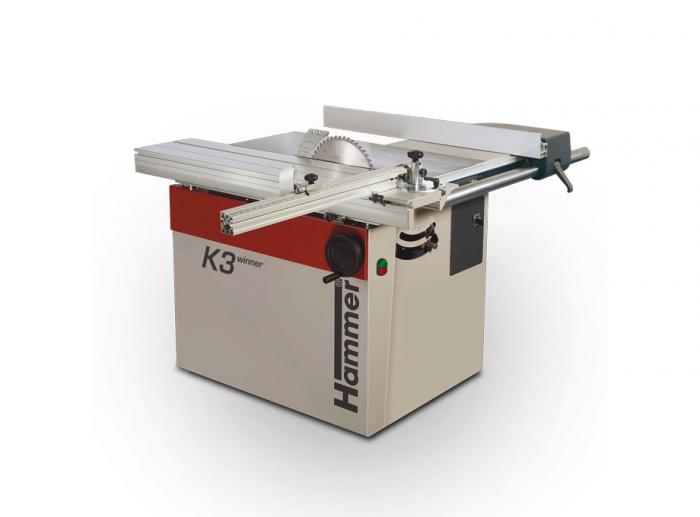

The precision circular saw for the discerning woodworker.
Exact rip cuts as well as precise cross, mitre and format cuts with the smooth operation of the format sliding table. These are the qualities that discerning woodworkers like you expect in a precision circular saw.
Above and beyond that, the K3 winner gives you the features you’d expect from a quality Hammer product: the precision circular saw unit, the cross-cut stop with the scale set at an angle, a magnifying lens to assist with making exact adjustments, and the rip fence with fine adjustment system, guided on a large round bar.
The K3 winner is the choice for discerning woodworkers.
|Motor||3kW (4hp) single phase|
|Max. saw blade Ø||315mm|
|Max. cutting height @ 90º||103mm|
|Saw blade speed||4800rpm|
|Sliding table length||800 (1200 or 2000mm option)|
|Crosscut fence length||900mm (1300 option)|
Specs shown are for the standard model we offer, but Felder offer a wide variety of options, so talk to us about customising a machine to suit you.
Specifications are subject to change without notice.
K3 Winner Panel Saw
SA250STE Sliding Table Saw
K500S Panel Saw
K3 Basic Panel Saw
K3 Winner Comfort Panel Saw
|Motor||3kW (4hp) single phase||2.2kW (3hp) with 15amp plug||4kW (5.5hp) 3 phase or 3kW (4hp) single phase||3kW (4hp) single phase||3kW (4hp) single phase|
|Max. cutting height @ 90º||103mm||80mm||104mm||103mm||103mm|
|Saw blade speed||4800rpm||3000rpm||4800rpm||4800rpm||4800rpm|
