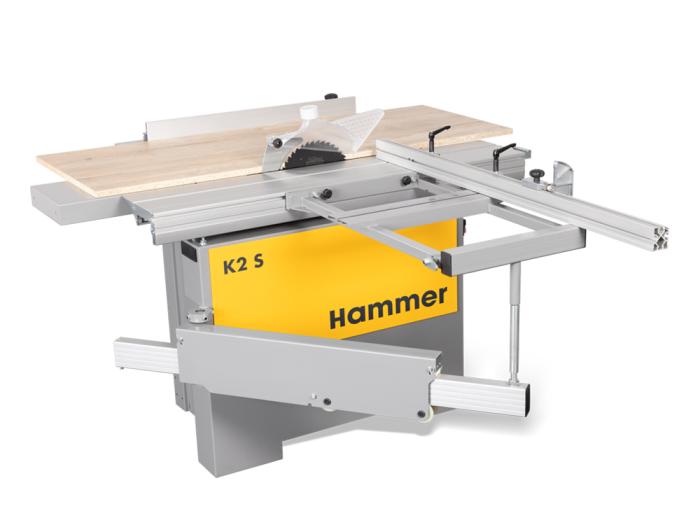

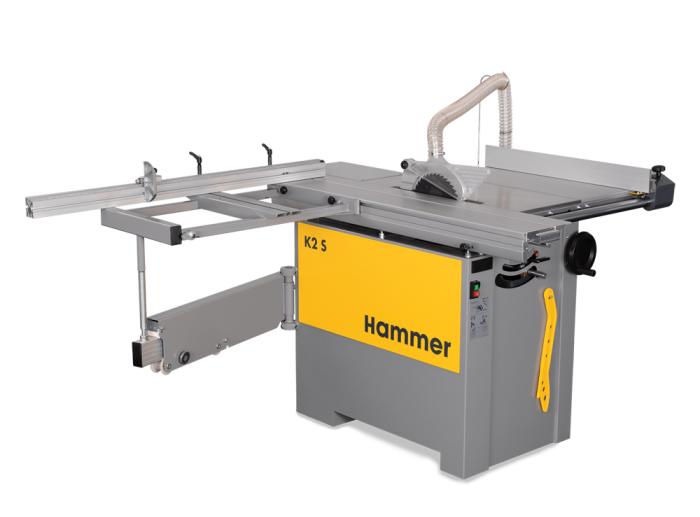

The compact HAMMER K2S sliding table saw offers everything for the ambitious DIY enthusiast and craftsman in the smallest of spaces.

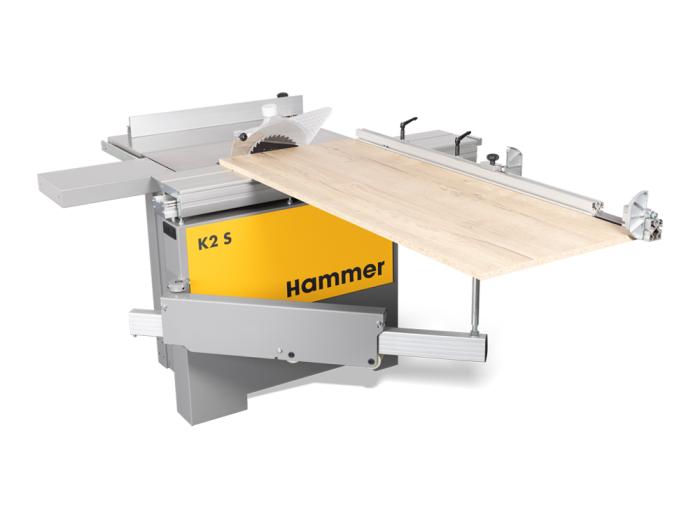

Precise format cuts can be made with the sliding table in conjunction with the outrigger table.
The Hammer circular saw unit impresses with its smooth running, precision and extreme ease of use. The large cutting height of 80 mm leaves nothing to be desired. Circular saw blades up to 254 mm in diameter can be lowered completely under the circular saw table. The circular saw blade is easily accessible and changing the saw blade is child's play.
Make an enquiry about the Hammer K2S

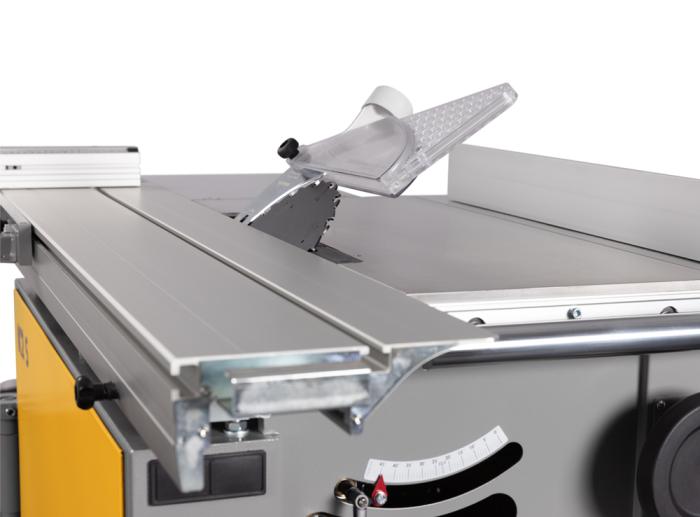

Sliding table
The aluminium sliding table ensures precision from the very first cut. Guaranteed Hammer stability and precision: the heavily ribbed, milled and anodised aluminium hollow chamber profile of the sliding table, combined with the high-quality guide system, ensures absolutely play-free running!

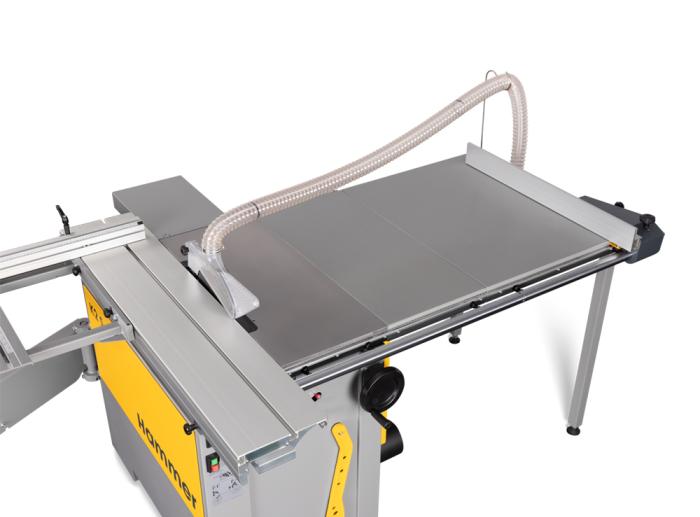

Outrigger and crosscut fence
The outrigger table provides additional surface support and precision when processing large dimensioned and heavy workpieces. In combination with the aluminium crosscut fence 1300, your Hammer with outrigger table becomes a complete, large panel saw.
Continuously variable tilt range between 0° and 45°
The continuously variable tilt range between 0° and 45° ensures precise mitre cuts. End stops at the 0° and 45° position ensure exact positioning of the settings. A large scale allows precise positioning and easy read-out of the corresponding values. Both the height adjustment and the angle adjustment can be done directly from the operator's side. Delivery includes 1 handwheel.

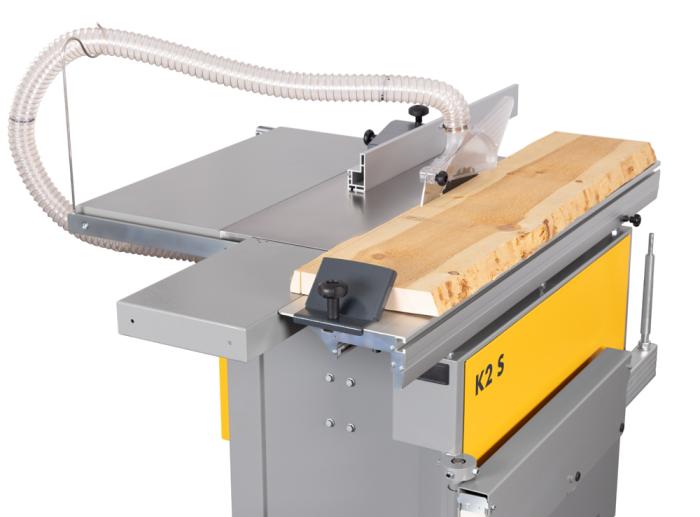

Rip fence
The cutting width on the saw table can be adjusted continuously between 0 and 610 mm . Thanks to the integrated scale in the guide rail, the aluminium fence can be precisely set to the desired position. When carrying out angled cuts with a tilted saw blade it is possible to move the fence from the horizontal to the flat position. The narrow fence edge then enables the rip cutting of very thin workpieces.
Saw aggregate
The Hammer saw aggregate impresses with smoothness, precision and extreme user friendliness. The large cutting height of 80 mm leaves nothing to be desired. Saw blades with up to 254 mm diameter can be lowered completely below the level of the saw table. The saw blade is simple to access and can be changed with ease.

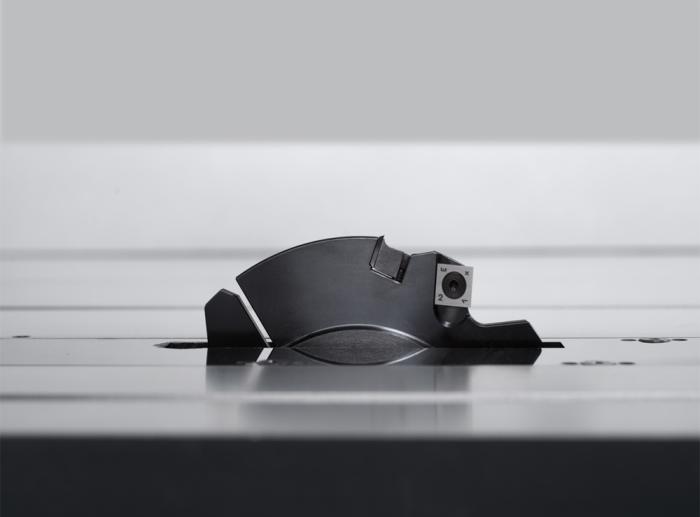

Grooving slot and tenoning
The Hammer panel saw is configured at the factory for the use of special adjustable dado tools. The dado tool can be fitted to the saw arbour and makes it possible to make various width grooves, tenons and slots of between 8 and 19.5 mm in width.
Hammer code: 500-07-203
A layout diagram is available here
| Max. saw blade Ø | 254mm |
|---|---|
| Max. cutting height @ 90º | 80.5mm (with 254mm blade) |
| Rip capacity | 610mm |
| Saw blade speed | 5000rpm |
| Sliding table length | 1250mm |
| Motor | 1.9kW |
| Dust extraction | 100mm |
| Dimensions (L x W x H) | 875 x 600 x 1210mm |
| Blade tilt | 0° - 45° |
| Weight | 200kg |
| Prepared for grooving tool insert | Dado 5-20mm wide x 180 dia |
Specs shown are for the standard model we offer. Variants may be available.
Specifications are subject to change without notice.
K2S
|
SA250ST Sliding Table Saw
|
K3 Basic Panel Saw
|
K2M
|
|
|---|---|---|---|---|
| Max. cutting height @ 90º | 80.5mm (with 254mm blade) | 75mm | 103mm | 80.5mm (with 254mm blade) |
| Saw blade speed | 5000rpm | 3000rpm | 4800rpm | 5000rpm |
| Rip capacity | 610mm | 630mm | 700mm | 610mm |
| Weight | 200kg | 200kg | 240kg | 150kg |
| Motor | 1.9kW | 2.2kW (3hp) with 15amp plug | 3kW (4hp) single phase | 1.9kW |
