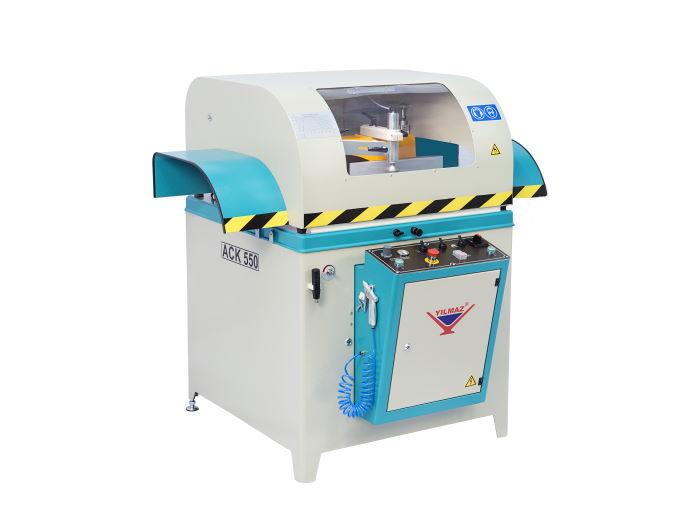

The ACK550S is an upcut saw produced by Yilmaz for straight and mitre cutting of larger profiles or bundle/stack cutting.

Due to the smart design of the ACK550S some common problems associated with drop saws have been eliminated. Offcuts are no longer thrown by the blade as the clamps can be set very close to the blade allowing even very short offcuts to be clamped. Clamps are pneumatic and pressure regulated, while blade feed is controlled via a hydro-pneumatic (air over oil) feed system, which allows fully adjustable speed control from the front panel.

Totally guarded with safety microswitches and requiring two-hand push button operation, the Yilmaz ACK550S complies with New Zealand Safety standards for mitre saws.

Make an enquiry about the Yilmaz ACK550S Upcut Saw

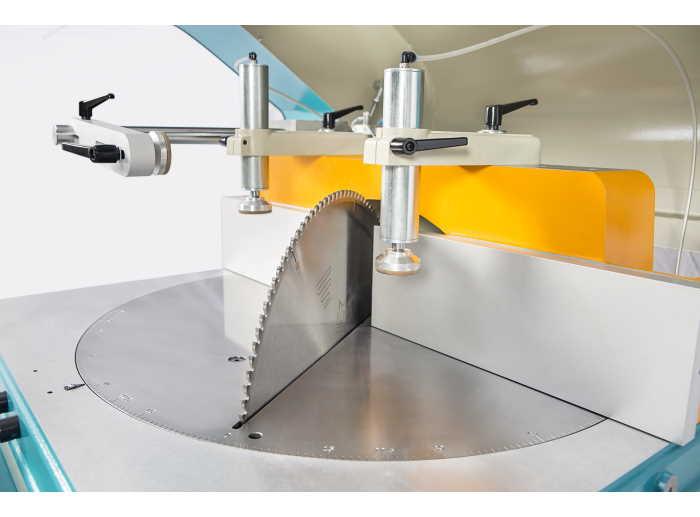

ACK550S Rotating Table

The ACK550S has a rotating table between 75 degrees left to 75 degrees right and indexed location pins at common intermittent angles for accurate and rapid set-up for both mitre cutting and straight cutting.

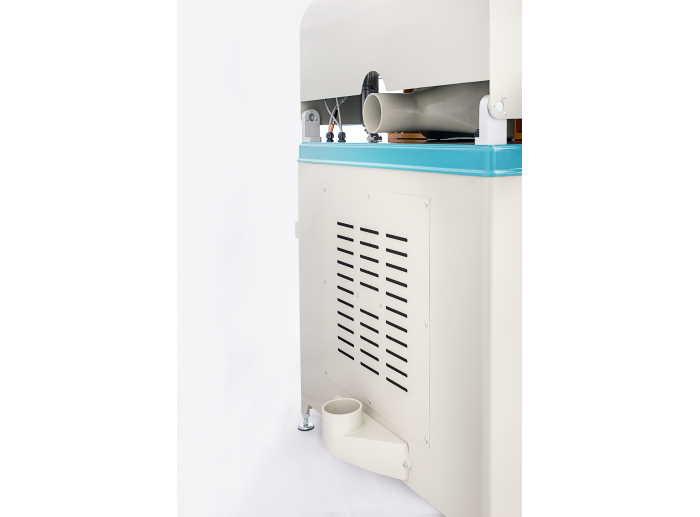

ACK550S Extraction Ports

On the rear of the machine are two extraction ports, one providing extraction from behind the saw fence and the other extracting from underneath the table.

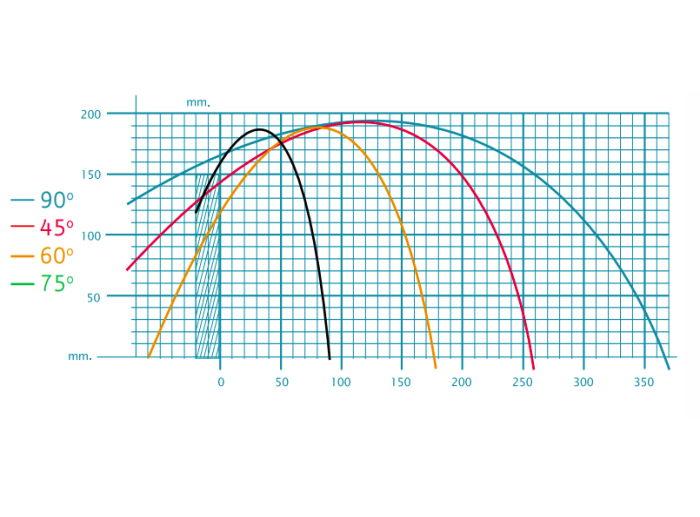

ACK550S Capacity

  • 550mm blade capacity with adjustable hydro-pneumatic saw feed
  • Pneumatic spray-mist blade lubrication
  • Pivoting range from -75° left to +75° right infinitely adjustable
  • Location points at 75°,60°,45°,30°,22.5°,15°,0° both left and right
  • Two-hand run safety operation
  • Interior LED lighting
  • Pneumatically opening safety hood with safety switches
  • 2 pneumatic vertical clamps
  • 1 pneumatic horizontal clamps
  • Air gun
  • High-quality Aluminium TCT blade included (550mm)
Saw blade Ø 550mm
Max. cutting height @ 90º 195mm
Saw blade speed 2400rpm
Motor 4kW (5.5hp) 3 phase
Air pressure 6-8 bar
Bore Ø saw spindle 30mm
Air consumption 160L/min
Weight 373kg

Specifications are subject to change without notice.

ACK550S Upcut Saw
ACK550S Upcut Saw
ACK420S Upcut Saw
ACK420S Upcut Saw
ACK700S Upcut Saw
ACK700S Upcut Saw
Motor 4kW (5.5hp) 3 phase 2.2kW 3-phase 4kW (5.5hp) 3 phase
Weight 373kg 210kg 500kg
Saw blade Ø 550mm 420mm 700mm
Saw blade speed 2400rpm 3000rpm 2000rpm
Air pressure 6-8 bar 6-8 bar 6-8 bar
Air consumption 160L/min 34L/min 180L/min
Bore Ø saw spindle 30mm 30/32 mm 38mm
