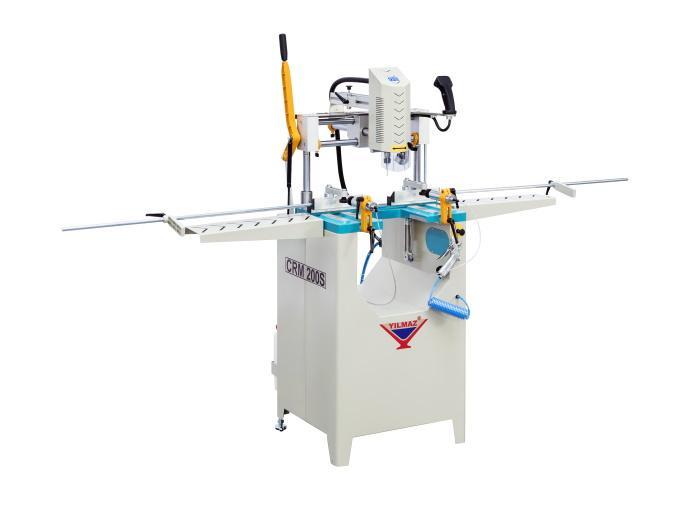

The CRM200S is the new single-head copy router from Yilmaz which sets a new benchmark for small aluminium machinery.

The high-frequency motor in the CRM200S is a smaller, more energy efficient and more powerful version than the motor in the FR221S. The higher frequency motor also helps to provide a superior finish.

The hollowed base allows for through cutting while the horizontal and vertical clamps prevent any movement of the workpiece. Table extensions with end stops to the left and right are provided as standard to support longer profiles.

The position of the lubrication unit can be adjusted to suit the tool length which enhances both the router bits life and quality of cut

Make an enquiry about the Yilmaz CRM200S Copy Router

Included Equipment:

  • Light-weight, powerful and efficent motor
  • Ergonomic 'joystick' hand control with gas-assisted lever for head movement
  • Horizontal and vertical pneumatic clamps
  • Cast aluminium machining table with hollowed base
  • Air gun
  • Pneumatic router lubrication unit
Motor 1.2kW (1.6hp) single-phase
Spindle speeds 18,000rpm
Weight 120kg

Specifications are subject to change without notice.

CRM200S Copy Router
CRM200S Copy Router
FR221S Copy Router
FR221S Copy Router
CRM250S Copy Router
CRM250S Copy Router
Motor 1.2kW (1.6hp) single-phase 750W (1hp) 3-phase 550W 1-phase 3x 1.1kW (1.5hp) 3-phase
Weight 120kg 72kg 370kg
Spindle speeds 18,000rpm 14,000rpm 18,000rpm

Jacks and Yilmaz provide a range of accessories to suit your manufacturing needs, including:

  • machine stands
  • cutting lubricant to ensure your cutting is accurate and your tooling is kept in the best shape
  • clamp and lubricant sprays to ensure you can process your materials securely and efficiently
  • saw blades. We stock a variety of blades including specialist blades for aluminium



CE Logo

All Yilmaz machines Jack sell meet the requirements for ‘CE’ or European Conformity – the strict standards for safety, public health and consumer protection as required by the European Union.
