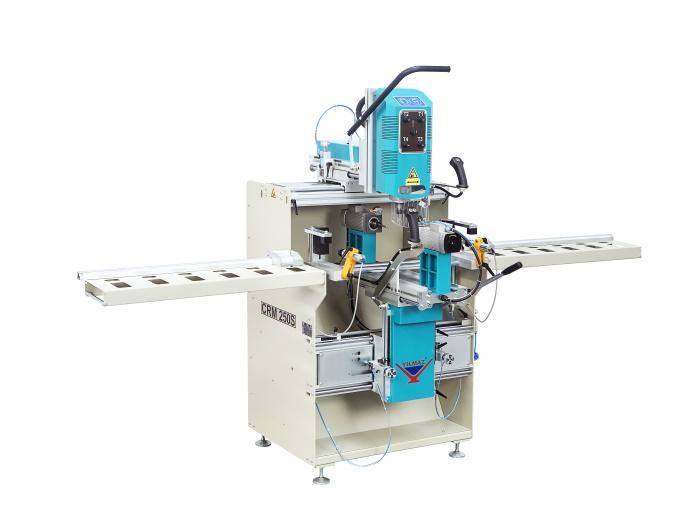

The CRM250S is a heavy duty copy router designed to machine on 3 sides of the profile without releasing the workpiece.
The three independent spindles with pneumatically controlled tracing pins ensure the datum point is the same across all 3 faces as there is no movement of the workpiece, making the CRM250S both extremely accurate and fast.
The hollowed base allows for through cutting while the horizontal and vertical clamps prevent any movement of the workpiece. Table extensions with end stops to the left and right are provided as standard to support longer profiles.
Precision is guaranteed with each tracing pin having 4 compensation points for the tool diameter being used: ø 0, 5, 8 and 10mm.
Make an enquiry about the Yilmaz CRM250S Copy Router

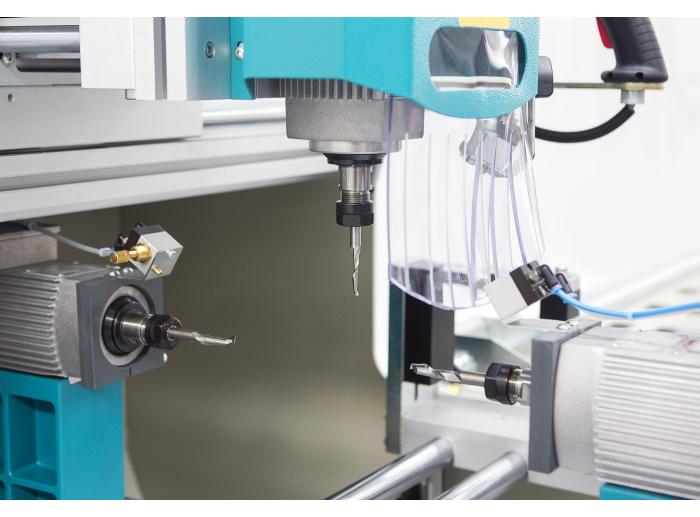

Three Independent Spindles
The three independent spindles allow the exact same datum point across all 3-faces of the workpiece providing unbeatable precision and speed during the machining process.
Included Equipment:
- Pneumatically controlled tracing pin with tool diameter compensation
- Smooth and easy movement with gas spring and ergonomic handles
- 2 Horizontal pneumatic clamps
- 2 Vertical pneumatic clamps
- 2 Large 1000mm support tables with position stops
- Air gun
- Pneumatic router lubrication unit
| Motor | 3x 1.1kW (1.5hp) 3-phase |
|---|---|
| Air pressure | 6 - 8 bar |
| Spindle speeds | 18,000rpm |
| X, Y, Z working area | 650 x 180 x 170mm |
| Air consumption | 10L/min |
| Weight | 370kg |
Specifications are subject to change without notice.
CRM250S Copy Router
|
FR221S Copy Router
|
|
|---|---|---|
| Motor | 3x 1.1kW (1.5hp) 3-phase | 750W (1hp) 3-phase 550W 1-phase |
| Weight | 370kg | 72kg |
| Spindle speeds | 18,000rpm | 14,000rpm |
| X, Y, Z working area | 650 x 180 x 170mm | 270 x 110 x 130mm |
Jacks and Yilmaz provide a range of accessories to suit your manufacturing needs, including:
- machine stands
- cutting lubricant to ensure your cutting is accurate and your tooling is kept in the best shape
- clamp and lubricant sprays to ensure you can process your materials securely and efficiently
- saw blades. We stock a variety of blades including specialist blades for aluminium
All Yilmaz machines Jack sell meet the requirements for ‘CE’ or European Conformity – the strict standards for safety, public health and consumer protection as required by the European Union.
