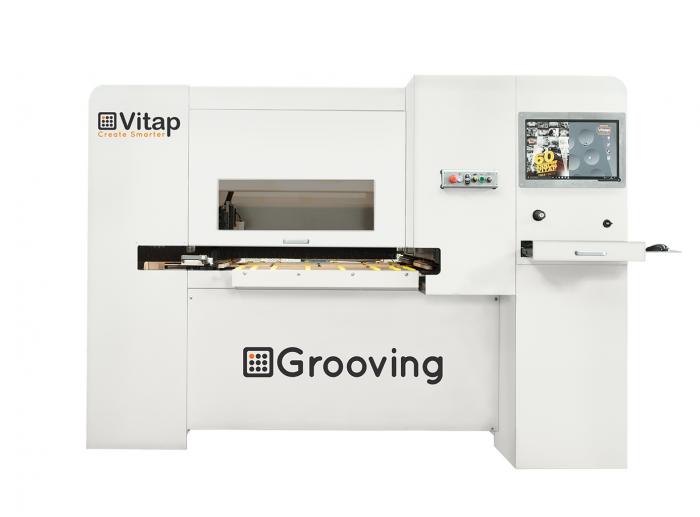

The Vitap Point Grooving is designed for rapid and precise production of acoustic and sound absorbing panels by means of CNC sawing.

  • Ability to groove up to 6 grooves simultaneously.
  • Variety of grooving head shapes are available as an option to suit all acoustic panel designs
  • Quick-change HSK coupling
  • Modern and easy to use programming software
  • Low running costs due to no vacuum pumps
  • Enclosed working area for reduced noise emissions
  • Excellent dust extraction
  • Small footprint - 4.3m²



Make an enquiry about the Vitap Point Grooving CNC

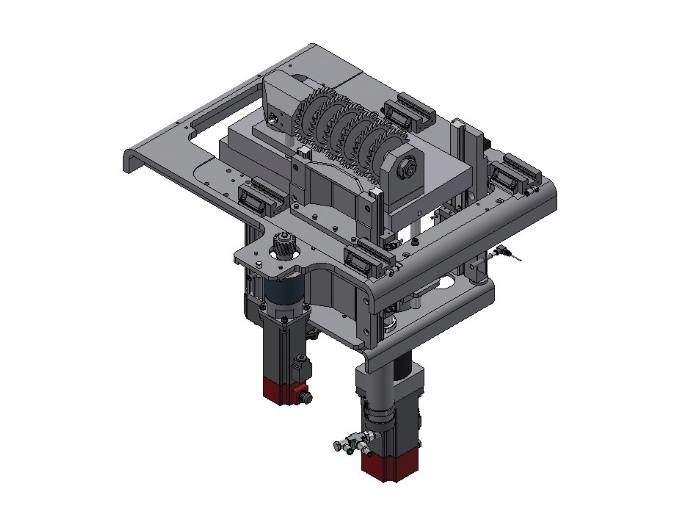

Standard grooving head

The standard grooving head features 6 sawblades with 32mm central intervals. Custom grooving heads can be made on request as an option. Quick-change HSK couplings allow rapid changing of the blades.

Motor 2.8kW
X, Y, Z working area Maximum: X=Unlimited, Y=1250mm, Z=50mm
X, Y, Z working area Minimum: X=450mm, Y=150mm, Z=12mm
Drilling head Standard: 6 Saws (1x6 @ 32mm intervals)
Spindle speeds 7000
Maximum cutting depth ???

Specifications are subject to change without notice.

Point Grooving CNC
Point Grooving CNC
Point Acoustic CNC
Point Acoustic CNC
Motor 2.8kW 8kW
X, Y, Z working area Maximum: X=Unlimited, Y=1250mm, Z=50mm Maximum: X=Unlimited, Y=1250mm, Z=50mm
X, Y, Z working area Minimum: X=450mm, Y=150mm, Z=12mm Maximum: X=Unlimited, Y=1250mm, Z=50mm
Drilling head Standard: 6 Saws (1x6 @ 32mm intervals) Standard: 55 Spindle (11x5 @ 32mm intervals)
Spindle speeds 7000 2800rpm
Maximum cutting depth ??? 45mm
