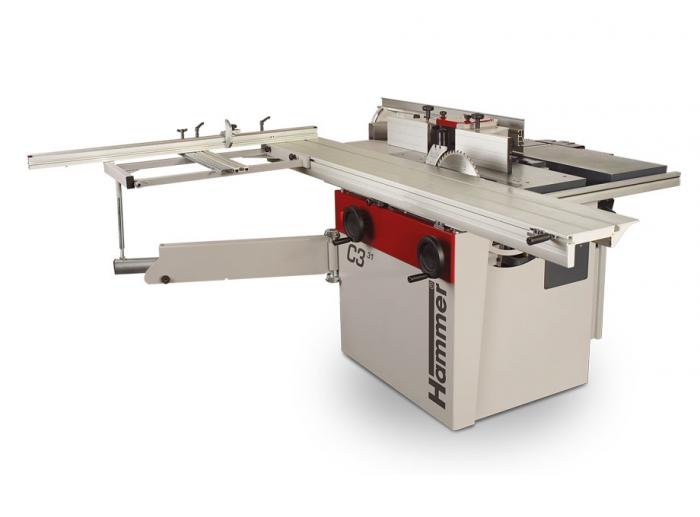

Hammer’s C3 31 with the Comfort feature package is an outstanding combination machine and meets the highest expectations of the woodworking enthusiast and professional.
This Comfort model combination includes features that have been most popular with Felder Group customers over the years. A cutting length of 2000mm and an outrigger table give you the best supporting surface when working with larger workpieces.
In addition to the features of the C3 31, the Comfort model offers:
Please note machine images may show optional equipment.

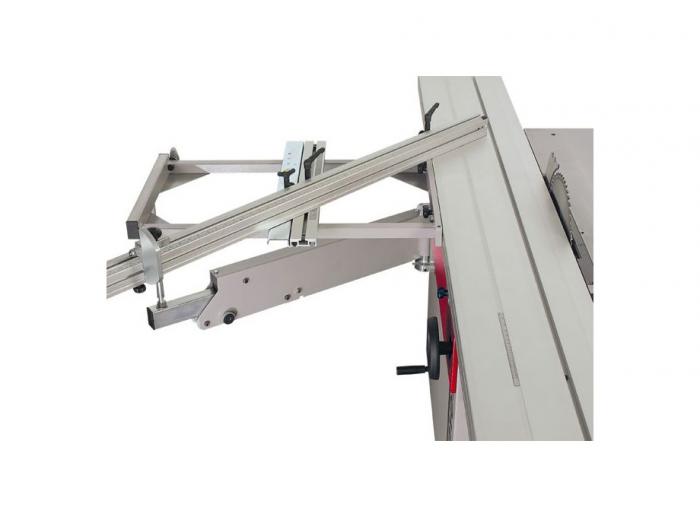

Enjoy even more performance at a great price with the Comfort Feature Package including anodised format sliding table of 2000mm, outrigger table and precision mitre index for angular cuts.

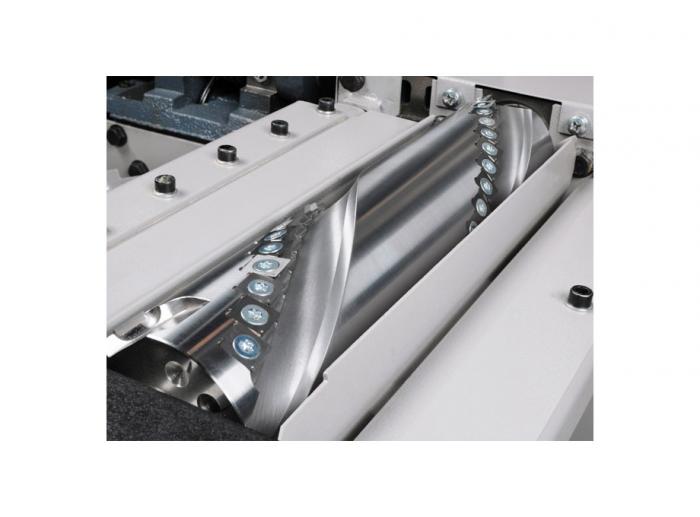

For tear-free results, low noise and twenty times the usable blade life, Silent-POWER cutterblock offers outstanding value.
Also available: a 3 knife quick-change, self-setting cutterblock system enables simple and accurate planer knife changes in seconds.
Perfection in woodworking with the Hammer combination machine. See for yourself the precision and versatility of the Hammer Combi and observe just how easy it is to make a high class rocking chair using wood from the Black Locust tree.
See the benefit of a Silent-POWER cutterblock.
|Motor||3 x 3kW single phase (3 phase available)|
|Knives||Silent-POWER spiral-knife block|
|Maximum workpiece thickness||225mm (thicknesser)|
|Feed speed||6m/min (thicknesser)|
|Maximum cutting depth||4mm (planer)|
|Working width||310mm (planer)|
|Length of tables||1400mm (planer)|
|Saw blade Ø||250 - 315mm|
|Saw blade speed||4800rpm (saw)|
|Max. cutting height @ 90º||103mm|
|Sliding table length||2000mm|
|Spindle speeds||3000 / 6000 / 8000 / 10,000rpm|
|Table opening Ø||180mm max tool diameter|
|Crosscut fence length||1300mm|
|Outrigger table size||1100mm|
Specs shown are for the standard model we offer, but Hammer offer a wide variety of options, so talk to us about customising a machine to suit you.
Specifications are subject to change without notice.
C3 31 Comfort Combi
C3 31 Combi
C3 31 Perform Combi
|Motor||3 x 3kW single phase (3 phase available)||3 x 3kW single phase (3 phase available)||3 x 3kW single phase (3 phase available)|
|Knives||Silent-POWER spiral-knife block||Silent-Power spiral-knife block||Silent-POWER spiral block|
|Maximum workpiece thickness||225mm (thicknesser)||225mm (thicknesser)||225mm (thicknesser)|
|Feed speed||6m/min (thicknesser)||6m/min (thicknesser)||6m/min (thicknesser)|
|Maximum cutting depth||4mm (planer)||4mm (planer)||4mm (planer)|
|Working width||310mm (planer)||310mm (planer)||310mm (planer)|
|Length of tables||1400mm (planer)||1400mm (planer)||1400mm (planer)|
|Saw blade Ø||250 - 315mm||250 - 315mm||250 - 315mm|
|Saw blade speed||4800rpm (saw)||4800rpm (saw)||4800rpm (saw)|
|Max. cutting height @ 90º||103mm||103mm||103mm|
|Sliding table length||2000mm||800mm||2500mm|
|Spindle speeds||3000 / 6000 / 8000 / 10,000rpm||3000 / 6000 / 8000 / 10,000rpm||3000 / 6000 / 8000 / 10,000rpm|
|Table opening Ø||180mm max tool diameter||180mm max tool diameter||180mm max tool diameter|
|Crosscut fence length||1300mm||900mm||2600mm|
Visit Felder's youtube channel for videos on the Felder Group range of machines.
Made in Austria, Hammer machines are for hobby and small business requirements and offer a fantastic price-performance ratio. Part of the Felder Group.
