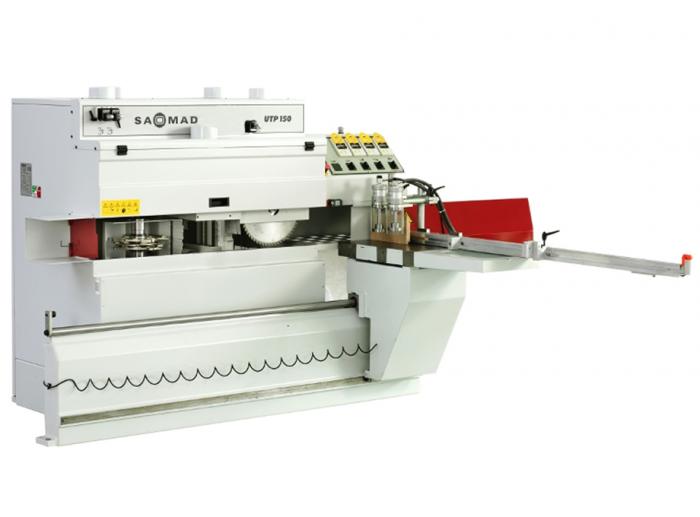

UPT-150/1
Through lateral movement of the saw blade and spindle, a quick change HSK 63 system and control panel layout, the UPT 150/1 provides maximum functionality, versatility and ease of use.
- Encased on all sides to minimise noise and keep the operator safe
- A very heavy duty cast iron frame helps ensure excellent performance and accuracy
- HSK 63 quick change spindle
- Three decimal position readouts with quick locking system
- Manual tenoning carriage with lineal bearings sliding on round bar
Make an enquiry about the Saomad UPT 150/1
| Max. saw blade Ø | 400mm |
|---|---|
| Maximum cutting height | 125mm |
| Maximum cutting width | 320mm |
| Motor saw and tenon head | 6.7kW (9.5hp) |
| Motor cope head | 3kW (4hp) |
| Maximum tenon length | 150mm |
| Max. cope cutter size | 320mm |
| Sliding table area | 1030 x 320mm |
| Bore Ø cope spindle | HSK63 x 40mm |
| Bore Ø saw spindle | 30mm |
| Spindle speed cope spindle | 3600 rpm |
| Spindle speed saw spindle | 300 rpm |
| Weight | 1700kg |
Specifications are subject to change without notice.
UPT 150/1
|
ST152A Tenoner
|
|
|---|---|---|
| Maximum tenon length | 150mm | 152mm |
| Maximum cutting width | 320mm | 370mm |
| Maximum cutting height | 125mm | 127mm |
| Motor saw and tenon head | 6.7kW (9.5hp) | 3.7kW (5hp) |
| Motor cope head | 3kW (4hp) | 2.2kW (3.2hp) |
| Max. cope cutter size | 320mm | 300mm |
| Bore Ø cope spindle | HSK63 x 40mm | 25.4mm |
| Bore Ø saw spindle | 30mm | 31.75mm |
| Spindle speed cope spindle | 3600 rpm | 3600rpm |
| Spindle speed saw spindle | 300 rpm | 2800rpm |
| Sliding table area | 1030 x 320mm | 1280mm x 450mm |
| Weight | 1700kg | 530kg |
