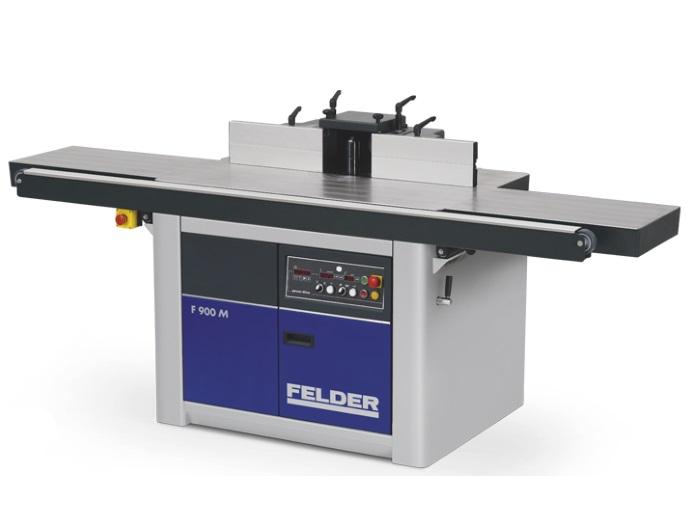

Felder's F900M Spindle Moulder is the heaviest in the Felder range and is perfectly suited for daily industrial use where precision and reliability is key.

Features include:

  • Massive solid cast iron table offering vibration-free stability
  • Tool free moulder spindle quick change system for high productivity
  • Spindle moulder fence, moulder spindle height and angles can be precisely adjusted using electrical height and angle control
  • Maximum safety in all aspects: rearward tilting spindle with 320 mm table opening
  • High performance spindle aggregate with accurate double guiding system and a 6 year guarantee on the tilting segment guide 'Easy-Glide'
  • Dual extraction ports for optimal dust removal

Please note machine images may show optional equipment.

Make an enquiry about the Felder F900M Spindle Moulder

Easy-Glide tilt segments

The patented Easy-Glide tilt segments use a special synthetic material inside the double-supported cast-iron supports to provide absolutely precise guidance, long life-span and a smooth tilt unaffected by dust. Provided with a 6-year factory guarantee.

Quick change spindle system

Quick and easy change of the spindle with no tools. Allows the use of a interchangeable router spindle, along with additional 30, 32, 35, 40, 50 mm spindles. Provided with one 1 1/4" spindle.

Rearward tilting spindle

The rearward spindle tilt ensures safety and quality. By eliminating a pinch point between the spindle and the table the operator has a much safer working environment. In addition, there is no limitation on work-piece height, problem-free power-feeder operation and optimal dust extraction by the hood.

Large table opening

The massive 320mm table opening allows for larger tools to be fitted onto the machine and lowered beneath the table such as tenoning and panel raising cutter heads.

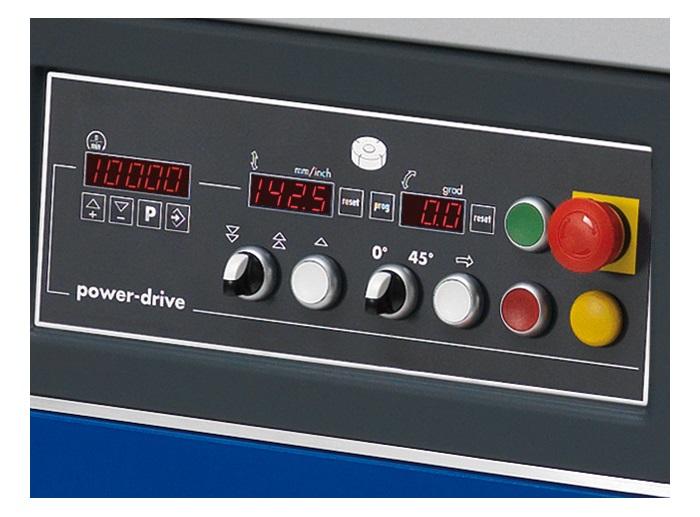

Powerdrive controller

The Power-Drive "F2" controller with a highly legible LED display allows precise and quick adjustment of the spindle height and angle electronically.

Spindle Ø 1 ¼"
Spindle speeds 3500 /4500 / 6000 / 8000 / 10,000rpm
Motor 5.5kW (7.5hp)
Weight 730kg
Spindle travel 140mm
Spindle tilt 0 - 45°
Table opening Ø 320mm
Working height 890mm

Specs shown are for the standard model we offer, but Felder offer a wide variety of options, so talk to us about customising a machine to suit you.

Specifications are subject to change without notice.

F900M Spindle Moulder
F900M Spindle Moulder
F700Z Spindle Moulder
F700Z Spindle Moulder
F3 Spindle Moulder
F3 Spindle Moulder
Spindle Ø 1 ¼" 1 ¼" 1 ¼"
Spindle speeds 3500 /4500 / 6000 / 8000 / 10,000rpm 3500 / 6500 / 8000 / 10,000rpm 3000, 6000, 8000 & 10,000rpm
Motor 5.5kW (7.5hp) 5.5kW (7.5hp) 3kW (4hp) single phase. 3 phase avail
Weight 730kg 450kg 350kg
Spindle travel 140mm 115mm 100mm
Table opening Ø 320mm 230mm 180mm

Visit Felder's youtube channel for videos on the Felder Group range of machines.

Felder offer woodworking machine specialists for industry, business and hobby use. Tradition – Innovation – Perfection.
