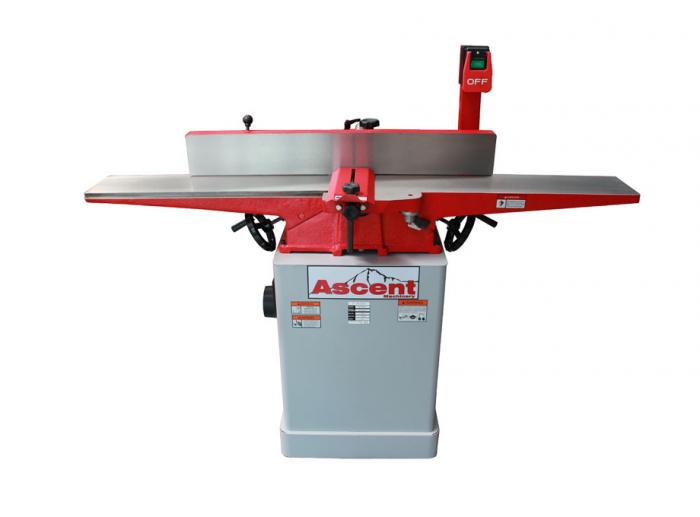

The BU150F Surface Planer is an excellent home workshop machine. You get a quality 150mm (6") wide buzzer at an affordable price.
- Heavy cast iron construction - absorbs vibration for cleanest finish
- Long tables for efficient straightening
- Cast iron fence with truly massive mounting: tilts +/-45°
- Generous support for rebating - very useful for joinery work
- Both tables run in machined dovetail ways with large handwheels (Adjustable rear table is essential for shooting hollow joints)
- Pedestal switch - no fumbling around at knee level
- Full cabinet stand incorporating shavings chute gives excellent bracing
- Knife setting device included
Some assembly required.
$1,260.87 ex GST
$1,450.00 inc GST
Make an enquiry about the Ascent Machinery BU150F Surface Planer

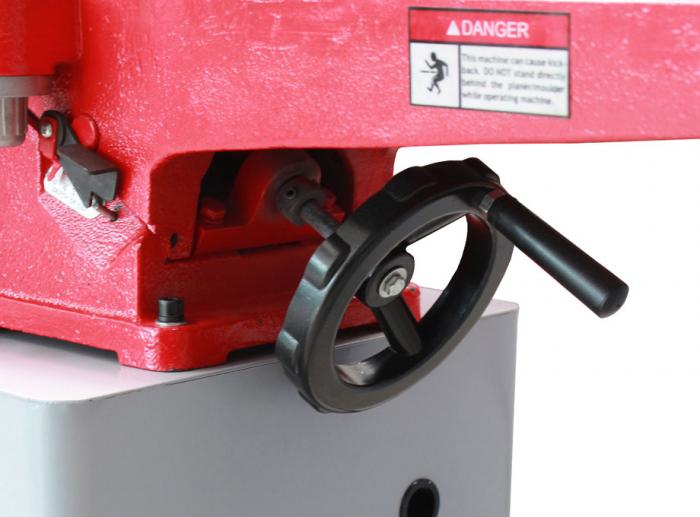

Large handwheels for controlled table adjustment
Allows for easy raising and lowering of the table to suit all sizes.

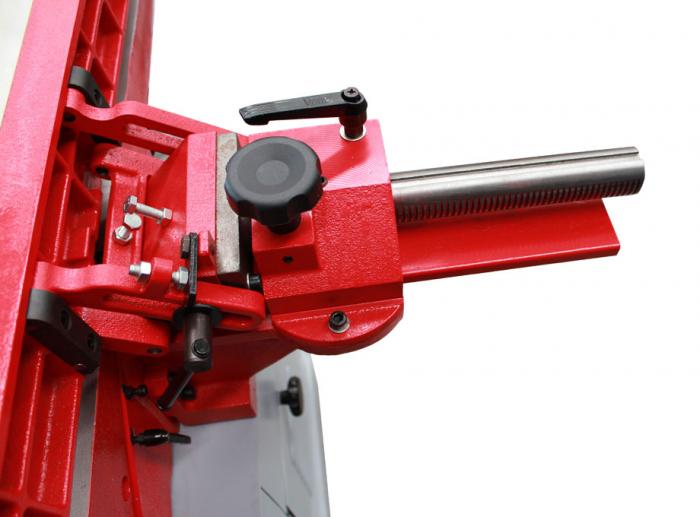

Solid accurate fence
Fence adjustment is quick via cam locking.
The heavy-duty cast iron fence can tilt +/-45° for chamfer planing.
Bridge guard meets NZ Safety regulations. Precision rip fence setting by rack & pinion.
| Working width | 150mm |
|---|---|
| Motor | 0.75kW (1hp) |
| Length of tables | 1535mm |
| Cutterblock speed | 4400rpm |
| Maximum rebating depth | 12.7mm |
| Fence tilt | -45 to +45° |
| Knives | 3 spring-loaded |
Specifications are subject to change without notice.
BU150F Surface Planer
|
Ascent Machinery BU200F Buzzer
|
|
|---|---|---|
| Knives | 3 spring-loaded | 4 spring-loaded knives |
| Cutterblock speed | 4400rpm | 4800rpm |
| Maximum rebating depth | 12.7mm | 12mm |
| Fence tilt | -45 to +45° | -45 to +45° |
| Motor | 0.75kW (1hp) | 1.5kW (2hp) with 15amp plug |
| Length of tables | 1535mm | 1790mm |
| Working width | 150mm | 200mm |
Ascent Machinery is exclusive to Jacks
