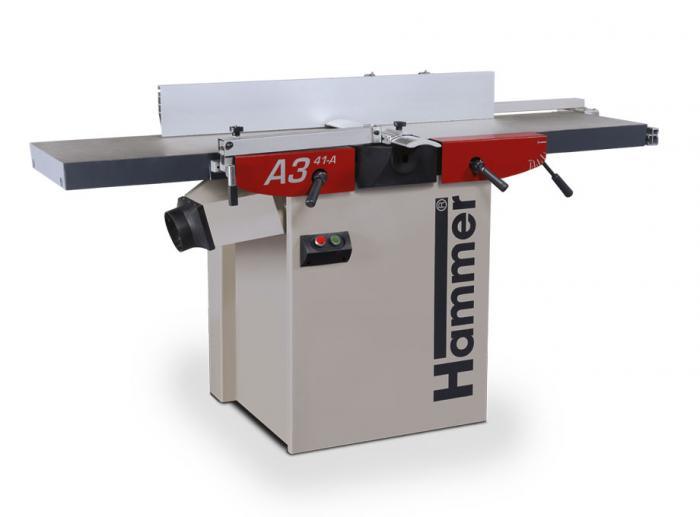

Hammer’s A3 41 Surface Planer (a.k.a. buzzer) gives sensational results for an unbeatable price.
Details such as the long, solid milled planer table made of cast iron offer precise planing work. Long, heavily ribbed cast iron planer tables give precision and stability.
The 3 knife quick-change, self-setting cutterblock enables planer knife changes in a matter of seconds and produces a finish that will please even the most critical eye.
Please note machine images may show optional equipment.
Make an enquiry about the Hammer A3 41A Surface Planer
3 knife quick-change self-setting cutterblock
The 3 knife quick-change, self-setting cutterblock system enables simple and accurate planer knife changes in seconds.
For tear-free results, low noise and twenty times the usable blade life, the A3 4D is also available with a Silent-POWER cutterblock.
Change the blades in record time
Resin-free locking screws and self-setting knives make it possible to change the blade in less than 2 minutes. Time consuming adjustments and purchasing of expensive setting gauges are a thing of the past.

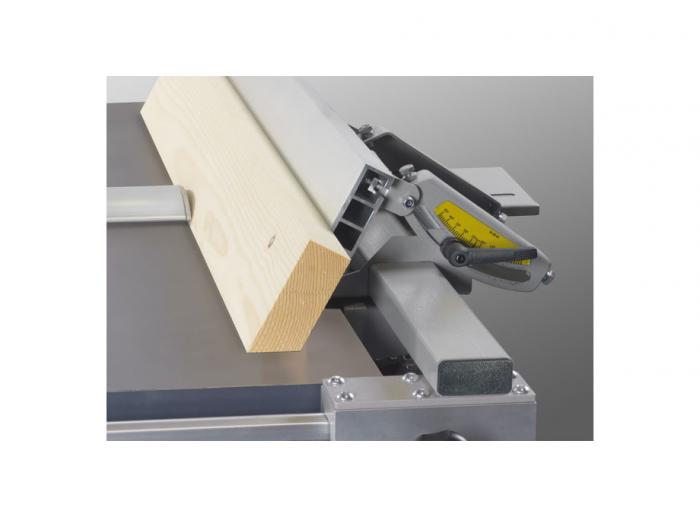

Tiltable planer fence
For planing and bevelling work the planer fence is tiltable from 90° - 45°. The long planer fence profile allows accurate guiding of the workpiece.
| Working width | 410mm |
|---|---|
| Motor | 3kW (4hp) single phase (3 phase available) |
| Length of tables | 1800mm |
| Fence tilt | -45 to +45° |
| Knives | Silent-POWER spiral cutterblock |
| Weight | 340kg |
Specs shown are for the standard model we offer, but Hammer offer a wide variety of options, so talk to us about customising a machine to suit you.
Specifications are subject to change without notice.
A3 41A Surface Planer
|
Ascent Machinery BU200F Buzzer
|
A941 Surface Planer
|
|
|---|---|---|---|
| Motor | 3kW (4hp) single phase (3 phase available) | 1.5kW (2hp) with 15amp plug | 4kW (5.5hp) |
| Weight | 340kg | 210kg | 610kg |
| Working width | 410mm | 200mm | 410mm |
| Fence tilt | -45 to +45° | -45 to +45° | 0 to 45° |
| Length of tables | 1800mm | 1790mm | 2200mm |
| Knives | Silent-POWER spiral cutterblock | 4 spring-loaded knives | Silent-POWER 63 knives |
More details on the A3 41A are available on Felder's website, including full details on the Silent-POWER cutterblock.
Visit Felder's youtube channel for videos on the Felder Group range.
Made in Austria, Hammer machines are for hobby and small business requirements and offer a fantastic price-performance ratio. Part of the Felder Group.
