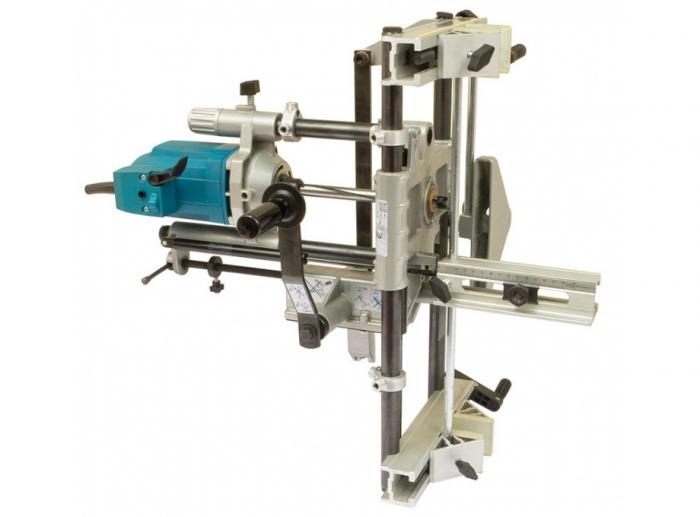

The FC116U is specially designed for quick, precise morticing on doors or other elements, either at the worksite or in the workshop.

Make an enquiry about the Virutex FC116U Lock Morticer

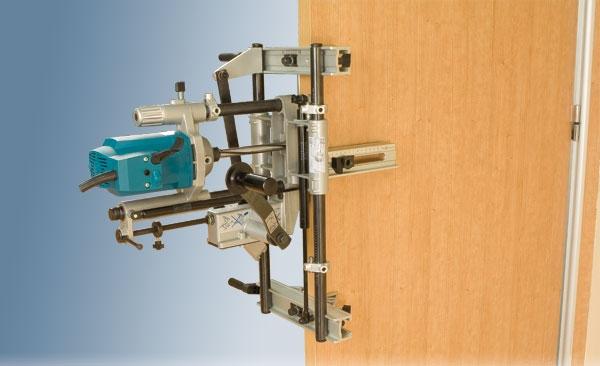

Work on doors on site

This machine's special fixing system allows the mortising of doors that have already been hung, without damaging the surface.

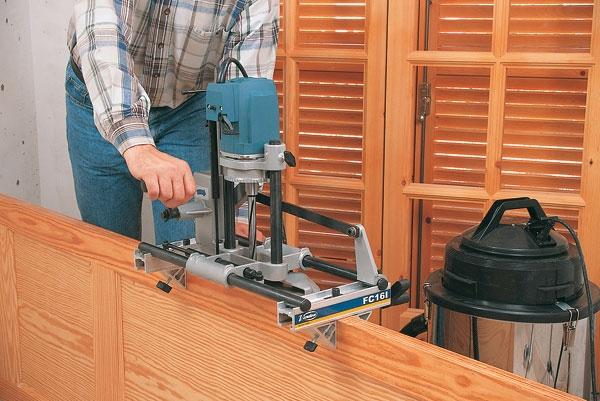

Work horizontally

The machine is also able to work horizontally, which can be especially useful if deciding to make a series of mortises, with the doors unhung.

Work on grooved or overlapping doors

It also allows for mortising of grooved doors or those with overlap, thanks to the possibility of adjusting the centre of the machine over the section of the door where the mortise is required.

Simple measuring system to ensure accuracy

The FC16S incorporates a locking bar, fixed to the machine at the height of the first door, allowing the mortising of the rest of the doors without having to re-measure.

The FC116U comes standard with a hard metal lock mortiser bit Ø 15 mm, locking bar to make mortises on several doors at the same height, rubber protectors for delicate jobs, service keys and dust collector connection.



Motor 1100W
Maximum tool Ø 30mm
Max. saw blade Ø 23,000rpm
Maximum mortising depth 0 - 125mm
Maximum mortising length 177mm + bit ø
Maximum vice opening 190mm

Specifications are subject to change without notice.

FC116U Lock Morticer
FC116U Lock Morticer
Motor 1100W
Maximum tool Ø 30mm
Max. saw blade Ø 23,000rpm
Maximum mortising depth 0 - 125mm
Maximum mortising length 177mm + bit ø
Maximum vice opening 190mm

Virutex has a wide range of machinery and accessories that are available via Jacks.
