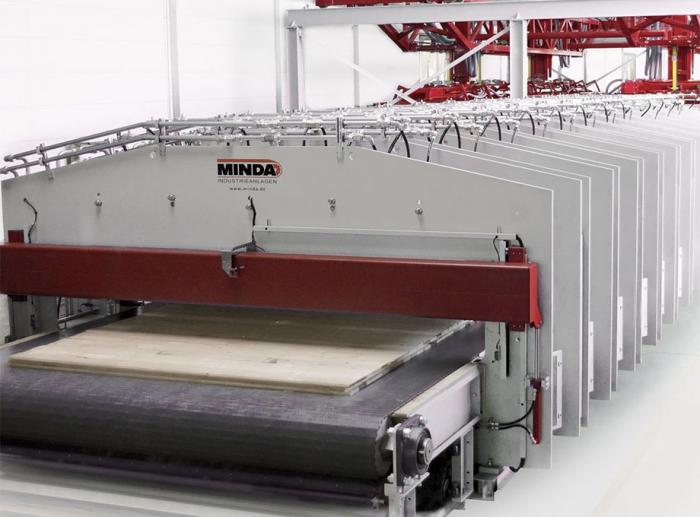

The TimberPress  X300 is designed for producing CLT (Cross-Laminated Timber) in dimensions of up to 18.0m length and 3.5m width, with custom dimensions available on request. These hydraulic CLT presses are appropriate for high production factories.

Depending on your requirements, the longitudinal and cross layers can be compressed of loose workpieces as well as glued boards. In addition to vertical pressure, the press can also be equipped either with longitudinal and cross pressure units for unmatched finish quality.



Special features of the X300:

  • modular design, extendable in a pattern of 600 mm
  • fully automatic feeding and discharge with belt conveyors
  • crosswise alignment with hydraulic pressure elements in a pattern of 1200mm (optionally 600mm)
  • lengthwise alignment with hydraulic pusher device against fences

Make an enquiry about the Minda TimberPress X300

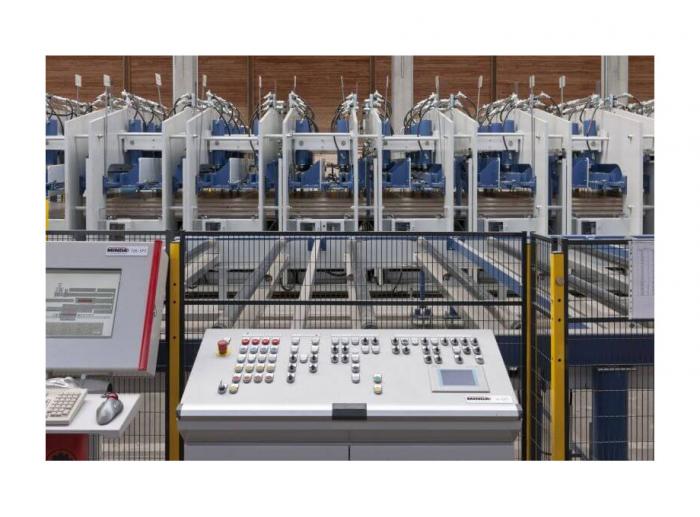

High production capability with efficient and network-compatible control systems

Fully automatic operation

for panel layup and glue application to loose length and cross lamellas.

Advantages of Minda's X300 include:

  • use of fast glues with short open waiting times
  • short pressing times
  • fully-automatic operation from feeding via positioning up to unloading
  • cycle time reduction and cost saving by simultaneous infeed and discharge cycle
  • low energy consumption
  • possibility of incremental capacity increases via additional presses
  • production of pre-assembled CLT packages with automatic length adjustment
  • Press-PC for documentation of pressure and humidity
  • network-compatible control
Pressing height 70 - 400mm
Pressing width 2400 - 3500mm
Pressing length 6000 - 18000mm
Pressing force 0.4/0.6/0.8 N/mm²

Specifications are subject to change without notice.

TimberPress X300
TimberPress X300
Vacuum Press
Vacuum Press
Pressing height 70 - 400mm 300mm, customisable
Pressing width 2400 - 3500mm Customisable
Pressing length 6000 - 18000mm Customisable
Pressing force 0.4/0.6/0.8 N/mm² to 1 atmosphere (0.09 N/mm²)
