If you are looking for precision, performance and quality at an affordable price then Felder's K540S is the machine for you!
- Felder 'X-Roll' sliding table as standard
- 137mm cutting height with a 400mm saw blade
- Stable and compact circular saw unit for long-lasting satisfaction
- 'Easy-Glide' tilting segment guide with a 6 year guarantee
- Zero point tilt for precise mitred cuts
- Maximum energy transfer from the Poly-V belt
Please note machine images may show optional equipment.
Make an enquiry about the Felder K540S Panel Saw

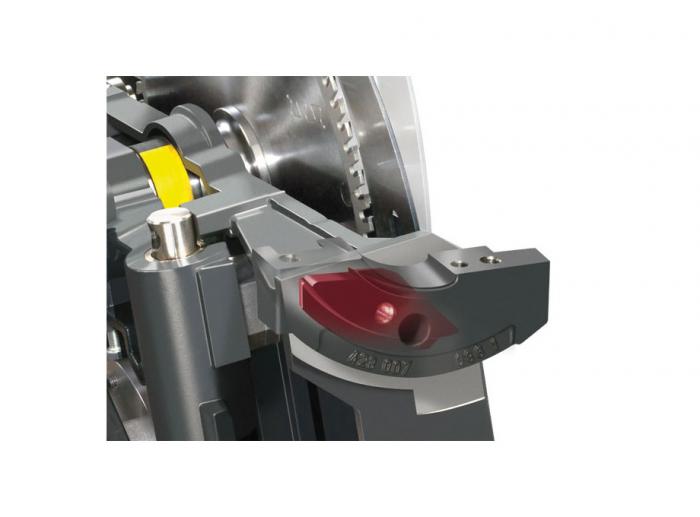

'Easy-glide' system
A highly robust synthetic material located in the guidance track of the tilting brackets ensures they run smoothly, and are maintenance free even under the most extreme conditions. The tilt guide segment runs without lubrication and is insensitive to dust.

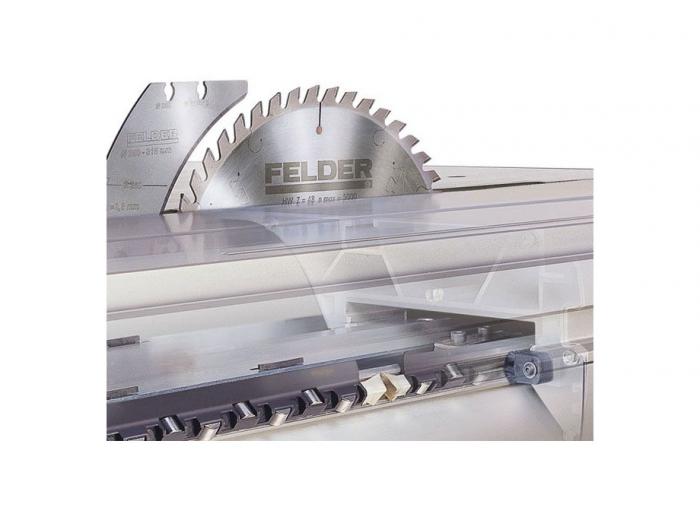

'X-Roll' sliding table
Felder's continuously developed linear guiding system has been astounding woodworkers since 1990. The high quality sliding table guiding technology, 'X-Roll,' offers amazing operating smoothness and is completely maintenance free. The 'x' design of the position of the roller bearings ensures that they move smoothly along hardened guides.

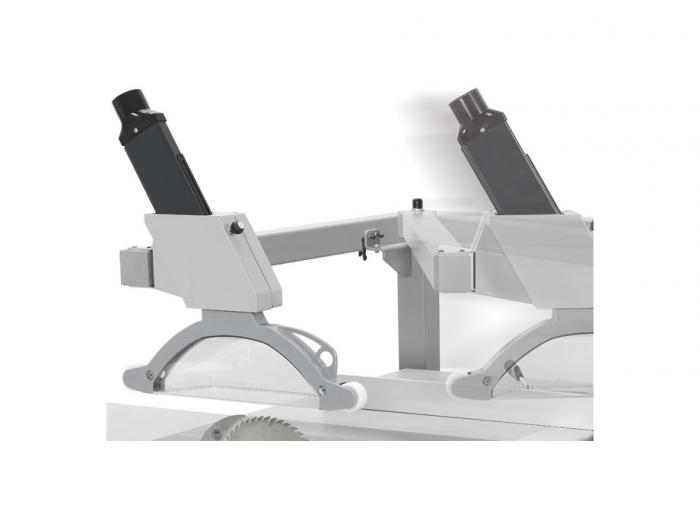

A simple and safe overhead guard
Highest operating safety and maximum flexibility when processing large-dimensioned workpieces: the new Felder overhead sawguard can be swung away easily and is always there where it is required.

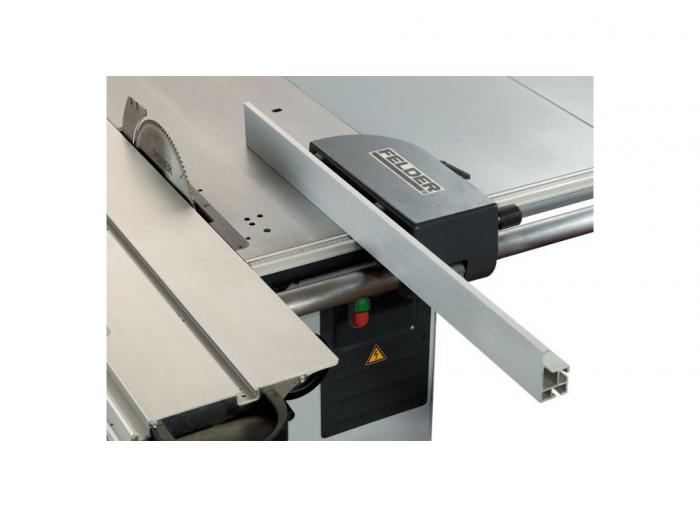

Quick and accurate setting for the rip fence
The single handed adjustment system ensures quick and accurate setting of the rip fence. A fine adjustment facility is included.
The rip capacity amounts to 1250mm. The easy-to-read rip scale is perfectly integrated into the saw table. The aluminium rip fence plate can be moved backwards to optimise the feed of workpieces.
| Crosscut fence length | 2600mm |
|---|---|
| Max. saw blade Ø | 400mm |
| Max. cutting height @ 90º | 137mm |
| Rip capacity | 1250mm |
| Saw blade speed | 4000rpm |
| Sliding table length | 2800mm |
| Working height | 890mm |
| Motor | 5.5kW (7.5hp) 3 phase |
| Outrigger table size | 1300mm |
| Weight | 680kg |
Specs shown are for the standard model we offer, but Felder offer a wide variety of options, so talk to us about customising a machine to suit you.
Specifications are subject to change without notice.
K540S Panel Saw
|
K500S Panel Saw
|
|
|---|---|---|
| Motor | 5.5kW (7.5hp) 3 phase | 4kW (5.5hp) 3 phase or 3kW (4hp) single phase |
| Weight | 680kg | 600kg |
| Max. saw blade Ø | 400mm | 315mm |
| Max. cutting height @ 90º | 137mm | 104mm |
| Saw blade speed | 4000rpm | 4800rpm |
| Rip capacity | 1250mm | 1250mm |
| Working height | 890mm | 890mm |
| Sliding table length | 2800mm | 2800mm |
| Crosscut fence length | 2600mm | 2500mm |
| Outrigger table size | 1300mm | 1300mm |
