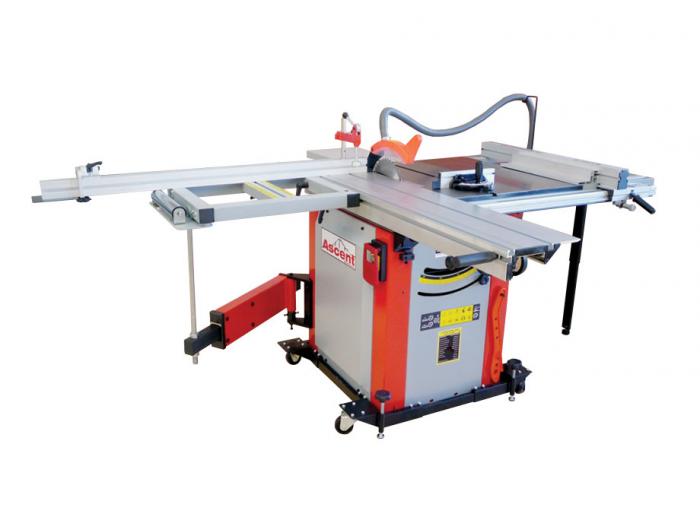

A powerful, sturdy 10" sawbench with European-style sliding table.
- European-style aluminium sliding table - moving right beside the saw blade for spot-on accuracy and professional quality of cut
- Big table surface for easy and safe working
- Heavy cast iron table & saw trunnions to absorb vibration
- Anodised aluminium self-aligning rip fence with fast clamping
- Precision rip fence setting by rack & pinion
- Heavy crosscut fence with clear scale telescopes to 1.5m and swivels +/-45º
- Strong flip stop with micro-adjustment
- Powerful 2.2kW (3hp) motor for heavy rips
Note the wheelkit shown is optional extra. Some assembly required.
$3,608.70 ex GST
$4,150.01 inc GST
Make an enquiry about the Ascent Machinery Ascent Machinery SA250STE Sliding Table Saw
European-style sliding table
The anodised aluminium sliding table runs right against the saw blade for excellent accuracy.

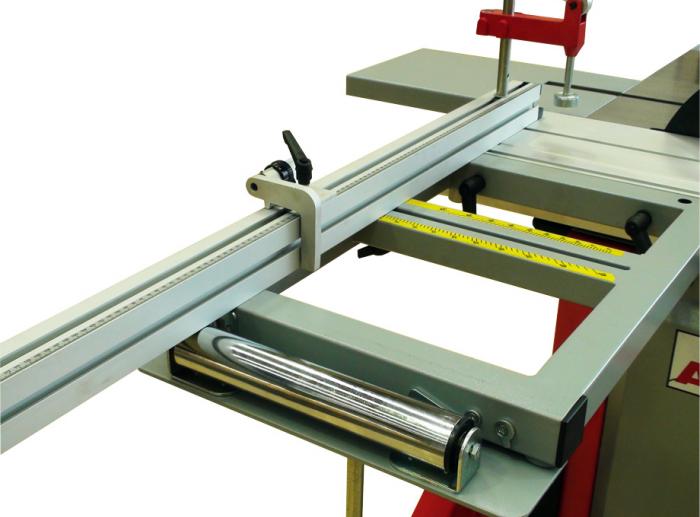

Crosscut table
A heavy-duty crosscut table and aluminium fence, extending out to 2200mm.

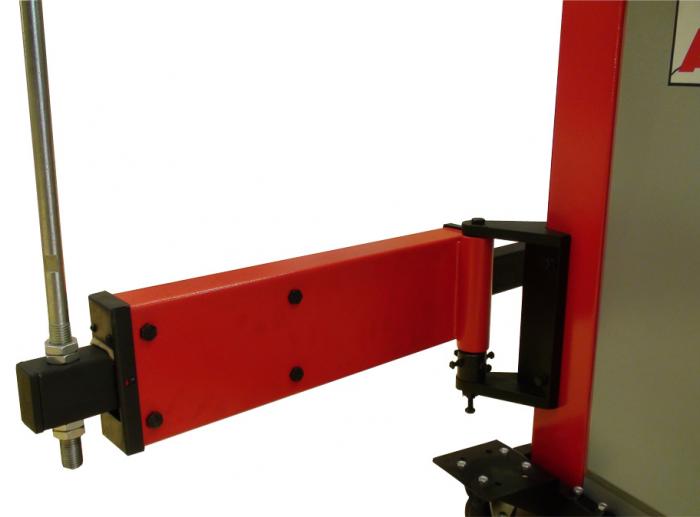

Rock-solid support for your work
A sold swinging arm gives the sliding table rock-solid support, giving you less vibration and a higher quality of cut.
| Saw blade Ø | 254mm (10") x 25.4mm (1") bore |
|---|---|
| Max. cutting height @ 90º | 80mm |
| Max. cutting height @ 45º | 60mm |
| Rip capacity | 810mm |
| Crosscut capacity | 1400mm |
| Saw blade speed | 3000rpm |
| Table size | 650mm wide x 800mm deep |
| Motor | 2.2kW (3hp) with 15amp plug |
| Weight | 230kg |
Specifications are subject to change without notice.
If you're looking for a 250mm/10" saw, below are the specifications for our most popular models.
Ascent Machinery SA250STE Sliding Table Saw
|
K500S Panel Saw
|
K3 Basic Panel Saw
|
|
|---|---|---|---|
| Motor | 2.2kW (3hp) with 15amp plug | 4kW (5.5hp) 3 phase or 3kW (4hp) single phase | 3kW (4hp) single phase |
| Max. cutting height @ 90º | 80mm | 104mm | 103mm |
| Rip capacity | 810mm | 1250mm | 700mm |
| Weight | 230kg | 600kg | 240kg |
| Saw blade speed | 3000rpm | 4800rpm | 4800rpm |
For a bigger cut, take a look at our SA300 range of 300mm/12" saws.
Download the SA250STE brochure >>
