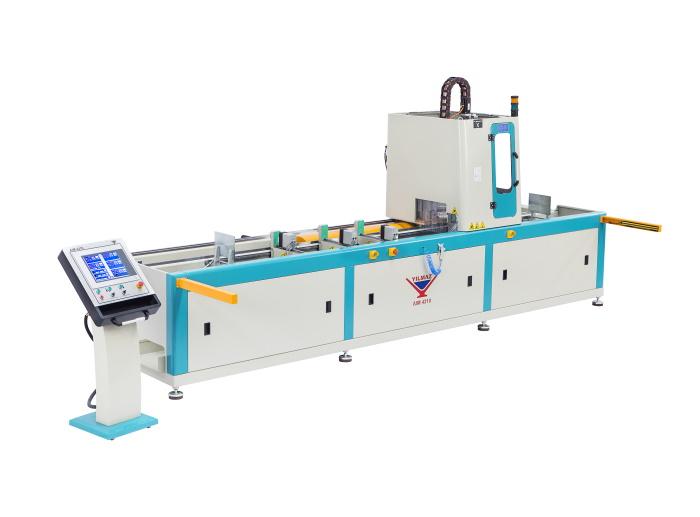

The Yilmaz AIM 4310 CNC will advance efficiency and versatility within your workshop. Designed to machine all kinds of aluminium and PVC profiles, the AIM 4310 comes with special features that will ensure accurate work time after time.

  • Solid steel chassis and gantry which is resistant to temperature changes and warping
  • Servo-motors in all axes in combination with linear guides
  • Unique ability for automatic positioning of the workpiece clamps
  • High-quality and powerful Italian HSD Spindle
  • On-board tool misting lubrication unit with 3 outlets
  • Ability to accept a 4th-axis aggregate and 180mm sawblade
  • 15" LCD touch-screen controller
  • 8-tool magazine with automatic tool change-over
  • Pop-up positioning stops for loading of profiles
  • Central lubrication unit for all axes
  • Laser barrier safety system
  • Air gun
  • Optional ability for tapping (M4 to M8)



Make an enquiry about the Yilmaz AIM 4310 Aluminium CNC

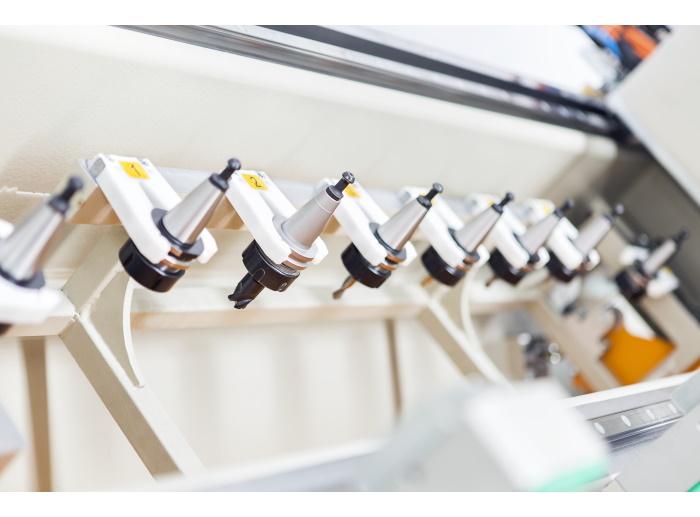

Automatic tool changer for minimal operator input

With an 8 station tool changer there's plenty of tooling flexibility for a wide variety of processing requirements and materials.

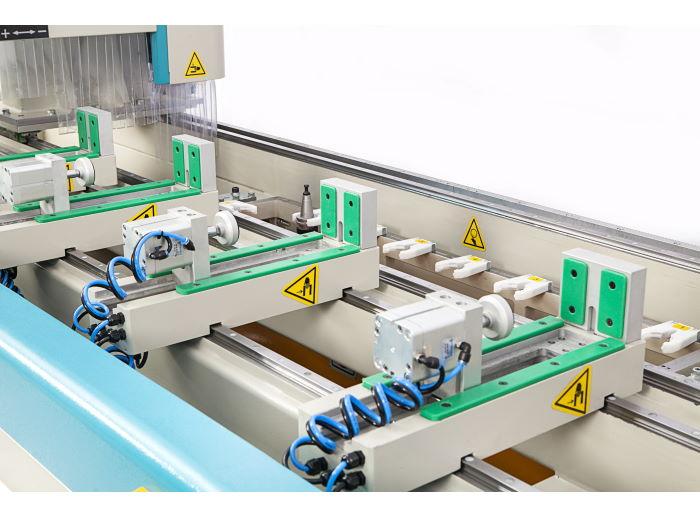

Pneumatic clamps

The 4 pneumatic clamps (option: 6) ensures no slippage of the work-piece during machining for excellent accuracy and quality. As an option, the clamps can be automatically positioned along Linear Guides with the Camprox software.

Dimensions (W x D x H) 158 X 510 X 212cm
Spindle speeds 18,000 rpm
Main spindle 7.5kW HSD
Tool changer 8 station linear
Tool holder clamping ISO 30
X, Y, Z working area 4000 x 350 x 335 mm
Horizontal pneumatic clamps 4
Weight 1950 kg

Specifications are subject to change without notice.

AIM 4310 Aluminium CNC
AIM 4310 Aluminium CNC
P104 – 4 Axis CNC Machining Centre
P104 – 4 Axis CNC Machining Centre
Main spindle 7.5kW HSD 5kW (6.7hp)
Spindle speeds 18,000 rpm 20,000rpm
X, Y, Z working area 4000 x 350 x 335 mm 3,450 x 790 x 400mm
Tool changer 8 station linear Automatic 8 tool magazine
Weight 1950 kg 1800kg
Dimensions (W x D x H) 158 X 510 X 212cm 435 x 175 x 214cm



Jacks and Yilmaz provide a range of accessories to suit your manufacturing needs, including:

  • machine stands
  • cutting lubricant to ensure your cutting is accurate and your tooling is kept in the best shape
  • clamp and lubricant sprays to ensure you can process your materials securely and efficiently
  • saw blades - we stock a variety of blades including specialist blades for aluminium



CE Logo

All Yilmaz machines Jack sell meet the requirements for ‘CE’ or European Conformity – the strict standards for safety, public health and consumer protection as required by the European Union.
