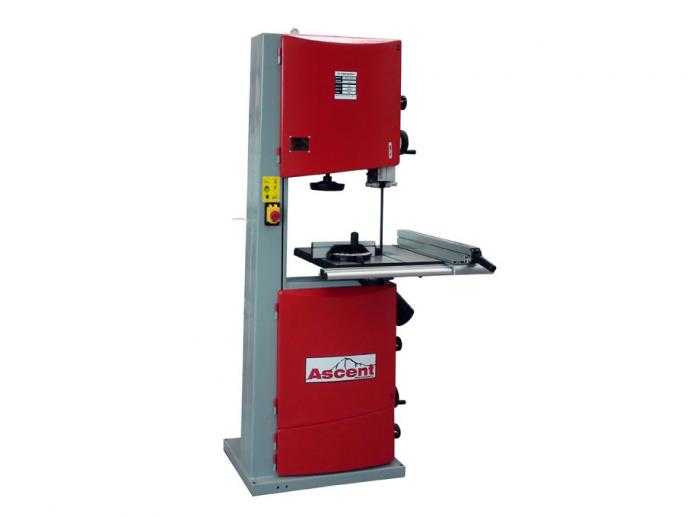

We're pleased to offer the BS range of bandsaws. The BS470 is the largest machine in a range of three, with a wheel diameter of 470mm (18.5"). A heavy, trade specification machine, the BS470 offers plenty of power and performance for your workshop.

  • Two speeds for cutting a variety of materials
  • Powerful 2.2kW (3hp) motor
  • Precision alloy fence with magnification for accurate positioning
  • Euro-style upper and lower blade guides for excellent blade stability
  • Tilting table and mitre gauge
  • Quick release mechanism for blade change
  • Very smooth and quiet running

Some assembly required.



$2,604.35 ex GST $2,995.00 inc GST Make an enquiry

Make an enquiry about the Ascent Machinery BS470 Bandsaw

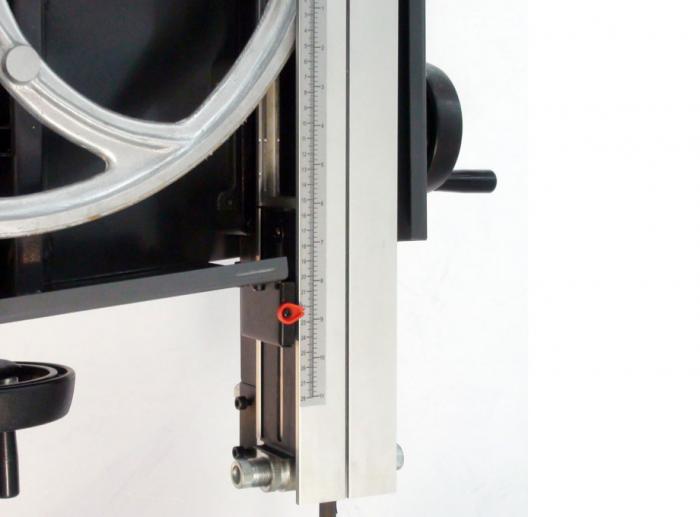

Accurate height adjustment

Height adjustment is via rack and pinion with a height scale, keeping your work accurate.

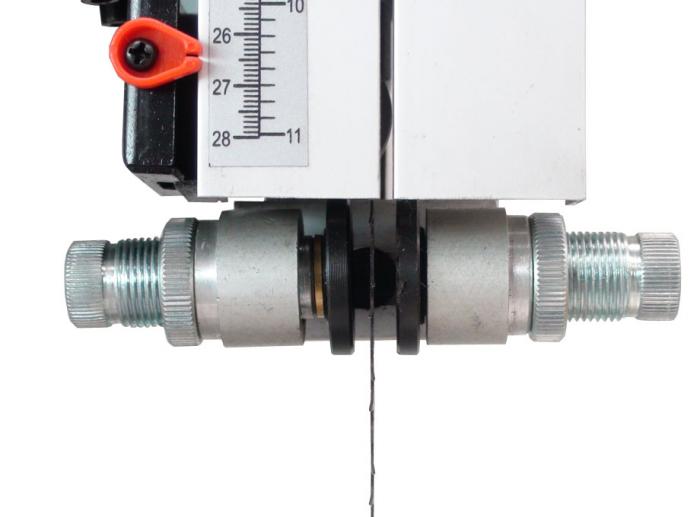

P.A.C. type guide system

European-style upper and lower P.A.C. type guide system ensures constant blade support, even around corners.

Mitre gauge

A mitre gauge gives you complete angle adjustment.

Quick release blade guide

A quick release for the blade is located on the back of the bandsaw.

Blade tension tracking window

A small window allows you to check the blade tension.

Cutting height adjustment is via a large handwheel.

Keep it straight with a rip fence

A smooth running alloy extruded rip fence with magnified read-out.

Safety first

Micro-switches in the top and bottom doors ensure the bandsaw can't run while the doors are open.

Maximum cutting height 280mm
Maximum cutting width 470mm
Table size 480 x 630mm
Working height 1000mm
Motor 2.2kW (3hp) with 15amp plug
Blade 3607mm x 12.5 - 38mm
Table tilt 0 to +45º
Wheel Ø 470mm (18.5")
Dust extraction 100mm
Weight 162kg

Specifications are subject to change without notice.

BS470 Bandsaw
BS470 Bandsaw
BS350 Bandsaw
BS350 Bandsaw
N4400 Bandsaw
N4400 Bandsaw
Motor 2.2kW (3hp) with 15amp plug 1.5kW (2hp) 2.5kW (3.5hp) single phase (3 ph avail)
Table size 480 x 630mm 440 x 540mm 420 x 575mm
Weight 162kg 107kg 170kg
Maximum cutting height 280mm 250mm 310mm
Blade 3607mm x 12.5 - 38mm 2750mm x 6 - 25.4mm 3976mm x 6 - 25mm
Table tilt 0 to +45º 0 to +45º -10 to +45°
Wheel Ø 470mm (18.5") 350mm (14") 440mm
Dust extraction 100mm 100mm 120mm
Maximum cutting width 470mm 345mm 420mm

Ascent Machinery is exclusive to Jacks
